Connections

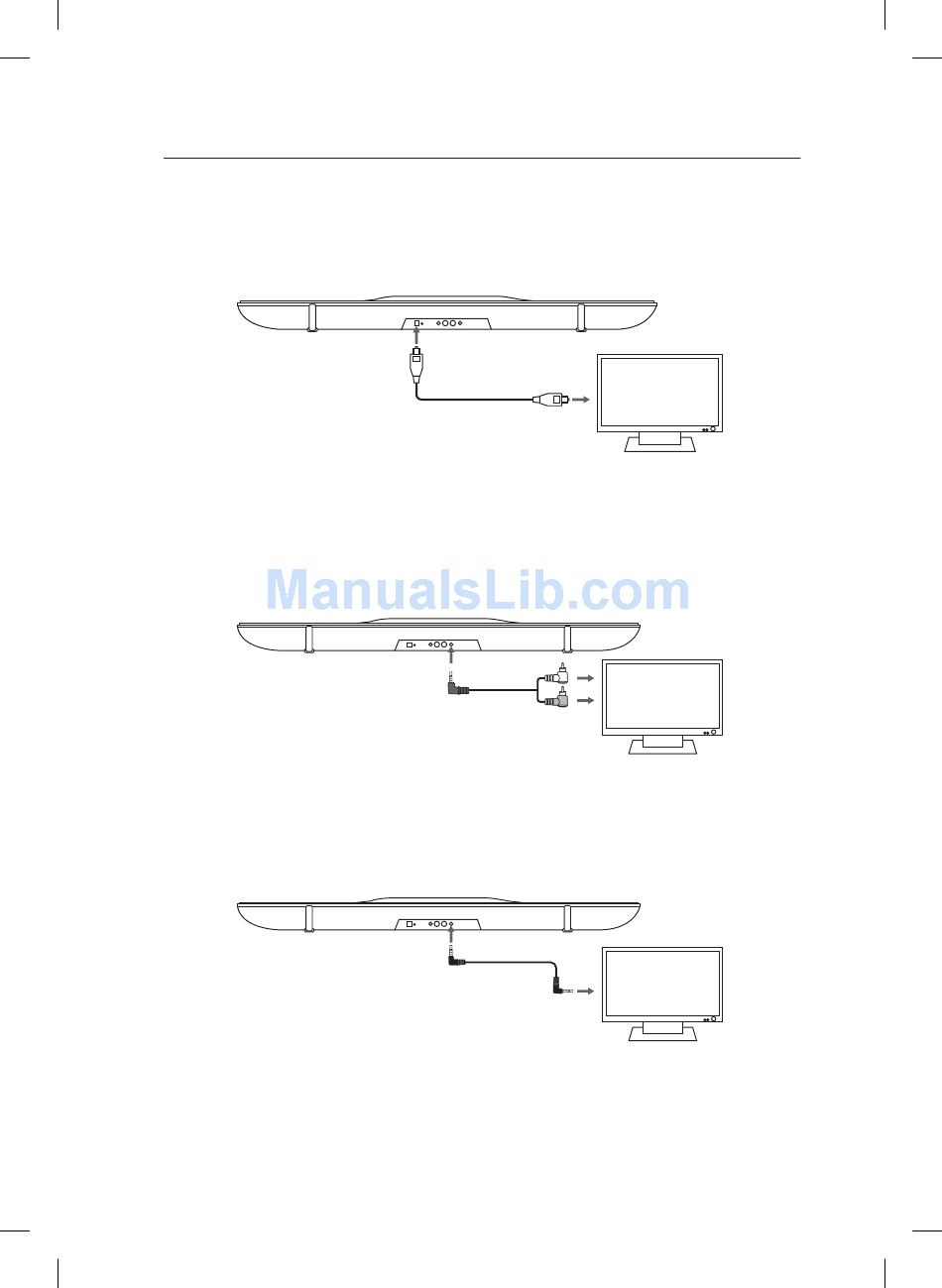

Use an optical cable (not included) to connect the TV's OPTICAL OUT socket to the

soundbar's D1 OPTICAL socket.

Use a 3.5mm to RCA stereo audio cable (included) to connect the TV's audio output sockets

to the soundbar's AUX IN socket.

3.5mm to RCA stereo audio cable

Use a 3.5mm to 3.5mm stereo audio cable (included) to connect the TV's headphone socket

to the soundbar's AUX IN socket.

For any help concerning set up and use of your TV please call the Customer Helpline: 0345 604 0105

Bottom view of the unit

OPTICAL cable

(not included)

Bottom view of the unit

(included)

Bottom view of the unit

3.5mm to 3.5mm stereo audio cable

(included)
