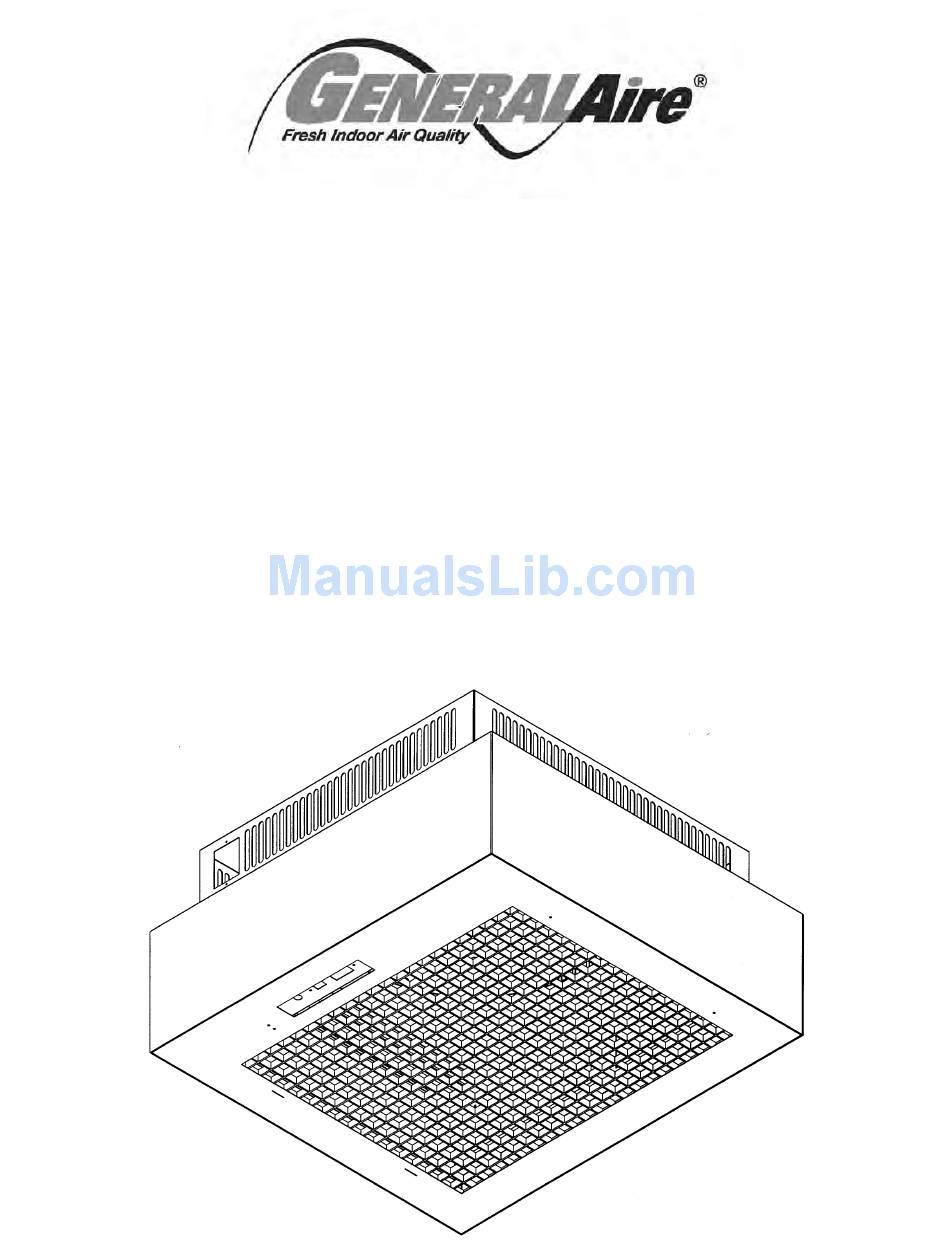

- Page 1 Operation And Maintenance Manual SSCB-15 SERIES CEILING MOUNTED ELECTRONIC AIR CLEANER IMPORTANT: PLEASE READ MANUAL BEFORE INSTALLING, OPERATING, CLEANING OR SERVICING UNIT...
-
Page 2: Table Of Contents
IMPORTANT: Please read entire instructions before Installation and servicing of Electronic Air Cleaners installing the Electronic Air Cleaner. can be hazardous. Only trained and qualified service personnel should install, repair, or service Electronic CONTENTS Air Cleaners. Untrained personnel perform basic SAFETY CONSIDERATIONS maintenance functions of cleaning and replacing filters. -
Page 3: Major Components
approximately 7500 VDC. The collecting plates are alternately grounded and charged at 5000 VDC. The arrow on the cell indicates the direction of air flow which Cleaner must point up towards the fan motor. creates a circular air Motor & Fan Blade flow pattern which... -
Page 4: Wiring
give the unit the necessary stability when removing The unit should be checked on a regular basis to determine the frequency of cleaning required in each the cells or servicing the unit. location and a cleaning schedule established. Wiring Cleaning WARNING CAUTION Electrical shock can cause injury or death. -
Page 5: Service
used as directed, DAX will not harm aluminum or steel. switch. Any problem arising out of the use of another cleaning 5. Check terminals HV1 and HV2 on the power board to agent will void the warranty. Do not use detergents that determine if voltage is present. -
Page 6: Testing The 24 V Transformer
8. Return power to Air Cleaner. Test power board. the input power to the unit is low. Voltage on power board may be too high when the installation area is too dry or 9. Replace power box cover panel and close cover. too hot or the input power to the unit is high. -
Page 7: Testing Cell With An Ohmmeter
interlock switch. 7. Return power to Air Cleaner. 4. Place a plastic handled screwdriver into the direction 8. Test cell for proper operation. arrow slot. Do not apply excessive force. 5. There should be an initial snap when the plates are Replacing A Fan Motor shorted, then no sound. -
Page 8: Electrical Schematic
Fig. 5 — Electrical Schematic - 120 Volt Fig. 6 — Electrical Schematic - With Wired Remote - 120 Volt... -
Page 9: Troubleshooting Guide
Table 1 — TROUBLESHOOTING GUIDE PROBLEM PROBABLE CAUSE REMEDY Unit does not function Main breaker or fuse. Check breaker or fuse and reset or replace if necessary. correctly. Power switch Remote switch off. If equipped with a remote switch ensure it is turned on. ON and performance indicator light and Wiring or plug improperly connected. -
Page 10: Exploded View
Fig. 7 — Exploded View and Parts List Description Part Number Description Part Number Fan Motor EACCM13-01 12a Power Switch (Black) EACCM13-12G Fan Blade EACCM13-02 3-Position Slide Switch (Gray) EACCM13-13W Copper Contact EAC14-08 13a 3-Position Slide Switch (Black) EACCM13-13G Fibreboard (with 2 Copper Contacts) EACCM13-04 Power Board Fibreboard EACCM13-14... -
Page 11: Technical Data And Dimensions
Dimensions Length 29.5 in 75.0 cm Width 27.0 in 68.6 cm Height 14.5 in 37.0 cm Weight 95.0 lbs 43.0 kg Input Voltage 120 V 60 Hz Power 350 Watts Consumption (max) Air Flow High 1300 CFM 2210 m Medium 1050 CFM 1785 m 750 CFM... -
Page 12: Warranty
ELECTRONIC AIR CLEANER LIMITED ONE YEAR WARRANTY Electronic Air Cleaners, if properly registered by the return of the attached warranty registration to General Filters, Inc., are warranted to the consumer against defects in materials and workmanship for a period of one year from the date of installation, so long as the product has been installed and operated in accordance with all appropriate manuals and wiring diagrams.
