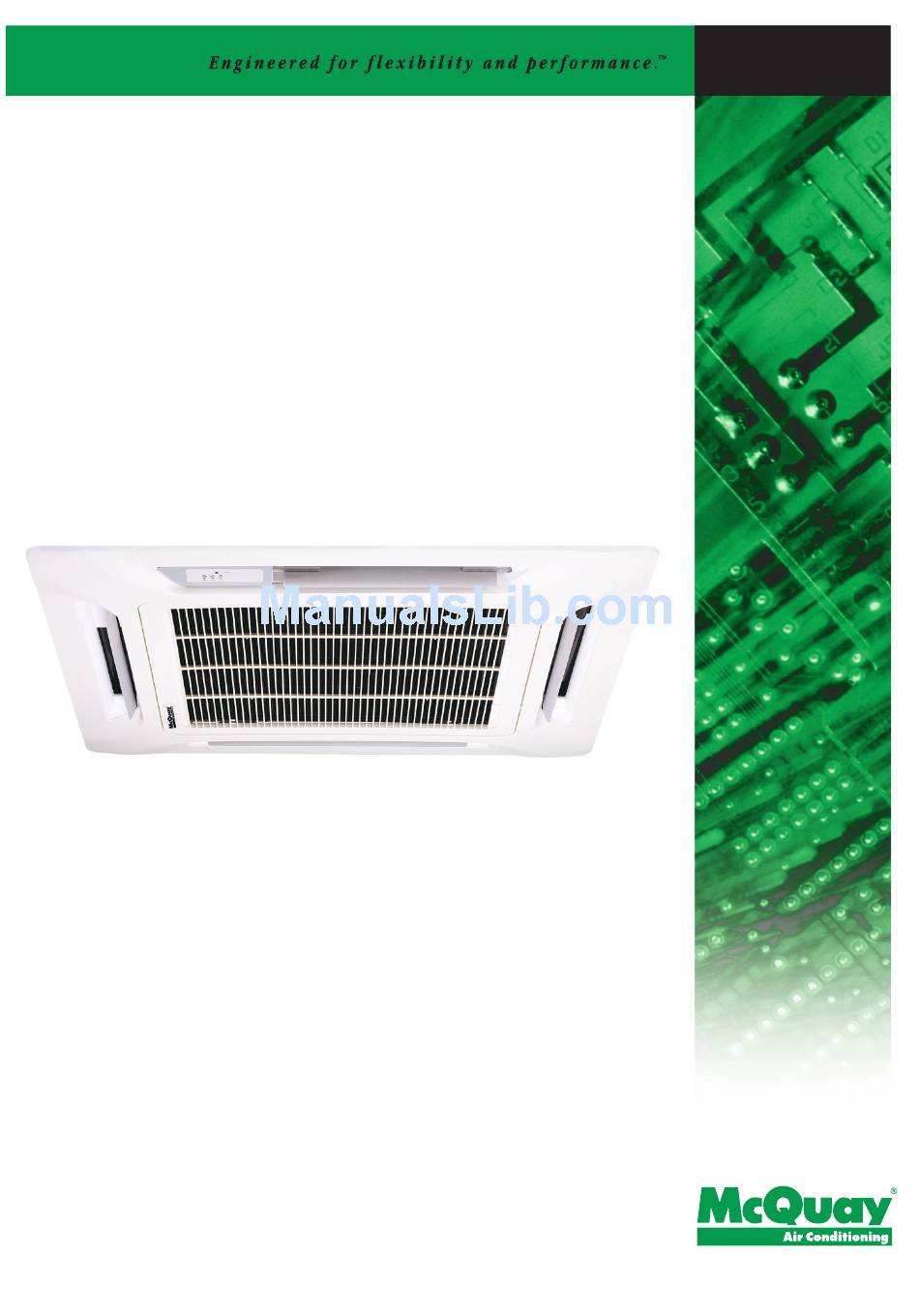

- Page 1 MCK - 2004 Ceiling Cassette Split Systems Models: MCK 020A/AR MCK 015B/BR MCK 025A/AR MCK 020B/BR MCK 030A/AR MCK 025B/BR MCK 040A/AR MCK 030B/BR MCK 050A/AR MCK 010C/CR MCK 015C/CR MCK 020C/CR...
-
Page 2: Table Of Contents
"McQuay" is a registered trademark of McQuay International. All rights reserved throughout the world. 2003 McQuay International "Bulletin illustrations cover the general appearance of McQuay International products at the time of publication and we reserve the right to make changes in design and construction at any time without notice."... -
Page 3: Special Features
Special Features Ultra Slim New Stylish Design Profile This unit is contemporary in design and match even the most up to date interior decor. The slim, (only 20 mm for C-series, only 22 mm for B-series and only 28 mm for A-series) and round profile front panel of this unit adds a touch of elegance to every decor. -
Page 4: Specifications
Specifications CEILING CASSETTE A SERIES (COOLING ONLY) MCK030A MCK040A MODEL INDOOR UNIT MCK020A MCK025A MCK050A MLC020B MLC025B MLC030B MLC030C MLC035C MLC040C MLC050C OUTDOOR UNIT NOMINAL kcal/h 5290 6300 6800 7560 8320 10080 12600 COOLING 6150 7330 7910 8790 9670 11720 14650 CAPACITY Btu/h... - Page 5 CEILING CASSETTE A SERIES (HEAT PUMP) MCK020AR MCK025AR MCK030AR MCK040AR MCK050AR MODEL INDOOR UNIT OUTDOOR UNIT MLC020BR MLC025BR MLC030BR MLC030CR MLC035CR MLC040CR MLC050CR 5040 6300 6550 7560 8820 10080 12100 NOMINAL kcal/h COOLING 5860 7330 7620 8790 10260 11720 14070 CAPACITY Btu/h 20000...
- Page 6 CEILING CASSETTE A SERIES (COOLING ONLY – R407C) MODEL INDOOR UNIT MCK020A MCK025A MCK030A MCK040A MCK050A OUTDOOR UNIT M4LC020B M4LC025B M4LC030C M4LC040C M4LC050C NOMINAL kcal/h 4610 5290 7560 9580 12100 COOLING 5360 6160 8790 11130 14070 CAPACITY Btu/h 18300 21000 30000 38000 48000...
- Page 7 CEILING CASSETTE A SERIES (HEAT PUMP – R407C) MCK020AR MCK025AR MCK030AR MCK040AR MCK050AR MODEL INDOOR UNIT OUTDOOR UNIT M4LC020BR M4LC025BR M4LC030CR M4LC040CR M4LC050CR NOMINAL kcal/h 4540 5170 7310 9830 12100 COOLING 5270 6010 8500 11430 14070 CAPACITY Btu/h 18000 20500 29000 39000 48000...
- Page 8 CEILING CASSETTE B SERIES (COOLING ONLY) MODEL INDOOR UNIT MCK015B MCK020B MCK025B MCK030B OUTDOOR UNIT MLC015B MLC020B MLC025B MLC030B MLC030C NOMINAL kcal/h 3150 4790 6050 6800 7560 COOLING 3660 5570 7030 7910 8792 CAPACITY Btu/h 12500 19000 24000 27000 30000 NOMINAL TOTAL POWER - 1∅...
- Page 9 CEILING CASSETTE B SERIES (HEAT PUMP) MODEL INDOOR UNIT MCK015BR MCK020BR MCK025BR MCK030BR MLC015BR MLC020BR MLC025BR MLC030BR MLC030CR OUTDOOR UNIT 3100 4790 6050 6550 7060 NOMINAL kcal/h COOLING 3600 5570 7030 7620 8210 CAPACITY Btu/h 12300 19000 24000 26000 28000 NOMINAL kcal/h 3020...
- Page 10 CEILING CASSETTE B SERIES (COOLING ONLY – R407C) MODEL INDOOR UNIT MCK015B MCK020B MCK025B MCK030B OUTDOOR UNIT M4LC015B M4LC020B M4LC025B M4LC030C NOMINAL kcal/h 2900 4540 5540 6800 3370 5280 6450 7910 COOLING CAPACITY Btu/h 11500 18000 22000 27000 NOMINAL TOTAL POWER - 1∅ [ 3∅ ] 1500 2440 [ 2100 ] 2900 [ 2720 ]...
- Page 11 CEILING CASSETTE B SERIES (HEAT PUMP – R407C) MODEL INDOOR UNIT MCK015BR MCK020BR MCK025BR MCK030BR OUTDOOR UNIT M4LC015BR M4LC020BR M4LC025BR M4LC030CR 2900 4540 5540 6800 NOMINAL kcal/h COOLING 3370 5280 6450 7910 CAPACITY Btu/h 11500 18000 22000 27000 NOMINAL kcal/h 2770 5040 5540...
- Page 12 CEILING CASSETTE C SERIES (COOLING ONLY) MODEL INDOOR UNIT MCK010C MCK015C MCK020C OUTDOOR UNIT MLC010B MLC015B MLC020B NOMINAL kcal/h 2392 3150 4920 COOLING 2782 3660 5720 CAPACITY Btu/h 9500 12500 19500 NOMINAL TOTAL POWER 1392 2174 3.80 6.20 10.60 NOMINAL TOTAL CURRENT POWER SOURCE V/Ph/Hz 220 - 240 / 1 / 50...
- Page 13 CEILING CASSETTE C SERIES (HEAT PUMP) MODEL INDOOR UNIT MCK010CR MCK015CR MCK020CR OUTDOOR UNIT MLC010BR MLC015BR MLC020BR NOMINAL kcal/h 2390 3150 4540 COOLING 2780 3660 5280 CAPACITY Btu/h 9500 12500 18000 NOMINAL kcal/h 2390 3080 4610 HEATING 2780 3580 5360 CAPACITY Btu/h 9500...
-
Page 14: Noise Level
Noise Level MCK – A/AR Model Speed Overall Noise 1/1 Octave Sound pressure level (dB, ref 20µPa) 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz A (dBA) Criteria High MCK020A/AR Medium High MCK025A/AR Medium High MCK030A/AR Medium High MCK040A/AR Medium High MCK050A/AR Medium MCK –... - Page 15 Model Measuring location MCK020A/AR MCK025A/AR Standard : JIS C 9612 MCK015B/BR MCK020B/BR MCK025B/BR MCK010C/CR MCK015C/CR MCK020C/CR MCK030A/AR MCK040A/AR MCK050A/AR Standard : JIS B 8615 MCK030B/BR...
- Page 16 NC Curves CK20A/AR NC Curves NC-50 NC-45 NC-40 High f an M edium f an NC-35 NC-30 Low fan NC-25 NC-20 1000 2000 4000 8000 Octave-band frequency (Hz) M easured in anecho ic ro o m at 1.4m belo w the facia CK25A/AR NC Curves NC-50 NC-45...
- Page 17 CK30A/AR NC Curves NC-50 NC-45 High f an NC-40 M edium fan NC-35 Low fan NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band frequency (Hz) M easured in anecho ic ro o m at 1.5m belo w the facia CK40A/AR NC Curves NC-50 NC-45 High f an...
- Page 18 CK50A/AR NC Curves NC-50 High fan M edium fan Low f an NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band frequency (Hz) M easured in anecho ic ro o m at 1.5m belo w the facia...
- Page 19 CK15B/BR NC Curves CK20B/BR NC Curves...
- Page 20 CK25B/BR NC Curves CK30B/BR NC Curves...
- Page 21 CK10C/CR NC Curves NC-50 NC-45 NC-40 High Fan NC-35 Medium Fan NC-30 Low Fan NC-25 NC-20 1000 2000 4000 8000 Octave-band frequency (Hz) CK15C/CR NC Curves NC-50 NC-45 NC-40 High Fan NC-35 Medium Fan NC-30 Low Fan NC-25 NC-20 1000 2000 4000 8000...
- Page 22 CK20C/CR NC Curves NC-50 NC-45 High Fan NC-40 Medium Fan NC-35 Low Fan NC-30 NC-25 NC-20 1000 2000 4000 8000 Octave-band frequency (Hz)
-
Page 23: Operating Range
Operating Range Ensure the operating temperature is in allowable range. Cooling only Cooling Caution : HIGH AMBIENT UNIT The use of your air conditioner outside the range of working temperature and humidity can result in serious failure. LOW AMBIENT Indoor temp. (°CWB) Heat pump Heating Cooling... -
Page 24: Refrigerant Circuit
Refrigerant Circuit Model : MCK015B – MLC/ M4LC015B MCK010C – MLC010B MCK020A – MLC/ M4LC020B MCK015C – MLC015B MCK020B – MLC/ M4LC20B MCK020C – MLC020B Model : MCK025A – MLC/ M4LC025B MCK025B – MLC/ M4LC025B MCK030A – MLC030B MCK030B – MLC030B... - Page 25 Model : MCK030A – MLC/ M4LC030C MCK030B – MLC/ M4LC030C MCK040A – MLC035C MCK040A – MLC/ M4LC040C MCK050A – MLC/ M4LC050C Model : MCK015BR – MLC/ M4LC015BR MCK010CR – MLC010CR MCK020AR – MLC/ M4LC020BR MCK015CR – MLC015CR MCK020BR – MLC/ M4LC020BR MCK020CR –...
- Page 26 Model : MCK025AR – MLC/ M4LC025BR MCK025BR – MLC/ M4LC025BR MCK030AR – MLC030BR MCK030BR – MLC030BR Model : MCK030AR – MLC/ M4LC030CR MCK030BR – MLC/ M4LC030CR MCK040AR – MLC035CR MCK040AR – MLC/ M4LC040CR MCK050AR – MLC/ M4LC050CR...
-
Page 27: Performance Table
Performance Table A Series (Cooling Only – R22) Model : MCK020A / MLC020B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 5.669 5.396 5.152 4.907 4.441 4.119 3.963 3.903 3.855 5.669 5.396 5.152 4.907 4.441... - Page 28 Model : MCK030A / MLC030B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 8.385 7.868 7.407 6.946 6.484 5.931 8.385 7.868 7.407 6.946 6.484 5.931 8.828 8.253 7.740 7.227 6.714 6.098 7.984 7.527 7.119 6.712...
- Page 29 A Series (Cooling Only – R407C) Model : MCK020A / M4LC020B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 4.940 4.702 4.489 4.276 3.870 3.590 3.454 3.401 3.359 4.940 4.702 4.489 4.276 3.870 3.590 3.454...
- Page 30 Model : MCK040A / M4LC040C Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 10.697 10.11 9.585 9.061 8.298 7.532 7.246 7.170 7.139 10.116 9.651 9.236 8.821 8.078 7.332 7.053 6.980 6.95 11.264 10.622 10.049 9.476...
- Page 31 B Series (Cooling Only – R22) Model : MCK015B / MLC015B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 3.661 3.438 3.238 3.039 2.840 2.601 3.661 3.438 3.238 3.039 2.840 2.601 3.870 3.617 3.390 3.164...
- Page 32 Model : MCK030B / MLC030B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 6.802 6.553 6.33 6.108 5.885 5.618 6.802 6.553 6.33 6.108 5.885 5.618 7.619 7.206 6.838 6.469 5.658 6.593 6.339 6.113 5.887 5.661...
- Page 33 B Series (Cooling Only – R407C) Model : MCK015B / M4LC015B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 3.368 3.163 2.980 2.796 2.613 2.393 3.368 3.163 2.980 2.796 2.613 2.393 3.561 3.328 3.119 2.911...
- Page 34 A Series (Heating Only – R22) Model : MCK020AR / MLC020BR (HEATING MODE) Indoor DB°C Outdoor WB°C 15.0 17.0 19.0 21.0 24.0 26.7 -9.0 3.691 3.646 3.600 3.555 3.524 3.497 3.691 3.646 3.600 3.555 3.524 3.497 -5.0 4.317 4.279 4.240 4.201 4.143 4.091...
- Page 35 Model : MCK040AR/ MLC040CR (HEATING MODE) Indoor DB°C Outdoor WB°C 15.0 17.0 19.0 21.0 24.0 26.7 -9.0 6.925 6.822 6.720 6.618 6.588 6.561 6.925 6.822 6.720 6.618 6.588 6.561 -5.0 8.200 8.127 8.053 7.980 7.869 7.770 8.200 8.127 8.053 7.980 7.869 7.770 11.708...
- Page 36 A Series (Heating Mode –R407C) Model : MCK020AR/ M4LC020BR (HEATING MODE) Indoor DB°C Outdoor WB°C 15.0 17.0 19.0 21.0 24.0 26.7 -9.0 3.506 3.463 3.420 3.377 3.348 3.322 3.506 3.463 3.420 3.377 3.348 3.322 -5.0 4.102 4.065 4.028 3.991 3.936 3.886 4.102 4.065...
- Page 37 Model : MCK040AR/ M4LC040CR (HEATING MODE) Indoor DB°C Outdoor WB°C 15.0 17.0 19.0 21.0 24.0 26.7 -9.0 6.925 6.822 6.720 6.618 6.588 6.561 6.925 6.822 6.720 6.618 6.588 6.561 -5.0 8.200 8.127 8.053 7.980 7.869 7.770 8.200 8.127 8.053 7.980 7.869 7.770 11.708...
- Page 38 B Series (Heating Mode – R22) Model : MCK015BR/ MLC015BR (HEATING MODE) Indoor DB°C Outdoor WB°C 15.0 17.0 19.0 21.0 24.0 26.7 -9.0 1.843 1.811 1.779 1.747 1.747 1.746 1.843 1.811 1.779 1.747 1.747 1.746 -5.0 2.211 2.191 2.172 2.152 2.122 2.095 2.211...
- Page 39 Model : MCK030BR/ MLC030BR (HEATING MODE) Indoor DB°C Outdoor WB°C 15.0 17.0 19.0 21.0 24.0 26.7 -9.0 4.600 4.562 4.523 4.484 4.418 4.358 4.600 4.562 4.523 4.484 4.418 4.358 -5.0 5.281 5.233 5.186 5.139 5.068 5.004 5.281 5.233 5.186 5.139 5.068 5.004 7.152...
- Page 40 Model : MCK025BR/ M4LC025BR (HEATING MODE) Indoor DB°C Outdoor WB°C 15.0 17.0 19.0 21.0 24.0 26.7 -9.0 3.489 3.457 3.424 3.392 3.347 3.306 3.489 3.457 3.424 3.392 3.347 3.306 -5.0 4.022 3.986 3.950 3.914 3.860 3.811 4.022 3.986 3.950 3.914 3.860 3.811 5.488...
- Page 41 C Series (Cooling Only – R22) Model : MCK010C / MLC010B Indoor DB Indoor WB Capacity Outdoor DB, ° C ° C ° C 19.4 26.7 13.9 2.794 2.622 2.468 2.315 2.161 1.977 2.794 2.622 2.468 2.315 2.161 1.977 2.909 2.729 2.569 2.409...
- Page 42 C Series (Heating Mode – R22) Model : MCK010CR/ MLC010BR (HEATING MODE) Indoor DB°C Outdoor WB°C 15.0 17.0 19.0 21.0 24.0 26.7 -9.0 1.628 1.603 1.578 1.553 1.548 1.543 1.628 1.603 1.578 1.553 1.548 1.543 -5.0 1.933 1.916 1.899 1.881 1.855 1.832 1.933...
-
Page 43: Outlines And Dimensions
Outlines and Dimensions Indoor Unit MCK020/ 025/ 030/ 040/ 050A/AR MCK015/ 020/ 025/ 030B/BR MCK010/ 015/ 020C/CR MODEL MCK-A (All model) MCK-B (All model) MCK-C (All model) Outdoor Unit MLC010B/BR MLC/ M4LC015/ 020/ 025B/BR DIMENSION 010B/ 010BR 740 494 270 266 233 474 348 318 129 482 68,5 015B / 015BR 020B/ 020BR... - Page 44 Outdoor Unit MLC030/ 040/ 050C/CR M4LC030/ 040/ 050C/CR...
-
Page 45: Wiring Diagrams
Wiring Diagrams Indoor Unit (Cooling Only) Model : MCK020/ 025A Outdoor Unit Model : MLC/ M4LC020/ 025B ▲ CN4 I S C O N N E C T E D TO WIRED H A N D S E T ▲▲ CN6 I S C O N N E C T E D TO SENSO R Sc INDICATOR LIG HT OF WIRELESS H A N D S E T REMARK = EITHER CN4 O R CN6 C A N BE CO NNE CTED A T A N Y O NE TIME... - Page 46 Indoor Unit (Cooling Only) Model : MCK030A Outdoor Unit Model : MLC030B...
- Page 47 Indoor Unit (Cooling Only) Model : MCK030A Outdoor Unit Model : MLC / M4LC030C...
- Page 48 Indoor Unit (Cooling Only) Model : MCK040A Outdoor Unit Model : MLC035C...
- Page 49 Indoor Unit (Cooling Only) Model : MCK040/ 050A Outdoor Unit Model : MLC / M4LC040/ 050C...
- Page 50 Indoor Unit (Heat Pump) Model : MCK020/ 025AR Outdoor Unit Model : MLC / M4LC020/ 025BR KEY: FM – FAN MOTOR CM – COMPRESSOR MOTOR 4V - 4 WAY VALVE TH2 – OUTDOOR THERMISTOR - - - - - - FIELD SUPPLY WIRING ▲...
- Page 51 Indoor Unit (Heat Pump) Model : MCK030AR Outdoor Unit Model : MLC030BR...
- Page 52 Indoor Unit (Heat Pump) Model : M CK030AR Outdoor Unit Model : MLC / M4LC030CR...
- Page 53 Indoor Unit (Heat Pump) Model : MCK040AR Outdoor Unit Model : MLC035CR...
- Page 54 Indoor Unit (Heat Pump) Model : MCK040/ 050AR Outdoor Unit Model : MLC/ M4LC040/ 050CR...
- Page 55 Indoor Unit (Cooling Only ) Model : MCK015B Outdoor Unit Model : MLC015B...
- Page 56 Indoor Unit (Cooling Only) Model : MCK020/ 025B Outdoor Unit Model : MLC020/ 025B...
- Page 57 Indoor Unit (Cooling Only ) Model : MCK030B Outdoor Unit Model : MLC030C...
- Page 58 Indoor Unit (Cooling Only ) Model : MCK030B Outdoor Unit Model : MLC030B...
- Page 59 Indoor Unit (Heat Pump) Model : MCK015BR Outdoor Unit Model : MLC015BR...
- Page 60 Indoor Unit (Heat Pump) Model : MCK020/ 025BR Outdoor Unit Model : MLC020/ 025BR...
- Page 61 Indoor Unit (Heat Pump) Model : MCK030BR Outdoor Unit Model : MLC030BR...
- Page 62 Indoor Unit (Heat Pump) Model : MCK030BR Outdoor Unit Model : MLC030CR...
- Page 63 Indoor Unit (Cooling Only) Model : MCK010/ 015C Outdoor Unit Model : MLC010/ 015B...
- Page 64 Indoor Unit (Cooling Only) Model : MCK020C Outdoor Unit Model : MLC020B...
- Page 65 Attachment 60HZ Outdoor Unit Model : MLC030C (Cooling Only) 60HZ / 1 Phase / 208 ~230V Model : MLC040/ 050C (Cooling Only) 60HZ / 3 Phase / 2 00 ~230V Model : MLC040/ 050CR (Cooling Only) 60HZ / 3 Phase / 200 ~230V...
- Page 66 3 Phase for 2 & 3 HP Outdoor Unit Model : MLC/ M4LC020/ 025B (Cooling Only) 3 Phase / 50 HZ / 380 ~ 415V Model : MLC/ M4LC030C (Cooling Only) 3 Phase / 50 HZ / 380 ~ 415V...
- Page 67 Model : MLC/ M4LC020/ 025BR (Heat Pump) 3 Phase / 50HZ / 380 ~ 415V Model : MLC/ M4LC030CR (Heat Pump) 3 Phase / 5 0HZ / 380 ~ 415V...
- Page 68 High Ambient Unit Outdoor Unit Model : MLC020/ 025B (Cooling Only) 50HZ / 1 Phase / 220 – 240V, 60HZ / 1 Phase / 208 – 230V Outdoor Unit Model : MLC030C (COOLING ONLY) 50HZ / 1 Phase / 220 – 240V, 60HZ / 1 Phase / 208 –...
- Page 69 Outdoor Unit Model : MLC020/ 025BR (Heat Pump) 50HZ / 1 Phase / 220 – 240V Outdoor Unit Model : MLC030CR 50HZ / 1 Phase / 220 – 240V, 60 HZ / 1 Phase / 220V utdoor Unit Model : MLC04 0/ 050CR 50HZ / 3 Phase / 380 –...
- Page 70 Low Ambient Unit (Optional) Outdoor Unit Model : MLC010B / 015B (50HZ) Outdoor Unit Model : MLC020B / 025B (50HZ)
- Page 71 Low Ambient Unit Outdoor Unit Model : MLC010/ 015BR 50HZ / 1 Phase / 220 – 240V Outdoor Unit Model : MLC020BR 50HZ / 1 Phase / 220 – 240V Outdoor Unit Model : MLC025BR 50HZ / 1 Phase / 220 – 240V...
- Page 72 Single Phase for 4HP Outdoor Unit Model : MLC/ M4LC040C (Cooling Only) Model : MLC/ M4LC040CR (Heat Pump)
-
Page 73: Special Precautions For R407C
Special Precautions for R407C Special precautions when dealing with refrigerant R407C unit 1) What is New Refrigerant R407C? R407C is a zeotropic refrigerant mixture which has zero ozone depletion potential and thus conformed to the Montreal Protocol regulation. It requires Polyol ester oil (POE) oil for its compressor's lubricant. Its refrigerant capacity and performance are about the same as the refrigerant R22. - Page 74 c) Ensure that the compressor is not exposed to open air for more than the recommended time specified by its manufacturer (typically less than 10 minutes). Removed the seal-plugs only when the compressor is about to be brazed. d) The system should be thoroughly vacuumed to 1.0 Pa (-700mmHg) or lower. This vacuuming level is more stringent than R22 system so as to ensure no incompressible gas and moisture in the system.
-
Page 75: Installation Of Indoor Unit
Installation of Indoor Unit Caution : Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them. Preliminary Site Survey • Electrical supply and installation is to conform to local authority's (e.g. National Electrical Board) codes and regulations. •... -
Page 76: Drain Piping Work
Unit Hanging Indoor Unit Ceiling Board 35.0 mm (MCK-A/B) 5.0 mm 30.0 MM (MCK-C) MCK-A/B/C • Confirm the pitch of the hanging rod is 790.0mm X 620.5mm (MCK-A) / 600.0mm x 582.0 mm (MCK-B)/ 538.0 mm x 448.0 mm (MCK-C). •... -
Page 77: Panel Installation
Panel Installation • The front panel can only be fitted in one direction, follow the piping direction. (Follow piping arrow sticker on front panel). • Be sure to remove the installation template before installing the front panel. • Open the air intake grille by pulling back the catchers and remove it together with filter from panel. •... -
Page 78: Installation Of Outdoor Unit
Air Intake Grille Installation • Before installed the air intake grille, make sure the air filter is clip properly to the air FRAME intake grille. (OPTIONAL ITEM) • Install the air intake grille together with the air filter to the front panel. IONIZER FILTER (OPTIONAL ITEM) •... -
Page 79: Refrigerant Piping Work
Refrigerant Piping Work Refrigerant piping is important in particular. Refrigeration cycle of the split air conditioner is realized by the perfect piping work. Piping Length and Elevation If the piping is too long, both the capacity and reliability of the unit will drop. As the number of bends increase, resistance to flow of refrigerant increases, thus lowering the cooling capacity and as a result overloading the compressor which may cause the compressor to become defective. - Page 80 Cooling only INDOOR MCK020A MCK025A MCK030A MCK040A MCK050A MODEL OUTDOOR MLC020B MLC025B MLC030C MLC040C MLC050C L <= 5 m 0.250 0.100 0.400 L = 7 m 0.280 0.176 0.600 0.100 0.100 L = 10 m 0.325 0.290 0.650 0.250 0.250 L = 15 m 0.400 0.480...
-
Page 81: Wiring
Diagram shows typical charging method CAUTION FOR R407C Avoid prolong exposure of an opened compressor, or the internal part of refrigerant piping to moist air. The POE oil in the compressor and piping can absorb moisture from air. Electrical Connections Wiring Wiring regulations on wire diameters differ from country to country. -
Page 82: Indicator Lights
Indicator Lights Wireless Remote Control (Universal Board) Cooling : LED Indicator Light Display Heatpump : LED Indicator Light Display POWER SLEEP HEAT TIMER POWER TIMER Operation / Faulty Indication POWER TIMER SLEEP HEAT Timer on Sleep mode on Heat mode Frost prevention mode Continuously Compressor overload... -
Page 83: Accessory Parts
Accessory Parts Fresh Air Intake for MCK-A Model Short Duct Specification • The indoor unit is provided with air discharge and air intake "knock-out". hole for duct connection. However the connection of the short duct for air discharge is possible on only one side. •... - Page 84 Fresh Air Intake for MCK-C Unit Take off the panel from the indoor unit. Figure 1 Remove the PE foam from the drain pan and another one on the unit. Remove pre-punched panel on the CKC unit with a screwdriver. Then, fix the fresh air kit (refer to parts list) to the hole.
-
Page 85: Overall Checking
Sealing Material • It is possible to seal one of the four air discharge outlet (sealing two or more air discharge outlet could cause a malfunction). • Remove the front panel and inserting the seal material into the air discharge outlet at the indoor unit to seal the air outlet. -
Page 86: Remote Control Operation Guide
Remote Control Operation Guide G6 Remote Controller TEMPERATURE SETTING FAN SPEED AND SIGNAL TRANSMISSION VENTILATION MODE INDICATION • Set the desire room SELECTION • Blink to confirm the temperature. Press the button until last setting has been • Press button to increase the desired fan speed is send to the unit. - Page 87 SENSOR ON/OFF ON/OFF AUTO COOL HIGH TEMP MODE TEMP HEAT SWING SLEEP TIMER SWING SLEEP TIMER MODE AC-5300 (Optional) 1. “ON/OFF” switch 6. “Sleep” mode • Press to start the air conditioner unit. • Press button to activate the sleep function. •...
-
Page 88: Temperature Setting
G7 Remote Controller .Transmission source Signal Transmission • The source where the signal will be indication transmitted. • Blink to confirm the last setting has been send to the unit. Temperature setting On/Off Button • To set the desired room •... -
Page 89: Servicing And Maintenance
Servicing and Maintenance Warning: Disconnect from main supply before servicing the air conditioner. The unit is designed to give long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention. Components Maintenance Procedure Recommended Schedule... -
Page 90: Pre Start Up Maintenance
Pre Start up Maintenance After Extended Shutdown • Inspect thoroughly and clean indoor and outdoor units. • Clean or replace air filter. • Clean condense drain line. • Clean clogged indoor and outdoor coils. • Check fan imbalance before operation. •... -
Page 91: Parts List
Parts List Unit – MCK – A/AR PART S DESCRIPTION PARTS DESCRIPTION BASE HEXAGON BOLT FAN MOTOR DRAIN HOSE FAN MOTOR BUSH LEVEL SWITCH PLAIN WASHER COIL SUPPORT FAN MOTOR WASHER PARTITION BOTTOM COUPLING SIDE PANEL FRO TURBO FAN VALVE PLATE TOP COUPLING DRAIN CONNECTOR FLAT WASHER... - Page 92 Panel ( Wireless Remote Control ) - MCK – A/AR PART DESCRIPTION PART DESCRIPTION FRONT PANEL SWING MOTOR BRACKET RECEIVER BRACKET PANEL COVER DISCHARGE HOUSING A FIX PLATE METAL LOUVER A AIR INTAKE GRILLE DISCHARGE HOUSING B GRILLE LOCK METAL LOUVER B GRILLE LOCK BRACKET DISCHARGE HOUSING D IONIZER FILTER FRAME...
- Page 93 Panel (Wired Remote Control) - MCK – A/AR PART DESCRIPTION PART DESCRIPTION FRONT PANEL SWING MOTOR AIR FILTER SWING MOTOR BRACKET DISCHARGE HOUSING A PANEL COVER METAL LOUVER A FIX PLATE DISCHARGE HOUSING C AIR INTAKE GRILLE AIR SWING CAP GRILLE LOCK DISCHARGE HOUSING D GRILLE LOCK BRACKET...
- Page 94 Unit - MCK – B/BR PART DESCRIPTION PART DESCRIPTION DRAIN PUMP HOLDER GRILLE SHORT FAN MOTOR DRAIN PAN PLATE, WIRE COIL HOLDER HANGER BRACKET A COIL ASSY ASSY, VALVE PLATE BOTTOM TURBO FAN ASSY, VALVE PLATE TOP ASSY PANEL A ASSY PANEL B BUSH, FAN MOTOR HANGER BRACKET B...
- Page 95 Panel - MCK – B/BR PART DESCRIPTION PART DESCRIPTION FRAME INTAKE GRILLE RECEIVER BRACKET GRILLE LOCK LOUVER, SHORT FILTER NET LOUVER RECEIVER COVER LOUVER HOLDER LED DISPLAY BOARD LOUVER CLIP LCD HANDSET PLATE, FIX...
- Page 96 Model : MLC/ M4LC020/ 025B/BR MLC030B/BR PART DESCRIPTION PART DESCRIPTION BACK PANEL TOP PANEL BASE PAN COIL ASSY CAPILLARY TUBE MOTOR MOUNTING BRACKET PARTITION FAN MOTOR TERMINAL BOX PANEL RING WASHER SIDE PANEL FAN BLADE ACCESS PANEL SQUARE WASHER PLATE, FLARE VALVE HEX NUT FLARE VALVE BLACK LABEL...
- Page 97 Model : MLC/ M4LC030/ 040/ 050/ 061 C/CR, M4LC060C MLC035C/CR PART DESCRIPTION PART DESCRIPTION BASE PAN MOTOR BRACKET ASSY FLARE VALVE SIDE PANEL LEFT FLARE VALVE FAN MOTOR PARTITION FAN BLADE COMPRESSOR FRONT PANEL ASSY ACCESS PANEL TERMINAL BOX ASSY ACCUMULATOR PLATE, FLARE VALVE BACK PANEL...
- Page 98 Model : MCK010C/CR MCK015C/CR MCK020C/CR PART DESCRIPTION PART DESCRIPTION ASSY. BASE BUSH, DRAIN PUMP ASSY. CASING ASSY. DRAIN PUMP SUPPORT BUCKET ASSY. COIL ASSY., ENDPLATE SUPPORT COVER, FAN CLIP, COIL SENSOR (6mm) BLOWER WHEEL, TURBO FAN FX330 TU YAMAHA TUBE, COIL SENSOR PLATE, WIRE BRACKET, COIL MOTOR, ACK20C-501 HONG LU...
- Page 99 Panel : MCK010/ 015/ 020C/CR PART DESCRIPTION PART DESCRIPTION FRAME LINKAGE, COVER MOTOR INTAKE GRILLE ASSY, BRACKET RECEIVER (LED/SLM) FILTER AIR SWING MOTOR ASSY GRILLE LOCK CRANK CONNECTOR DISCHARGE, FOAM LOUVER HOLDER DISCHARGE, FOAM LED CRANK CROSS DISCHARGE, FOAM SHORT INSULATION LONG LOUVER INSULATION SHORT...
- Page 100 Fresh Air Kit for MCK-C Models...
