5110947/01
OWNER GUIDE

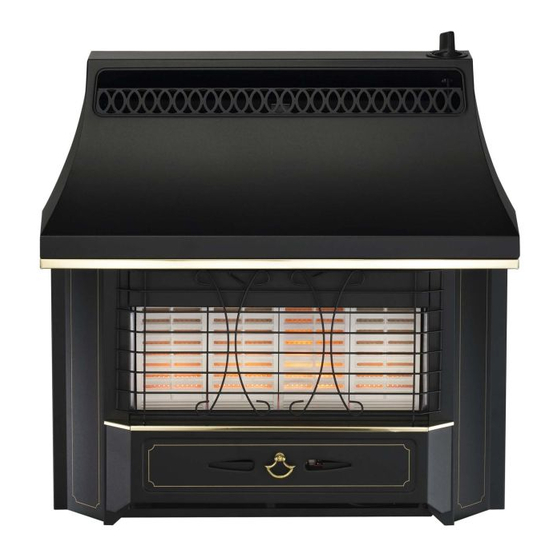

CHURCHILL II
Radiant / Convector Gas Fire
Model 347
(G. C. Number 32-032-62)
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE) ONLY.
Manufactured exclusively for British Gas & Scottish Gas by Valor Heating
For Service Phone 0845 950 0400
owner
This guide to be left with the
© Baxi Heating U.K. Ltd.
Advertisement
Table of Contents
Related Manuals for Baxi churchill II 347
Summary of Contents for Baxi churchill II 347
- Page 1 THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE) ONLY. Manufactured exclusively for British Gas & Scottish Gas by Valor Heating For Service Phone 0845 950 0400 owner This guide to be left with the © Baxi Heating U.K. Ltd.
- Page 2 OWNER GUIDE Safety First. This gas fire is CE Approved and designed to meet the appropriate British Standards and Safety Marks. Quality and Excellence. This fire has been manufactured to the highest standards of quality and excellence and was manufactured under a BS EN ISO 9001 quality system accepted by the British Standards Institute.
- Page 3 OWNER GUIDE LIST OF CONTENTS Section Page SAFETY APPLIANCE DIMENSIONS GAS CONSUMPTION OPERATING YOUR FIRE CLEANING YOUR FIRE REPLACING THE RADIANTS MAINTENANCE This gas fire is designed to meet the most stringent quality, performance and safety requirements to provide you with many years’ trouble-free service. This guide aims to improve your understanding and appreciation of your gas fire by providing simple and informative instructions to ensure that you benefit from the excellent performance and features it has to offer.
- Page 4 OWNER GUIDE Graph 1. Shelf clearances Do provide a suitable guard that complies with BS 8423 for the protection of young children, the elderly and the infirm. Such a guard is also recommended for the protectio of pet animals Although this fire conforms to all the applicable standards, it is a heating appliance and certain parts of its surface will become hot).
-
Page 5: Appliance Dimensions
OWNER GUIDE APPLIANCE DIMENSIONS Figure 1 Dimensions and clearances GAS CONSUMPTION Has a maximum natural gas input of 5.6kW (Gross) Has a maximum natural gas output of 4.0kW Has a minimum natural gas input of 1.57kW (Gross) Has a minimum natural gas output of 1.0kW Page 5... -
Page 6: Operating Your Fire
OWNER GUIDE OPERATING YOUR FIRE PLEASE NOTE When operating your fire for the first time, some vapours may be given off which may cause a slight odour and could possibly set off any smoke alarms in the immediate vicinity. These vapours are quite normal with new appliances. They are totally harmless and will disappear after a few hours use. - Page 7 OWNER GUIDE The control knob can then be set to your preferred heat level. The settings are: Control Knob Radiants Condition Position Centre radiants on low. Outer radiants off. (The right hand centre radiant will glow slightly more than than the left hand centre radiant due to the pilot flame) Centre radiants fully on.
-
Page 8: Cleaning Your Fire
OWNER GUIDE CLEANING YOUR FIRE Turn the fire off and allow it to cool before attempting any cleaning. Normally the fire will only need dusting. The bright metal trims may be cleaned with a damp cloth and dried with a soft duster. Obstinate marks can be removed from the guard and trims using soapy water. -
Page 9: Maintenance
OWNER GUIDE channel at the front of the radiant box. Replace the dress guard. Locate the bottom of the dress guard in the two holes in the bottom panel apron. Push the guard back so that the two spring projections at the top of the guard engage in the slots under the front decorative canopy.
