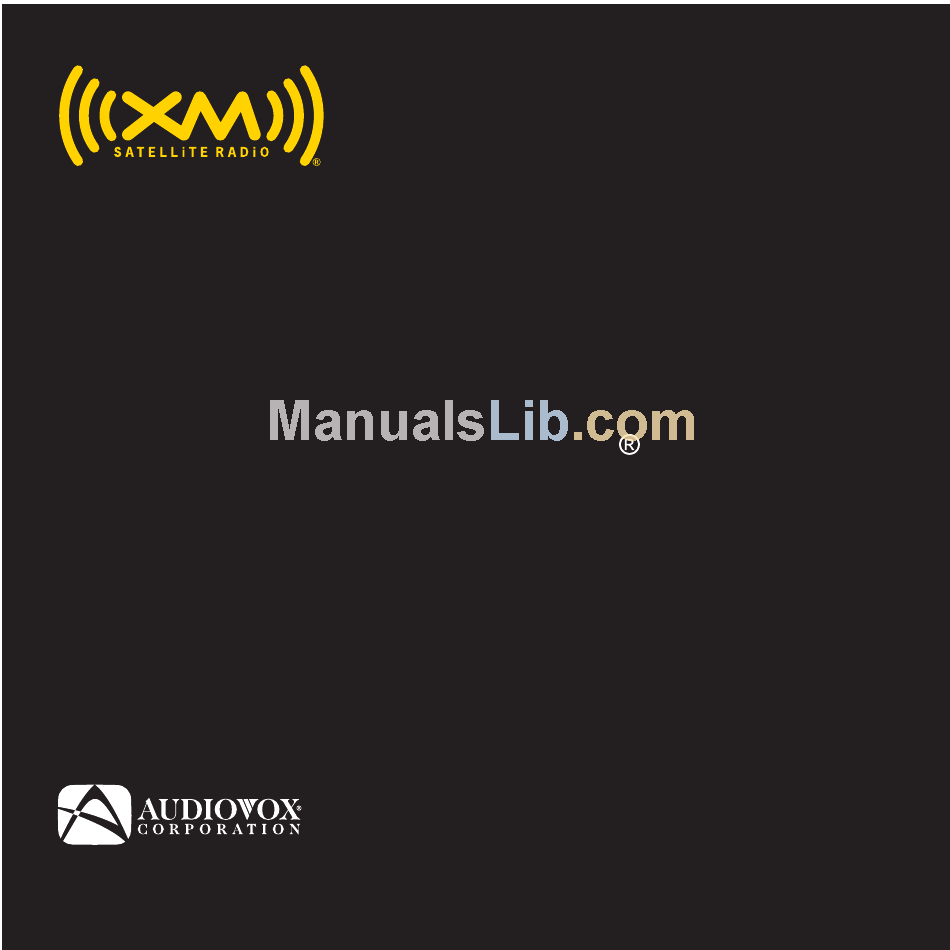

- Page 1 CommanderMT System installation guide XMRVRFM002...
-
Page 2: Table Of Contents
T T T T T able of Contents able of Contents able of Contents able of Contents able of Contents Table of Contents ... 2 Congratulations ... 3 FCC Information ... 4 Cautions and Warnings ... 5 CommanderMT Receiver Kit Components ... 6 Installation/Wiring Precautions ... -
Page 3: Congratulations
Congratulations Congratulations Congratulations Congratulations Congratulations Thank you for purchasing the Audiovox CommanderMT XM System. You are one step closer to experiencing the latest innovation in XM Satellite Radio. XM ® Satellite Radio will revolutionize your vehicle or in-home entertainment. ®... -
Page 4: Fcc Information
FCC Information FCC Information FCC Information FCC Information FCC Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful in terference in a residential installation. -
Page 5: Cautions And Warnings
Cautions and Warnings Cautions and Warnings Cautions and Warnings Cautions and Warnings Cautions and Warnings 1. Do not install the CommanderMT Display Controller in a position that hinders your view through the windshield, or obstructs viewing of the dashboard indicators and displays. 2. -
Page 6: Commandermt Receiver Kit Components
Commander Commander MT Receiver Kit Components Commander Commander Commander CommanderMT Display Controller FM Direct Adapter DIN Opening XM Car Antenna MT Receiver Kit Components MT Receiver Kit Components MT Receiver Kit Components MT Receiver Kit Components menu Remote Control Snap-On Mounting Trim Bezel Plate... -
Page 7: Installation/Wiring Precautions
Installation/Wiring Precautions Installation/Wiring Precautions Installation/Wiring Precautions Installation/Wiring Precautions Installation/Wiring Precautions 1. To prevent a short-circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to installation. Connect power wires last. 2. Do not install the CommanderMT Display Controller in loca- tions exposed to direct sunlight, or in areas subject to extreme temperatures, or damage could occur. -
Page 8: Setting Up And Installing Your Kit
Setting Up and Installing Y Setting Up and Installing Y Setting Up and Installing Y our Kit Setting Up and Installing Y Setting Up and Installing Y ® NOTE: The XM signal can be received and processed virtually anywhere as long as there are no obvious satellite signal obstructions such as nearby buildings, high terrain, parking garages or tunnels. -
Page 9: Interconnect Diagram
Interconnect Diagram Interconnect Diagram Interconnect Diagram Interconnect Diagram Interconnect Diagram Interconnect Cradle with XM Mini-Tuner DIN Opening Trim Bezel CommanderMT Display Controller Power Cable with 2A In-line Fuse XM Antenna To FM Antenna To FM Radio FM Direct Adapter... -
Page 10: Antenna Installation
2 . Important! It is very important to make your power connection to a source that only supplies 12V when the vehicle key is in the accessory or ignition ON position. A connection to a 12V source that is always on, regardless of the key position, can lead to a battery drain if the CommanderMT System is left on when you leave your vehicle. - Page 11 Caution: 1. Do not install the antenna inside the vehicle passen- ger compartment. Mounting the antenna in the passen- ger compartment either on the from dashboard, or on the rear window deck area will cause reception issues and must be avoided. 2.
- Page 12 • For antenna mounting locations at the rear of the roof, the antenna cable can be routed into the vehicle through the trunk. Always route the cable under the weather seal near the lowest part of the trunk to reduce possible water leaks. •...
-
Page 13: Commandermt Display Controller Installation
4. CommanderMT Display Controller Installation Be sure to locate your Display Controller below the top of the dash in your vehicle to keep the unit within easy reach while driving. Choosing a lower location in your installation should also make it easier to manage the cables and achieve a more desirable appear- ance when the installation is completed. -
Page 14: Using The Din Opening Trim Bezel
The CommanderMT Display Controller can be installed using the DIN opening trim bezel or a snap-on mounting plate as shown below. The trim bezel permits in-dash or center console mounting, while the mounting plate can be used with optional custom brackets, such as swivel or vent mounts. Using the DIN Opening Trim Bezel Preferred location Your CommanderMT Receiver Kit includes a DIN opening trim... -
Page 15: Using The Snap-On Mounting Plate
Using the Snap-On Mounting Plate To attach the CommanderMT cradle to optional mounting devices that are readily available at retail, attach the snap-on mounting plate to the rear of the CommanderMT Display Controller as shown below. Examples of Optional Aftermarket Mounting Alternatives... -
Page 16: Connection Options
5. Connection Options The CommanderMT System provides an audio output signal in two ways: FM Direct Wiring - The FM direct adapter supplies a hard- wired FM output, provided the FM Frequency option of the XM Mini-Tuner is turned on and tuned to an unused FM frequency. Interconnect Cradle with XM Mini-Tuner... - Page 17 b. Low-Level Audio Output - For vehicle radio head units with auxiliary audio inputs, the audio signal can be routed through an optional audio cable (Part No. SAT-RCA) and applied to the auxiliary inputs of a radio or entertainment system. In this case, tolisten to the audio.
- Page 18 6. Cable Routing and Component Installation Once you have established power connections, Display Controller and antenna placement, and audio connection, route all cables to the location where you will mount the Interconnect Cradle. When you have plugged the power and antenna jacks into the cradle, re-use the cable twist ties that were provided with the power and car antenna cables and always be sure to gather, bundle, twist-tie, and secure any excess cable remain-...
- Page 19 Installing the Cradle and Interconnecting Cables - Locate the Interconnect Cradle in a readily accessible location, such as the glove compartment, console compartment, or under the dashboard, so that the XM Mini-Tuner can be removed or replaced. Note also that the cradle must be situated close enough to comply with the CommanderMT Display Controller cable and Power Cable lengths (6’).
-
Page 20: Warranty
12 MONTH LIMITED WARRANTY FM Satellite Radio XMRVRFM002 AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original retail purchaser of this product that should, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 21 This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. U.S.A.: Audiovox Electronics Corporation 11788 (1-800-645-4994) Canada: CALL 1-800-645-4994 for Location of Warranty Station Serving Your Area 150 Marcus Blvd...
- Page 22 Audiovox Electronics Corporation 150 Marcus Blvd. Hauppauge, New York 11788 U.S.A. 1 800 645 4994 www.audiovox.com XM name and related logos are trademarks of XM Satellite Radio Inc. Printed on Recycled Paper XMRVRFM002 ©2007 Audiovox Electronics Corporation. All rights reserved.
