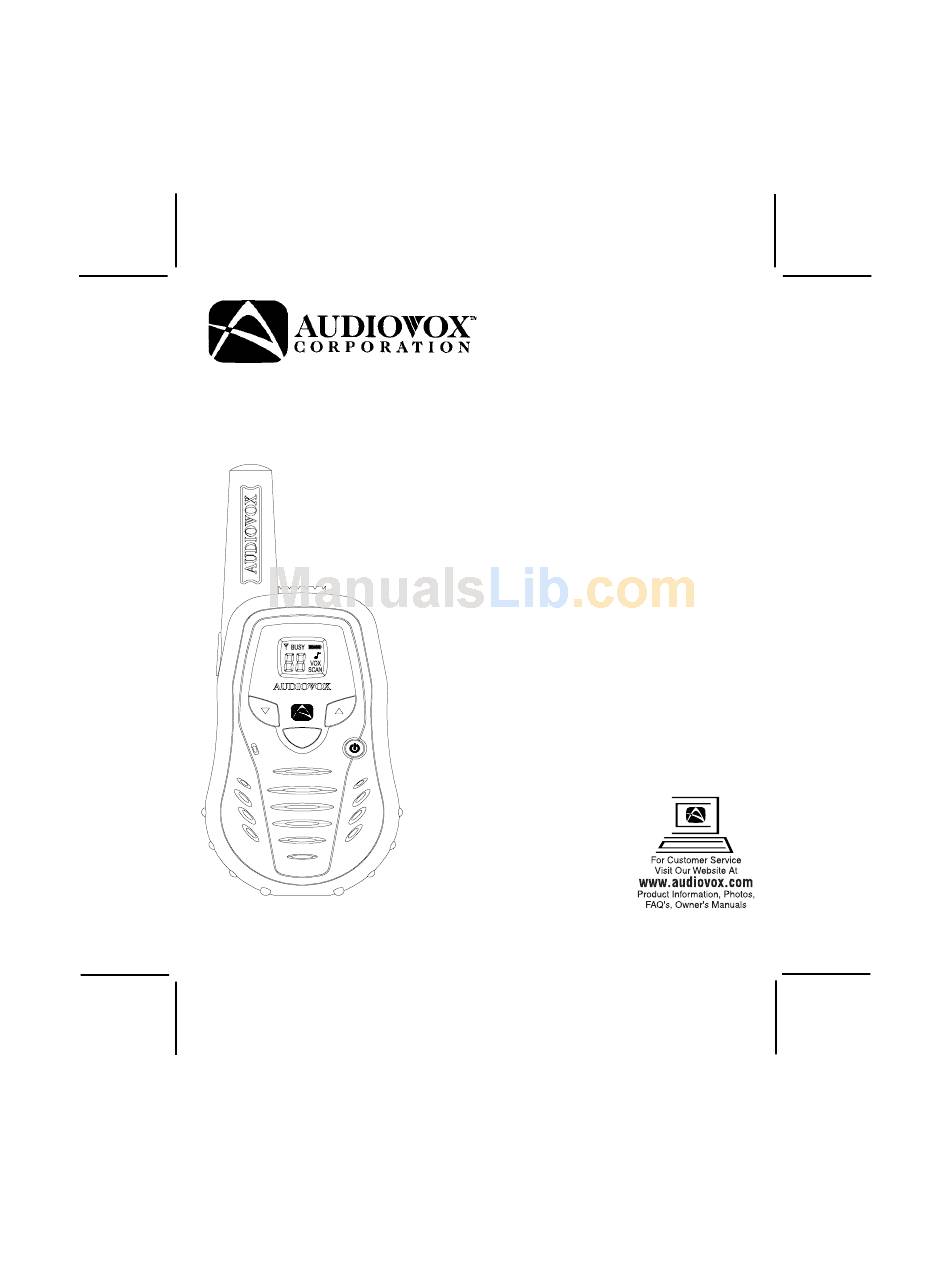

- Page 1 General Mobile Radio Service (GMRS) Model : GMRS121-2 Owner’s Manual M O D E 128-7005 1 of 20 Released: 1-16-04...
- Page 2 THIS PAGE LEFT BLANK INTENTIONALLY 128-7005 2 of 20...
-
Page 3: Safety Information
These are not indicative of a fault condition. Avoid placing the GMRS121-2 radio transceiver for prolonged periods of time in direct sunlight or temperatures below -4 °... -
Page 4: Fcc Warning
WARNINGS: Battery Care Never attempt to charge alkaline or dry cell batteries, as batteries may burst causing personal injury and damage to the product. Battery Disposal In general, if handled improperly, batteries pose a risk of fire or burns. Do not disassemble, crush, puncture, short external contacts, or dispose of the batteries in fire or water. - Page 5 Model GMRS121-2 (FCC License Required) 1. Battery Cover 2. Push-To-Talk (PTT) and Func- tion Confirmation Button 3. Detachable Carry Clip 4. Antenna 5. Liquid Crystal Display (LCD) 6. Up Channel/Volume Button (REF) MODE (REF) 7. Down Channel/Volume Button 8. MODE Button 9.
-
Page 6: Equipment And Accessories Supplied
7. Voice Activated Transmission (VOX) Indicator: This function allows hands-free conversation. The icon appears when the VOX mode is activated. Equipment and Accessories Supplied Radio (2) Owner’s Manual (1) Powering the transceiver: Your GMRS121-2 radio transceiver operates on three AAA Alkaline batteries. GMRS121-2 128-7005 128-7005 6 of 20... - Page 7 Installing the batteries: Battery installation is made more convenient when the carry clip is rotated either left or right to the upside-down position, or is removed completely. Simply rotate the clip in either direction to the vertical position. Be careful not to use excessive force.
- Page 8 The following guidelines will improve performance and provide longer operating times for the GMRS121-2: Do not mix old and new batteries. The use of alkaline-type batteries is recommended to provide the longest operating time. Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.
- Page 9 Controls: Power On-Off/SCAN Button (10) Press and hold the PWR on/off button for at least 2 seconds. You will hear a confirming melody to indicate the unit is on. To turn the unit off, press and hold the button for at least 2 seconds. Adjusting the Volume (6, 7) With the unit powered on, press the Up Channel/Volume button ( ) to...
- Page 10 Up Channel/Volume Button (6) In the standby mode, pressing this button will increment the listening volume. When in function edit mode this button will be used to adjust the unit’s settings. Down Channel/Volume Button (7) In the standby mode, pressing this button will decrement the listening volume.
-
Page 11: Channel Selection
In order to communicate with other GMRS/FRS units, both the transmit- ting and receiving party must be on the same frequency. The GMRS121-2 has 22 channels (frequencies) indicated by the large digits on the LCD display panel. Channels 1 through 7 are the shared GMRS/FRS channels. - Page 12 VOX Selection Mode This option enables you to have hands-free conversation. When using the internal microphone/speaker, your voice or the signal is detected and the radio transmits and receives automatically. Your voice or nearby sound is detected and the radio transmits without the need to press the PTT but- ton.
-
Page 13: Battery Alert
LCD panel, install fresh batteries. NOTES FOR GOOD COMMUNICATION 1 . The 22 channels of the GMRS121-2 are shared on a ‘take turns’ basis. This means other groups may be talking on any of the chan- nels. A common code of ethics/courtesy is to switch to another vacant channel and not to attempt to talk over someone who is already using the channel you first selected. - Page 14 Warning • Do not operate the transceiver unless you are licensed to do so. • Remove the batteries from the transceiver if it is not expected to be used for long periods. This will eliminate the possibility of chemicals leaking from the batteries and corroding the transceiver.
-
Page 15: Troubleshooting
Troubleshooting Problem Possible cause No transmission Weak batteries while pressing Incorrect battery polarity the PTT Button Weak or no Weak batteries signal received Channel not set the same as target transceiver Volume level too low PTT Button inadvertently depressed Excessive radio interference on a particular channel Obstruction of radio signal Unit beeps, but... -
Page 16: Technical Specifications
Technical Specifications: General Frequency Range: Channels 1 through 7 are shared with FRS radios. Channels 8 through 14 are FRS only. Channels 15 through 22 are GMRS only. Channel Spacing Dimensions (W x H x D) (Without Antenna) Power Supply Power Source Operating Time (Transmit: Receive: Standby) -
Page 17: Main Channel Frequencies
This transceiver complies with FCC regulations for use in the United States of America. Use in other countries may be prohibited or restricted by local regulation. Please check with the local regulating agency be- fore using this device outside the United States of America. Main Channel Frequencies: NOTE: Channels 1 through 7 are shared with FRS radios. - Page 18 CHANNELCROSS REFERENCE FOR 14 AND 15 CHANNEL GMRS/FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO CHANNELCROSS REFERENCE FOR 15 CHANNEL GMRS/FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO WHEN USING RADIOS PRODUCED BY OTHER MANUFACTURERS, COMPARE CHANNEL FREQUENCIES FOR COMPATIBILITY. CHANNEL CROSS REFERENCE FOR 14 CHANNEL FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO...
-
Page 19: 90-Day Limited Warranty
90 DAY LIMITED WARRANTY Applies to Audiovox Family Radio and General Mobile Service Products. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven... - Page 20 © 2004 Audiovox Electronics Corp., Hauppauge, NY 11788 128-7005 Printed in China 128-7005 20 of 20...
