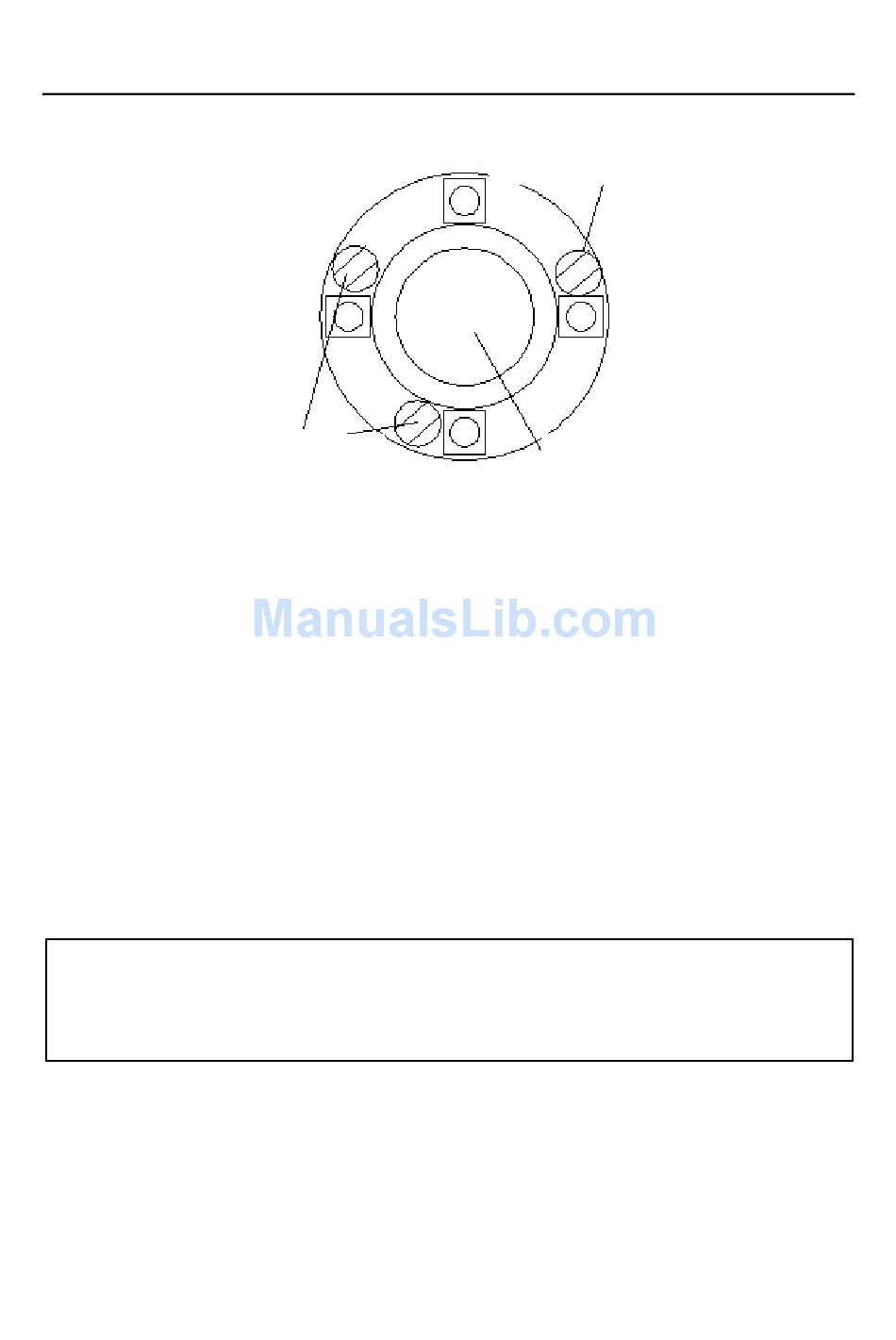

Reticle adjusting screws
② Loosen the four reticle adjusting screws uniformly with an
adjusting pin. Rotate the reticle around the sight line and align the
vertical line of the reticle with point Ａ. Tighten the reticle
adjusting screws.
③ Repeat the inspection and adjustment to see if the adjustment
is correct.
Note： Remember to check the index of the instrument after
adjusting.
9.5 Check & Adjustment of discrepancy between
twice collimation errors(C)
info@smartmaxgeosystems.com
Reticle adjusting screws
Eyepiece
31
