HMS Anybus AWB5121 Startup Manual

Industrial wlan/lte router
Hide thumbs Also See for Anybus AWB5121:

Advertisement

Quick Links

®
Anybus
Industrial WLAN/LTE Router
STARTUP GUIDE
SP2557 1.11 en-US ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anybus AWB5121 and is the answer not in the manual?

Questions and answers

Summary of Contents for HMS Anybus AWB5121

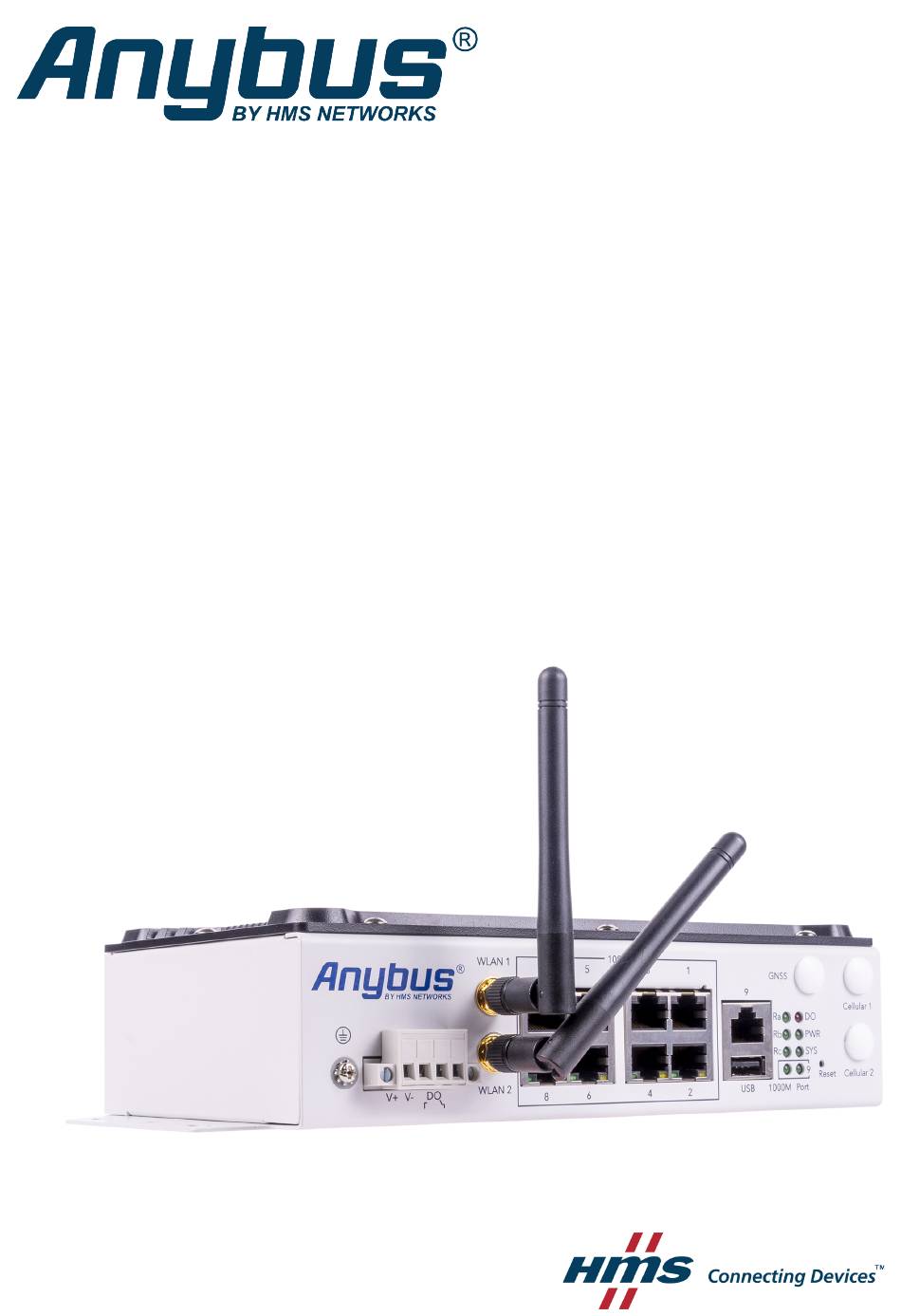

  • Page 1 ® Anybus Industrial WLAN/LTE Router STARTUP GUIDE SP2557 1.11 en-US ENGLISH...
  • Page 2 HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Industrial Networks and is subject to change without notice.
  • Page 3: Table Of Contents

    Table of Contents Page Preface ..............3 About This Document .
  • Page 4 Verify Operation ............22 Technical Data .
  • Page 5: Preface

    Preface 3 (26) Preface About This Document This manual describes how to install Anybus Industrial WLAN Router/ Anybus Industrial LTE Router and set up a basic configuration. For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Document Conventions The following conventions are used to indicate safety information and other important content in this document:...
  • Page 6: Trademarks

    Preface 4 (26) Trademarks ® Anybus is a registered trademark of HMS Industrial Networks. All other trademarks mentioned in this document are the property of their respective holders. SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 7: Safety

    Safety 5 (26) Safety Intended Use The intended use of this equipment is as a communication interface and gateway. The equipment receives and transmits data on various physical levels and connection types. If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
  • Page 8: Preparation

    Preparation 6 (26) Preparation Package Checklist Item Pieces Anybus Industrial WLAN Router/ Anybus Industrial LTE Router 4 pin terminal block DIN rail clip Startup Guide Safety and Regulatory Compliance Sheet SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 9: Installation

    Installation 7 (26) Installation Installing Cellular SIM Card Applicable for the LTE router. Install a SIM card in the router to connect it to a cellular data network. Ensure that the SIM card is installed correctly to avoid damage to the SIM card or the router.
  • Page 10: Wall Mounting Option

    Installation 8 (26) Wall Mounting Option Procedure Use the four hook holes at the corners of the wall mounting bracket to hang the router on the wall. SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 11: Din Rail Mounting Option

    Installation 9 (26) DIN Rail Mounting Option Mount the router on a DIN rail in accordance with the EN 50022 standard. Procedure Fasten the DIN clip with 3 (M3x6 flat head) screws on the rear side of the router. SP2557 1.11 en-US ®...
  • Page 12 Installation 10 (26) Mount the router on a DIN rail: Insert the upper end of the DIN rail clip into the DIN rail. Push the bottom of the DIN rail clip into the DIN rail. SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 13: Connecting Ground Screw

    Installation 11 (26) Connecting Ground Screw To avoid system damage, the equipment should be connected to ground. Procedure Establish a direct connection between the ground screw and the grounding surface prior to connecting devices. SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 14: Terminal Block

    Installation 12 (26) Terminal Block Contact Number Description Power Input V+ Power Input V– DO, Digital Output SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 15: Installing Terminal Block

    Installation 13 (26) Installing Terminal Block Procedure Attach the 4 pin terminal block to the contact on the router. Fasten the terminal block with the 2 screws included. SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 16: Connecting Digital Output Wires

    Installation 14 (26) Connecting Digital Output Wires Before You Begin The relay output are used to detect user-configured events. When a user-configured event is triggered, the two wires attached to the DO, fault contacts, form a close circuit. The fault circuit remains opened until a user-configured event occur. Procedure Connect the Digital Output (DO): Insert the wires into the 2 pin DO contact on the 4 pin terminal block.
  • Page 17: Connecting Power Wires

    Installation 15 (26) Connecting Power Wires Caution Ensure that the power supply is turned off before connecting it to the equipment. Attention Assurez-vous que l’alimentation électrique est coupée avant de la brancher sur l’équipement. Use a power supply of 8-32 VDC to power the router. Max power consumption: 11.2 W.
  • Page 18: Connecting To Ethernet Network

    Installation 16 (26) Tighten the wire-clamp screws. Connect the power wires to a DC switching type power supply. Connecting to Ethernet Network Optional Connect the router to an Ethernet network via the WAN port 9. SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 19: Connecting Antennas

    Installation 17 (26) 4.10 Connecting Antennas Fig. 1 Antenna connectors Placement of the antennas Type Router Model Placement WLAN 1 Anybus Industrial WLAN Router WLAN 2 Anybus Industrial LTE Router GNSS Cellular 1 LTE-Main Cellular 2 LTE-Aux SP2557 1.11 en-US ®...
  • Page 20: Configuration

    Configuration 18 (26) Configuration Before You Begin Configuration The router is configured through web management. The router default IP address is http://192.168.10.1/. The default router login user name and password is admin. Web Management Prepare for configuring the router settings via the web management interface. Before You Begin ►...
  • Page 21: Configure The Country/Region Settings

    Configuration 19 (26) Configure the Country/Region Settings Applicable for the WLAN router. To comply with the Radio Equipment Directive (RED) and local radio regulations you must configure the country/region settings before the router is brought into use. Procedure Configure the Country settings. In the web management interface: Navigate to the WLAN Settings tab.
  • Page 22: Usb Port

    Configuration 20 (26) USB Port Use the USB port in order to save or restore the configuration and upload the firmware upgrade file. For further configurations, refer to the User Manual. SP2557 1.11 en-US ® Anybus Industrial WLAN/LTE Router Startup Guide...
  • Page 23: Factory Reset

    Configuration 21 (26) Factory Reset Procedure To reset the router to its factory settings: Ensure that the router is powered on. Use a pointed object (such as a ballpoint pen) to press and hold the reset button for >10 seconds. Result →...
  • Page 24 Verify Operation 22 (26) Verify Operation When the installation and configuration are completed, verify that the router is in operation. Fig. 2 LED Indicators Front Panel LED Status Description Green On DC-IN Power is On No Power in DC-IN Green On Ready System LED Green Blinking...
  • Page 25 Verify Operation 23 (26) RJ45 LED Status Description Port 1–8 Green On Link is established Green Blinking Packets transmitting/receiving Link is inactive Radio LED Router Model Status Description Green On SIM detected SIM not detected WLAN Reserved Reserved for future use Green On 4G connection Green...
  • Page 26 Technical Data 24 (26) Technical Data Technical Specifications Order Codes AWB5121 (WLAN Router) AWB5221 (LTE Router) Cellular standards LTE Cat.4 2x2 MIMO, 4G/3G/2G Fall Back LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/ B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 Ethernet Ports LAN: 8 x 10/100Base-TX RJ45, Auto Negotiation, Auto MDI/ MDI-X WAN: 1 x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X Operating...
  • Page 27 Technical Data 25 (26) Order Codes AWB5121 (WLAN Router) AWB5221 (LTE Router) IP31 IP protection class Dimensions 200x 51 x 126 (W x H x D) / without Mounting Clip Mounting Panel mount or DIN-rail mount (bracket included) Configuration CGI WebGUI, SSH, Telnet, SNMP, HTTPS Certifications Radio: RED Compliance Safety: EN 62368-1, EN 50385/EN62311 MPE assessment EN...
  • Page 28 © 2020 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SP2557 1.11 en-US / 2020-03-13 / 17649...
