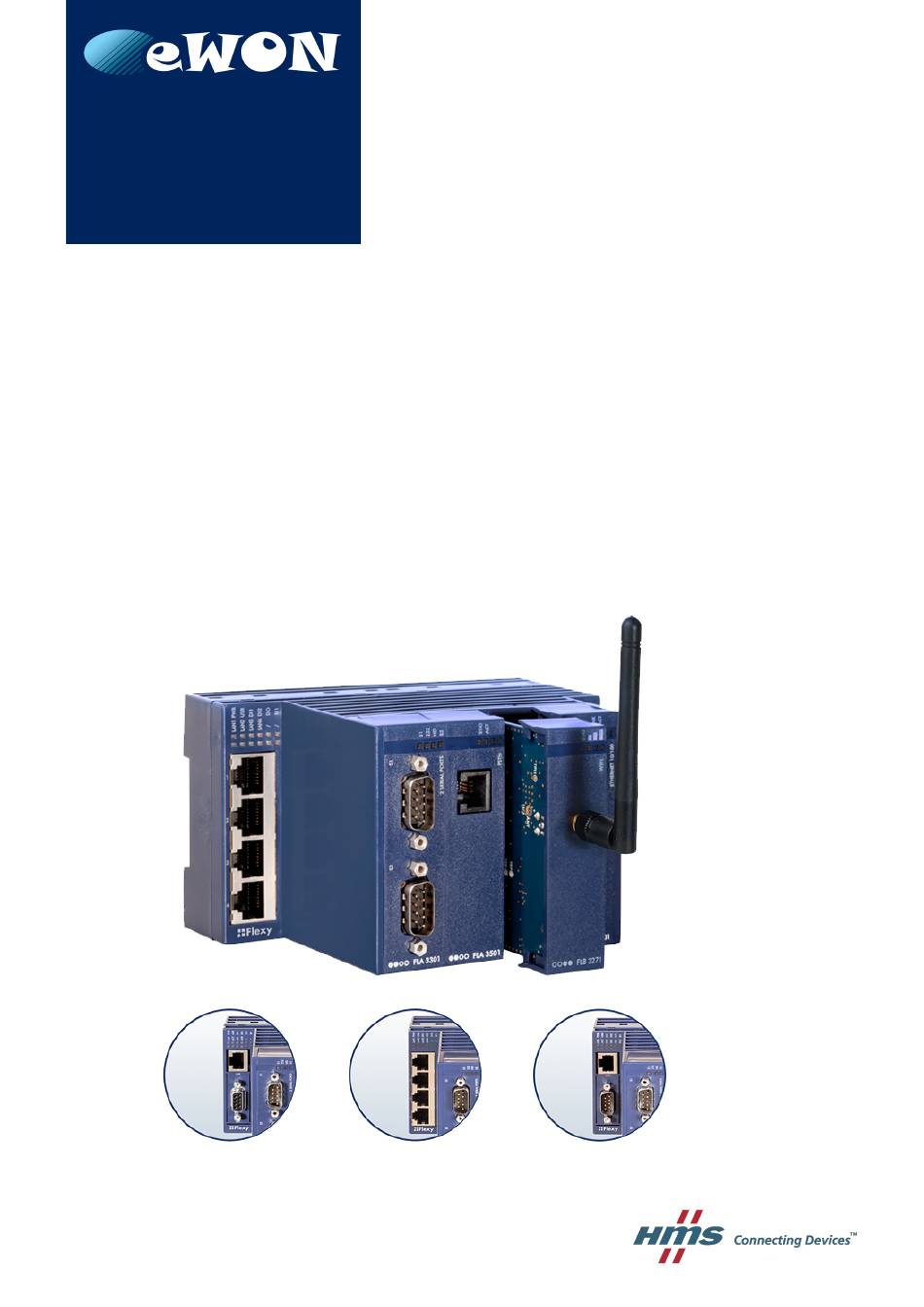

- Page 1 Flexy Base Units INSTALLATION GUIDE IG-0014-00 EN 1.7 ENGLISH...
- Page 2 Important User Information Liability Every care has been taken in the preparation of this document. Please inform HMS Industrial Networks SA of any inaccuracies or omissions. The data and illustrations found in this document are not binding. We, HMS Industrial Networks SA, reserve the right to modify our products in line with our policy of continuous product development.
-
Page 3: Table Of Contents
Extension Card Power Requirements ................24 IP Address & Access to the Web Configuration............ 26 Factory Default IP Settings ...................26 Powering On .......................26 Connecting to the LAN IP Address.................26 Web Interface ......................27 eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... - Page 4 MPI Interface (Flexy 103 & 203) ..................32 B Flexy Products Overview .................... 33 Base Unit ........................33 Extension Cards ......................33 C Flexy Isolation Scheme ....................36 Base Unit ........................36 Extension Cards ......................36 eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
-
Page 5: Preface
3 (38) Preface About This Document This document describes the hardware of the eWON Flexy base units and explains how to get started with the embedded web site. It also describes the basic software features needed to install the equipment. -
Page 6: Product Summary

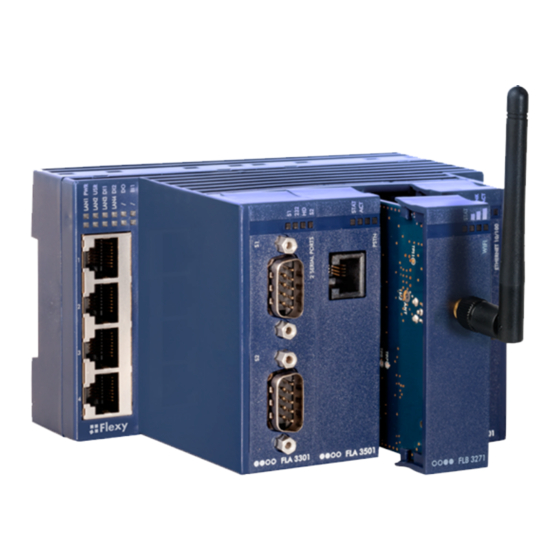

Modular Concept of the Flexy The Flexy family is a range of modular industrial gateway/router. As the name Flexy suggests, it has been designed to enable numerous different combinations by addition of extension cards. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... - Page 7 Each base unit version is available as: M2M Data Gateway Flexy 10x (without WAN / LAN / serial routing) M2M Router Flexy 20x (full version) See features matrix in Features of the Flexy, p. 6 eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
-
Page 8: Features Of The Flexy
WAN communication interface (Ethernet WAN, wireless modem, ...) • a field communication interface (serial, IO card, …) How the extension cards should be integrated in the eWON Flexy base units is explained in Extension Cards, p. Features of the Flexy The following section lists the different main features supported by the Flexy. -
Page 9: Types & Part Numbers
M2M Router – 4 Ethernet ports + MPI In the above table, the MA extension stands for “Multiple language A” (regrouping EN, FR, DE and IT). The part number syntax is explained in the Base Unit Label, p. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... -
Page 10: Safety, Environmental & Regulatory Information
3.3.1 Conformity to European Directives The eWON Flexy base units and their extension cards are in conformity with the following EC directives: • RoHS Directive 2011/65/EU •... -
Page 11: Reference Standards For Type Tests
• CSA-C22.2 No 60950-1-07 3.3.3 FCC Compliance The eWON Flexy base units and their extension cards comply with Part 15 of the FCC Rules. Operating is subject to the following two conditions: • This device may not cause harmful interference •... -
Page 12: Internal Battery
Internal Battery 3.5.1 Purpose and Reference All eWON Flexy base units feature a small battery for RTC backup in case of power failure. The life expectancy of the battery is greater than 10 years starting from the product manufacturing date. -
Page 13: Field Implementation & Environmental Conditions
3.6.1 Ingress Protection The eWON Flexy base units have an IP20 protection grade. Therefore, the eWON Flexy base units are NOT suited for outdoor mounting. They have to be integrated in an electrical cabinet, protected from excessive heat, humidity and dust. - Page 14 31. Connect this terminal directly to a low impedance ground. Shielded cables have to be used for Ethernet and serial connectivity to comply with the EMC requirements. A scheme of the Flexy isolation is available in Flexy Isolation Scheme, p. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
- Page 15 OEM User Manual instructions that are required. The host OEM User Manuel (eWON's manual) must contain clear instructions on how end users can find and/or access the module and the FCC ID eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
-
Page 16: Base Unit Hardware Description
Base Unit Hardware Description 14 (38) Base Unit Hardware Description Base Unit Label The identification label of the eWON Flexy base units is placed on the right hand side of the housing. The different parts of the label are described below: Label Definition... -
Page 17: Mechanical Dimensions
Base Unit Interface This section addresses the interface that represents the eWON Flexy base units. The items numbered in the image below are explained subsequently in separate paragraphs. eWON Flexy Base Units Installation Guide... - Page 18 LED Panel Example of a Flexy 4.3.2 Reset Button The reset button allows the reset of the Flexy partially (Reset Level 1) or completely (Reset Level 2). For the reset procedures check Resetting the Flexy, p. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
- Page 19 Related Documents, p. 4.3.4 Main Connector The Flexy is powered via its main connector using a male connector (a mating female connector with screw terminals is delivered with the eWON Flexy base units). For details see Main Connector, p. 4.3.5 Four Slots for Extensions The slot fillers can be removed to add extension cards.
- Page 20 Serial Port The configuration of the physical serial mode is done through the device web interface. Possible configurations are RS232, RS422 and RS485. There is no dip switch settings required. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
- Page 21 However, the minimum required regarding the Ethernet cable type is Cat.5 with RJ45 connectors. MPI Port The MPI - Profibus port allows the connection to an MPI or Profibus network. No further hardware configuration is required. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
- Page 22 MPI status Green flashing = TX activity on the MPI port MPI token Green steady = Hold Token in MPI operation mode Fig. 14 LED Panel of the Flexy 103 & eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
-
Page 23: Extension Cards
Extension Cards 21 (38) Extension Cards Base Unit Slot Compatibility The eWON Flexy base units feature two type of slots : • The type-A slots are the two first slots starting from the left • The type-B slots are the two last slots Fig. -
Page 24: Extension Card Insertion
Extension Card Insertion Wait 30 seconds after turning off the equipment before inserting (or removing) an extension card in order to avoid possible damage to the eWON Flexy base units and the extension cards. Remove the slot filler of the location the new card will be inserted. To do this, press on both ends of the cover, note that the hooks are off-centered. -
Page 25: Powering On The Flexy With Its Extension Cards
If an extension card was inserted in a wrong slot, the boot sequence is interrupted and the USR LED is flashing RED 1x short 3x long and communication through the Ethernet port is no longer possible. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... -
Page 26: Multiple Extension Cards
“accepted” extension cards. Extension Card Power Requirements The internal power converter of the eWON Flexy base units has been thought to cover a broad range of different combinations of extension cards. Users should make sure the total power demand of the extension cards does not exceed the capabilities of the base unit. That is why the notion of “energy points”... - Page 27 Energy demand for 2 serial ports card: FLA 3301 Energy demand for single Ethernet card: FLX 3101 Energy demand for 3G GSM card: FLB 3202 Energy Balance Both results are higher than 0 which means that this combination works. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
-
Page 28: Ip Address & Access To The Web Configuration
Indicate the new IP address and its subnet mask. By clicking Next, eBuddy sends the command to the device to change its IP address and to reboot Wait until the reboot has ended to reach the Flexy on its new IP address eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... -
Page 29: Web Interface
The System page allows to check the status of the system including detected extension cards. To access the system status summary, click on Diagnostic > Status > System Info > System. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... -
Page 30: Resetting The Flexy
Resetting the Flexy 28 (38) Resetting the Flexy The reset button BI1 is located on the right side of the eWON Flexy base units (see Reset Button, p. 16). The reset function of this button is active only if pressed while powering on. The Flexy features two type of reset levels. -
Page 31: Reset Impact Matrix
Internet access Language settings COM settings (modem, etc) Talk2M config + key Proxy configuration Memory configuration User(s) adm password Tags IO Server config Gateway config eWON Identification User Web site User Scripts eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... - Page 32 This page intentionally left blank...
-
Page 33: A Connector Pinout & Related Specifications
30V Input protection protected against polarity inversion Suggested power supply: • SIEMENS SITOP logo power 24V 2.5A 60W - Siemens order ref: 6EP1332-1SH43 • Equivalents of the above on the market eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... -
Page 34: Serial Interface (Flexy 102 & 202)
MPI (1500V galvanic isolation through the power supply isolation from ground) Baud rates From 9,6 kBauds to 12,0 MBauds Polarization 100 kΩ Termination None SUBD9 female connector Pin # pinout (Flexy side) eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... -
Page 35: B Flexy Products Overview
Reference & name Slot Maximum Energy Installation supported demand points Guide compatibility FLA 3301 ●●○○ IG-0016-00 2 Serial-Ports FLX 3101 ●●●● IG-0017-00 Ethernet 10/100 FLX 3401 ●●●● IG-0018-00 8DI-4AI-2DO FLX 3402 ●●●● IG-0018-01 8DI-4AI-2DO eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... - Page 36 ○○●● IG-0020-00 WI-FI FLA 3501 ●●○○ IG-0021-00 PSTN FLB3601 ○○●● IG-0024-00 Since July 2016, the FLX 3401 has been tagged as end of life and is replaced by the FLX 3402. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
- Page 37 As explained in Extension Card Power Requirements, p. 24, the sum of energy demand points of the extension cards must not exceed the available energy points on a base unit level. eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
-
Page 38: C Flexy Isolation Scheme
DGND = GND RF from SMA connector Avoid external connections between GND RF and Earth. C.2.2 FLX 3101 – WAN Ethernet Connector shielding: Earth connected Ethernet signals: isolated from DGND with a transformer eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7... - Page 39 USB signals: isolated from PGND only Connector shielding: connected to Earth Due to USB connector design, Earth-DGND isolation is limited to 500V when the USB extension card is inserted AI-GND = DGND eWON Flexy Base Units Installation Guide IG-0014-00 EN 1.7...
- Page 40 © 2018 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se IG-0014-00 EN 1.7 / 2017-09-01 / 5094...
