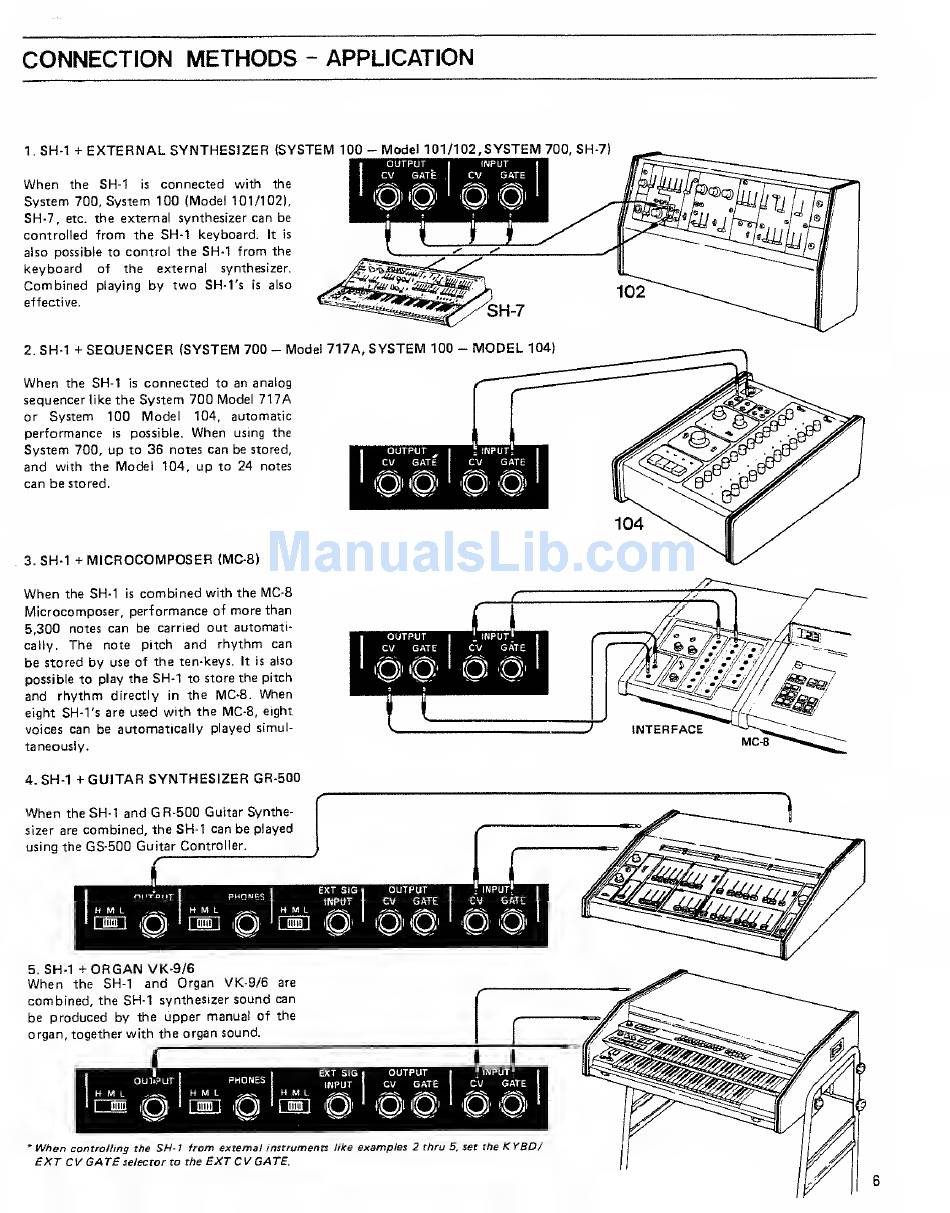

CONNECTION METHODS
-
APPLICATION
l.SH-1
+
EXTERNAL
SYNTHESIZER (SYSTEM
100
-
Model 101/102,
SYSTEM
700,
SH-7
When
the SH-1
is
connected
with the
System
700,
System 100 (Model 101/102),
SH-7,
etc.
the external synthesizer can be
controlled
from the SH-1 keyboard.
It
is
also possible
to control the SH-1
from
the
keyboard
of the
external synthesizer.
Combined
playing
by
two
SH-1's
is
also
effective.
2.
SH-1 +
SEQUENCER
(SYSTEM
700
-
Model 717A,
SYSTEM
100
-MODEL
104)
When
the
SH-1
is
connected
to an analog
sequencer
like
the
System 700 Model
717A
or
System 100 Model
104,
automatic
performance
is
possible.
When
using the
System
700,
up
to
36
notes can be
stored,
and
with the
Model
104,
up
to
24
notes
can be stored.
3.
SH-1 +
MICROCOMPOSER
(MC-8)
When
the
SH-1
is
combined
with the
MC-8
Microcomposer, performance
of
more
than
5,300
notes
can be carried
out automati-
cally.
The
note pitch
and rhythm
can
be stored
by
use
of the ten-keys.
It is
aiso
possible to play the
SH-1 to store the pitch
and rhythm
directly
in
the
MC-8.
When
eight SH-1's are
used with the MC-8, eight
voices
can be automatically played simul-
taneously.
4.
SH-1
+
GUITAR SYNTHESIZER
GR-500
When
the
SH-1 and
GR-500
Guitar Synthe-
sizer are
combined, the SH-1
can be played
using the
GS-500 Guitar Controller.
f
OUTPUT
j
PHONES
HML
,~^
I
HML
_
5,
SH-1 +
ORGAN
VK-9/6
When
the
SH-1
and Organ VK-9/6
are
combined, the SH-1 synthesizer
sound can
be produced by the
upper manual of the
organ, together with the organ sound.
om>?ur
*
When
controlling the
SH-1 from
external instruments
like
examples 2 thru
5,
set the
KYBD/
EXT CVGATE
selector
to
the
EXT
C V GATE.
EXT SIG
INPUT
OUTPUT
CV GATE
!
INPUT!
CV GATE
