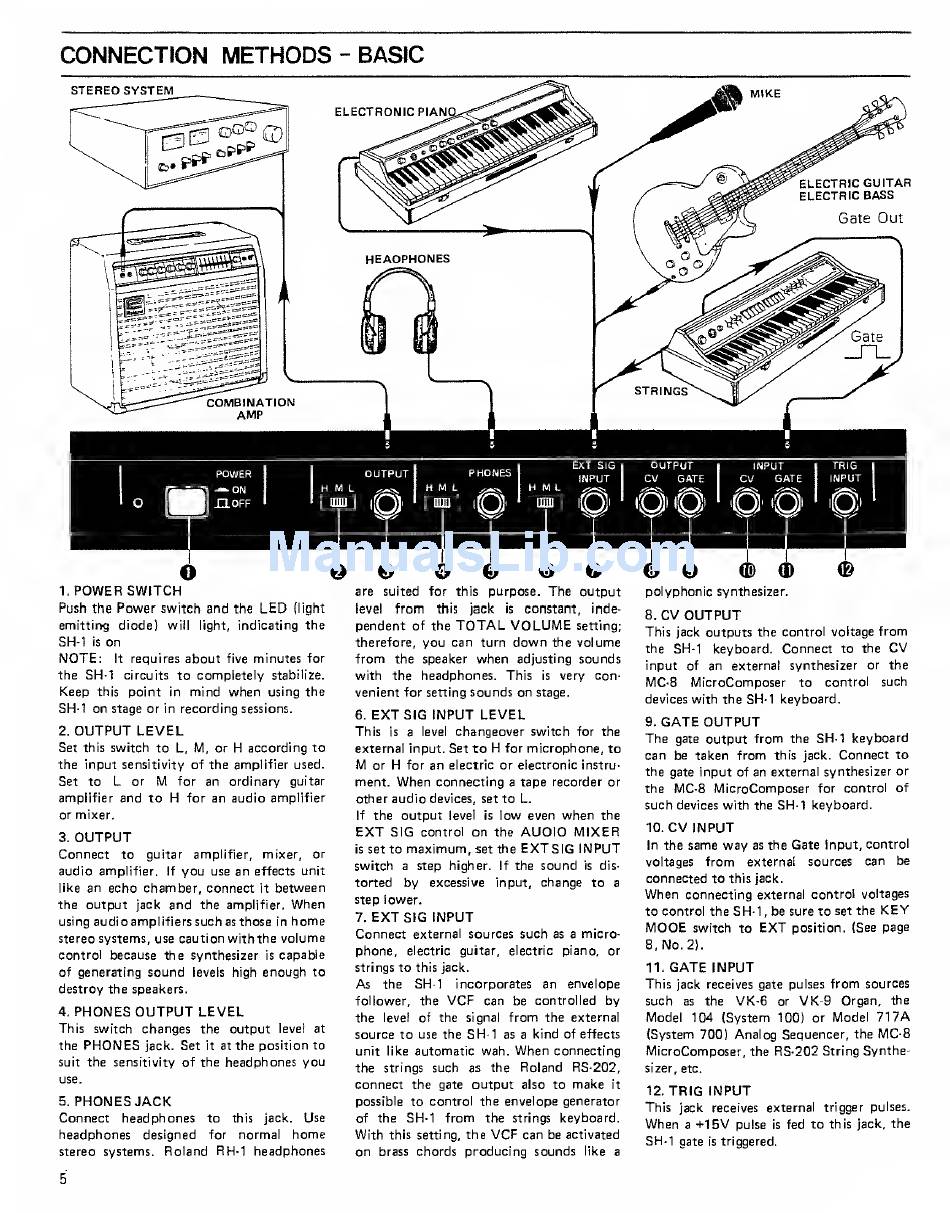

CONNECTION
METHODS
-
BASIC
STEREO SYSTEM
POWER
---ON
..OFF
EXT
SIG
j
OUTPUT
INPUT
I
CV
GATE
INPUT
I
TRIG
CV
GATE
INPUT
o
©
1.
POWER
SWITCH
Push
the
Power
switch
and
the
LED
{light
em'tttir>g
diode)
will
light,
indicating the
SH-1
is
on
NOTE:
It
requires
about
five
minutes
for
the
SH-1
circuits
to completely
stabilize.
Keep
this
point
in
mind when
using
the
SH-1
on
stage
or
in
recording
sessions.
2.
OUTPUT LEVEL
Set
this
switch to
L,
M,
or
H
according
to
the input
sensitivity
of the
amplifier used.
Set to
L
or
M
for
an ordinary
guitar
amplifier
and
to
H
for
an audio
amplifier
or
mixer.
3.
OUTPUT
Connect
to
guitar
amplifier,
mixer,
or
audio
amplifier.
If
you
use
an
effects unit
like
an echo chamber, connect
it
between
the
output
jack
and
the
amplifier.
When
using
audio
amplifiers
such
as
those
in
home
stereo
systems, use caution with the
volume
control
because the
synthesizer
is
capable
of
generating
sound
levels
high
enough
to
destroy the speakers.
4.
PHONES
OUTPUT
LEVEL
This switch
changes
the output
level
at
the
PHONES
jack.
Set
it
at
the
position to
suit
the
sensitivity
of the
headphones you
use.
5.
PHONES JACK
Connect
headphones
to
this
jack.
Use
headphones
designed
for
normal
home
stereo
systems.
Roland RH-1 headphones
©
©
©
©
are
suited for this
purpose.
The
output
level
from
this
jack
is
constant,
inde-
pendent
of the
TOTAL VOLUME
setting;
therefore,
you
can
turn
down
the
volume
from
the speaker
when
adjusting
sounds
with
the
headphones.
This
is
very
con-
venient
for setting
sounds on
stage.
6.
EXT
SIG
INPUT
LEVEL
This
is
a
level
changeover
switch
for
the
external
input.
Set to
H
for
microphone, to
M
or
H
for
an
electric
or electronic
instru-
ment.
When
connecting
a
tape recorder or
other
audio
devices, set
to
L.
If
the output
level
is
low even
when
the
EXT
SIG
control
on
the
AUDIO MIXER
is
set
to
maximum,
set
the
EXT
SIG
INPUT
switch
a
step higher.
If
the
sound
is
dis-
torted
by
excessive
input,
change
to
a
step lower.
7.
EXT
SIG
INPUT
Connect
external sources
such
as
a
micro-
phone,
electric
guitar,
electric
piano, or
strings
to
this
jack.
As
the
SH-1
incorporates
an envelope
follower, the
VCF
can be controlled
by
the
level
of the
signal
from
the
external
source to
use
the
SH-1
as a
kind
of
effects
unit
like
automatic wah.
When
connecting
the
strings
such
as
the
Roland RS-202,
connect
the
gate
output
also
to
make
it
possible to control the
envelope generator
of the
SH-1 from
the
strings
keyboard.
With
this setting,
the
VCF
can
be activated
on
brass
chords producing sounds
like
a
© ©
©
d>
®
polyphonic
synthesizer.
8.
CV OUTPUT
This
jack
outputs the
control voltage
from
the
SH-1
keyboard.
Connect
to the
CV
input
of
an
external
synthesizer
or
the
MC-8
MicroComposer
to
control
such
devices
with the SH-1 keyboard.
9.
GATE OUTPUT
The
gate
output from
the
SH-1 keyboard
can
be
taken
from
this
jack.
Connect
to
the
gate
input
of an external
synthesizer or
the
MC-8 MicroComposer
for
control
of
such
devices
with
the
SH-1 keyboard.
10.
CV
INPUT
In
the
same
way
as
the
Gate
input, control
voltages
from
external
sources
can
be
connected
to
this
jack.
When
connecting
external controi voltages
to
control
the SH-1, be
sure
to
set
the
KEY
MODE
switch to
EXT
position. (See
page
8,
No.
2).
11.
GATE
INPUT
This
jack receives gate pulses
from
sources
such
as
the
VK-6
or
VK-9
Organ, the
Model 104 (System
100) or
Model
71 7
(System 700) Analog Sequencer, the
MC-8
MicroComposer,
the
RS-202
String
Synthe-
sizer, etc.
12.
TRIG INPUT
This
jack
receives
external
trigger pulses.
When
a
+15V
pulse
is
fed
to
this
jack,
the
SH-1
gate
is
triggered.
