Genelec 7360A Operating Manual page 3

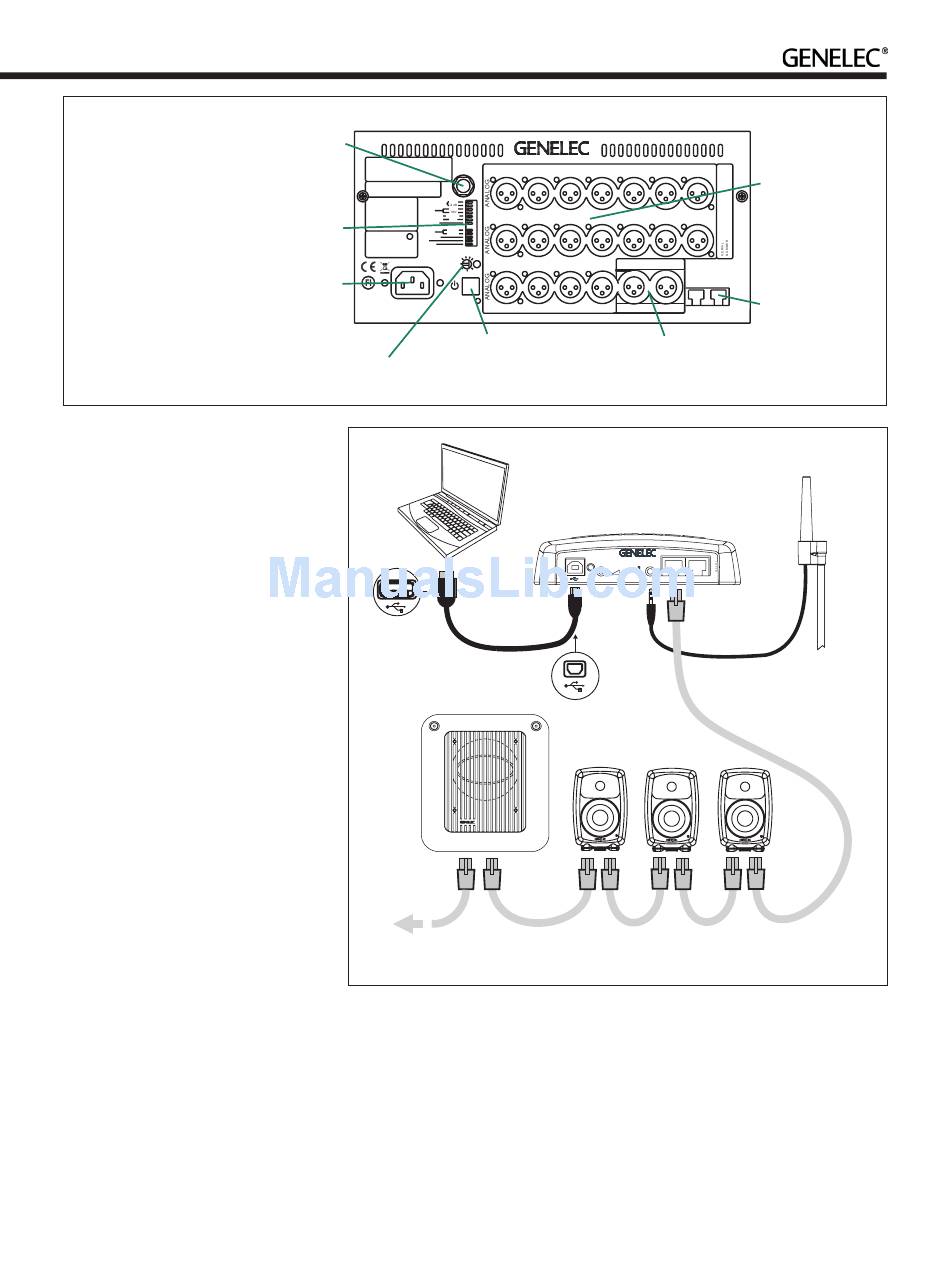

Figure 1. Connector panel
of the 7360A. The 7370A
is similar.
• Y-cables from the source to the
subwoofer's IN connector and the
monitor's signal input.
• Signal sources with dual outputs for each
channel.
Use With GLM™
Control Network
Subwoofers are fully compatible with
Genelec Loudspeaker Manager GLM™ and
the proprietary Genelec monitor control
network and Genelec SAM monitors. Using
the GLM control method unleashes the full
room compensation power in the subwoofer,
with 20 parametric room compensation
filters. This level of room compensation detail
is only available when the GLM is used. Use
with the GLM™ network is described in the
GLM System Operating Manual.
System setup
Although the subwoofer can be used without
the GLM™ software and control network,
they only reach their full potential when
set up and calibrated using the GLM™
software. Genelec Loudspeaker Manager
GLM™ and the proprietary Genelec
monitor control network offer automated
acoustic equalization and alignment for any
reproduction system from simple stereo to
very complex 3D immersive setups including
also one or more subwoofers. GLM setup is
fast and accurate and can precisely address
the typical narrow-band low frequency mode
resonances of a room, or typical radiation
load frequency response compensation. The
settings can be controlled with a computer
or be permanently stored in the monitors to
make the setup available at all times even
BYPASS
SWITCH
CONNECTOR
AVERTISSEMENT
RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR. NE PAS
EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN COMPOSANT À
L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR. ADRESSER
TOUTE RÉPARATION À UN PERSONNEL QUALIFIÉ.
CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE.
LAITE ON LIITETTÄVÄ SUOJAKOSKETTIMILLA
VARUSTETTUUN PISTORASIAAN.
APPARATET MÅ TILKOPLES JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG.
WARNING
BASS ROLL-OFF
ELECTRIC SHOCK HAZARD. DO
NOT OPEN. DO NOT SUBJECT
TO WATER OR MOISTURE. NO PHASE
USER SERVICEABLE PARTS
DIGITAL LFE
INSIDE. REFER SERVICING TO
CONTROL
LFE CHANNEL
QUALIFIED PERSONNEL. USE
LFE +10 dB
EARTHED MAINS CONNECTION
ONLY.
LEVEL
SWITCHES
THIS DEVICE COMPLIES
TEST TONE
WITH FCC PART 15 AND
ISS
CANADIAN ICES-003 RADIO
FREQUENCY CLASS B EMISSION STORED
REQUIREMENTS. REFER TO
INPUT dBu
OPERATING MANUAL FOR FULL
INFORMATION. PRODUCING
100 dB SPL (1 m)
MAINS
INPUT
www.genelec.com RESET TO FACTORY
MADE IN FINLAND MAINS INPUT SETTINGS: PUSH
50 / 60 Hz 300 W BUTTON FOR 10 SEC
100 - 240 V~
ROTARY
LEVEL
ADJUSTMENT
Figure 2. GLM Network cabling. Audio cabling not shown.
when a computer is not in use. Genelec
recommends setting up SAM monitoring
systems using GLM. You can find a detailed
description of the setup and the use of
GLM™ in the GLM™ System Operating
Manual.
The setup is fast and consists of the
following steps:
7360A SMART ACTIVE SUBWOOFER
IN 6 OUT 6 IN 7 OUT 7
BYPASS
-4 dB
-90°
IN 3 OUT 3 IN 4 OUT 4
ON/OFF
A/B
-10 dB
-20 dB
ON OFF
-2 -4
0 -6
IN 1 OUT 1 IN 2 OUT 2
+2
TEST 1 TEST 2
+4 +12
+8
POWER
AES/EBU IN/OUT
SWITCH CONNECTORS
COMPUTER
RUNNING
GLM SOFTWARE
GLM ADAPTER
USB CABLE
SUBWOOFER
LFE IN LFE OUT LINK IN
ANALOG IN/OUT
CONNECTORS
IN 5 OUT 5 LINK OUT
OUT IN
GLM NETWORK
GLM NETWORK
CONNECTORS
DIGITAL
MICROPHONE
PLACED IN
THE LISTENING
POSITION
GLM TERMINATOR
GLM NETWORK
CABLE
MONITORS
• Connect a CAT5 (RJ45) cable between
each monitor (and subwoofer) and finally
to the control network input of the GLM
Adapter device (see Figure 1).
• Connect the GLM Adapter device to
computer USB connector.
• Using a microphone stand, place the
Genelec measurement microphone at the
listening location with the microphone
