Setup Instructions - Intex 48" Owner's Manual

TOOLS REQUIRED: One (1) Phillips screwdriver
One (1) pair of pliers or a small adjustable wrench
IMPORTANT: Do not fully tighten fasterners until last assembly operation.
ASSEMBLE THE LEGS BEFORE INSTALLING THE LADDER STEPS. FAILURE TO
ASSEMBLE THE LEGS BEFORE INSTALLING THE STEPS MAY ALLOW THE LEGS
TO SEPARATE FROM THE LADDER DURING USE, POSSIBLY RESULTING IN
SERIOUS INJURY OR DEATH.
1. IDENTIFY PARTS:
It is very important to lay out the parts correctly and identify which parts connect
together before starting the assembly. Although some parts look alike, they are not
always interchangeable. Refer to the parts list.
INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER
OR LADDER FAILURE WHICH CAN CAUSE FALLING AND PERSONAL INJURY
OR DEATH.

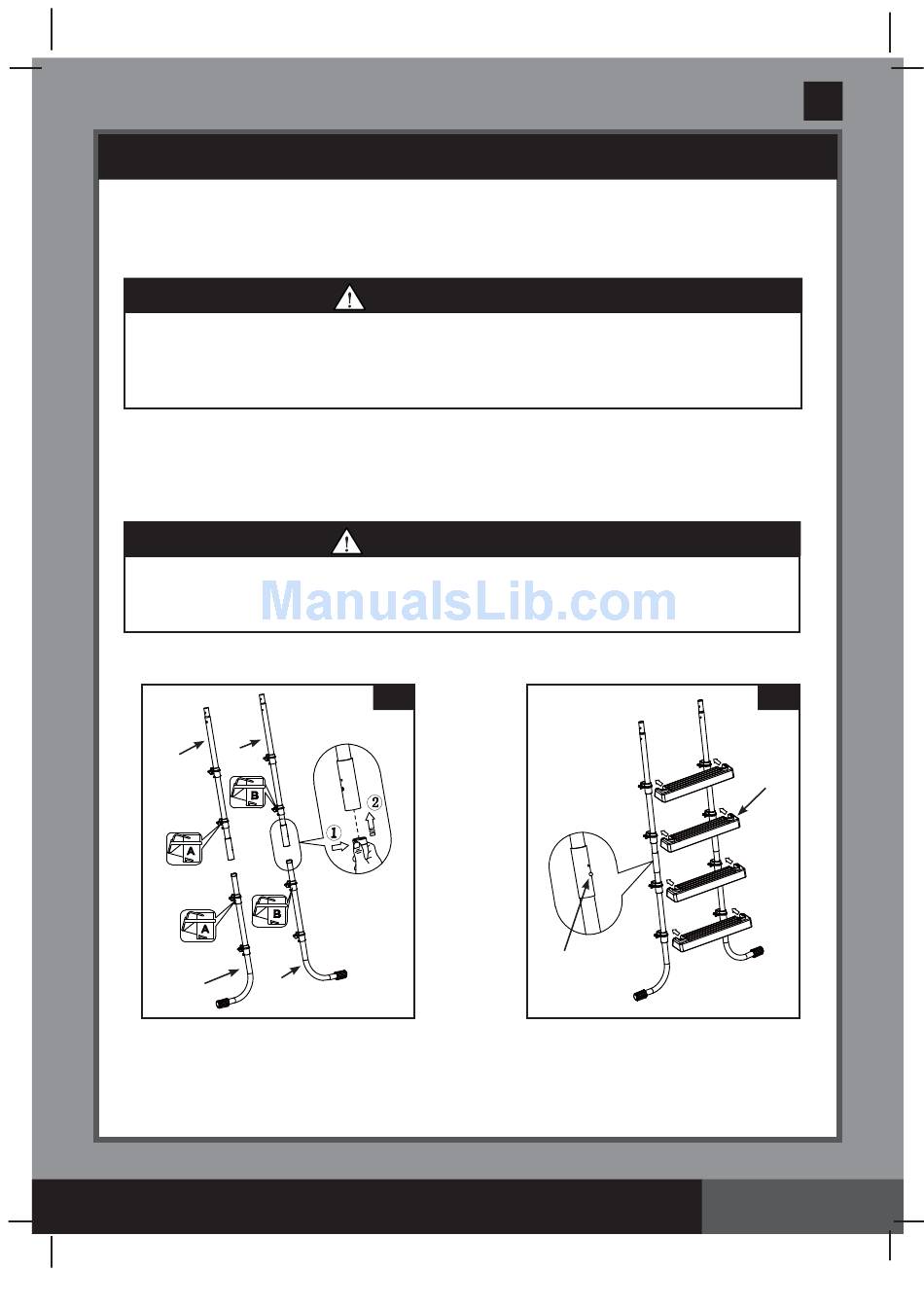

2. LEG ASSEMBLY (refer to figures 1.1 through 1.2):
A B
8
7
10
9
IMPORTANT: Make sure the legs are securely connected and locked. Check the spring
pins have snapped out before proceeding to the next step. Ensure the J-shaped legs are
pointing outwards before installing the steps.
SAVE THESE INSTRUCTIONS
(91PO) 48" 2-SECTIONS POOL LADDER ENGLISH 7.5" X 10.3" PANTONE 295U 07/16/2015
LADDER SETUP
WARNING
WARNING
1.1
Press,
hold and
insert
B
A
Spring pin
English
91PO
1.2
6
Page 5
