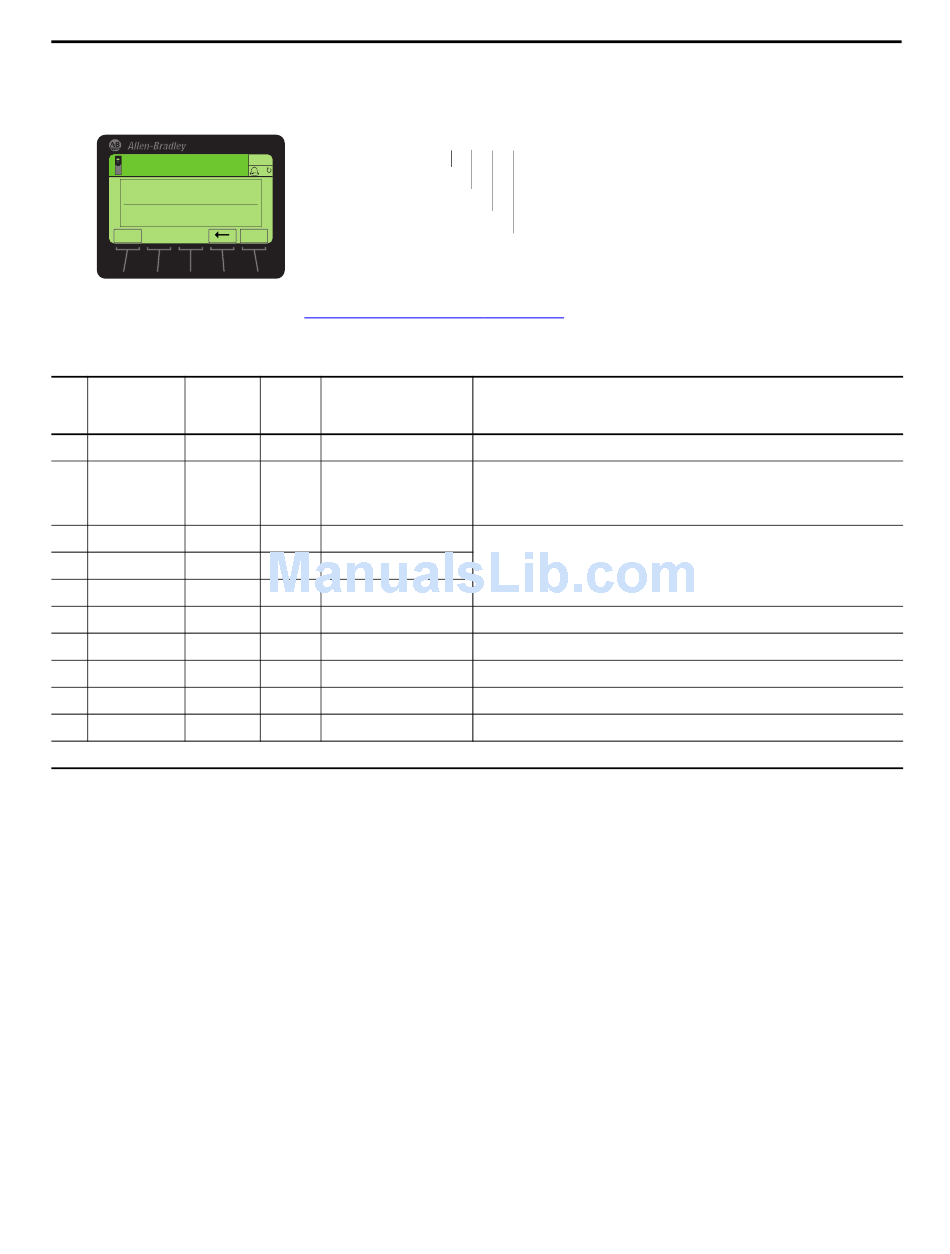

7. If required, set the value of parameters 15 [Gateway Cfg 1] through 18 [Gateway Cfg 4] to the desired value for the
gateway device.
Stopped
0.000 Hz
Edit Gateway Cfg 1
0
0 << 255
ESC
8. Reset the option module. See
Table 39 - PowerFlex 750-Series 20-750-ENETR Option Module Parameter Settings
No. Drive User
Parameter Setting
Name
2 Port Number 5
5 Net Addr Sel 13
7 IP Addr Cfg 1 192
8 IP Addr Cfg 2 168
9 IP Addr Cfg 3 1
10 IP Addr Cfg 4 xxx
11 Subnet Cfg 1 255
12 Subnet Cfg 2 255
13 Subnet Cfg 3 255
14 Subnet Cfg 4 0
Leave the remainder of the Embedded EtherNet/IP (Port 13) parameters at their default settings.
Default = 0.0.0.0
AUTO
F
[Gateway Cfg 1]
[Gateway Cfg 2]
ENTER
Reset the Option Module on page
Default Value/Options
0 4, 5, or 6
3 1 = Parameters
2 = BOOTP
3 = DHCP
0
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
255.255.255.255
[Gateway Cfg 3]
[Gateway Cfg 4]
62.
Notes
Port Number
Example IP Address.
Set to desired value.
Reference Section
