Reference Section

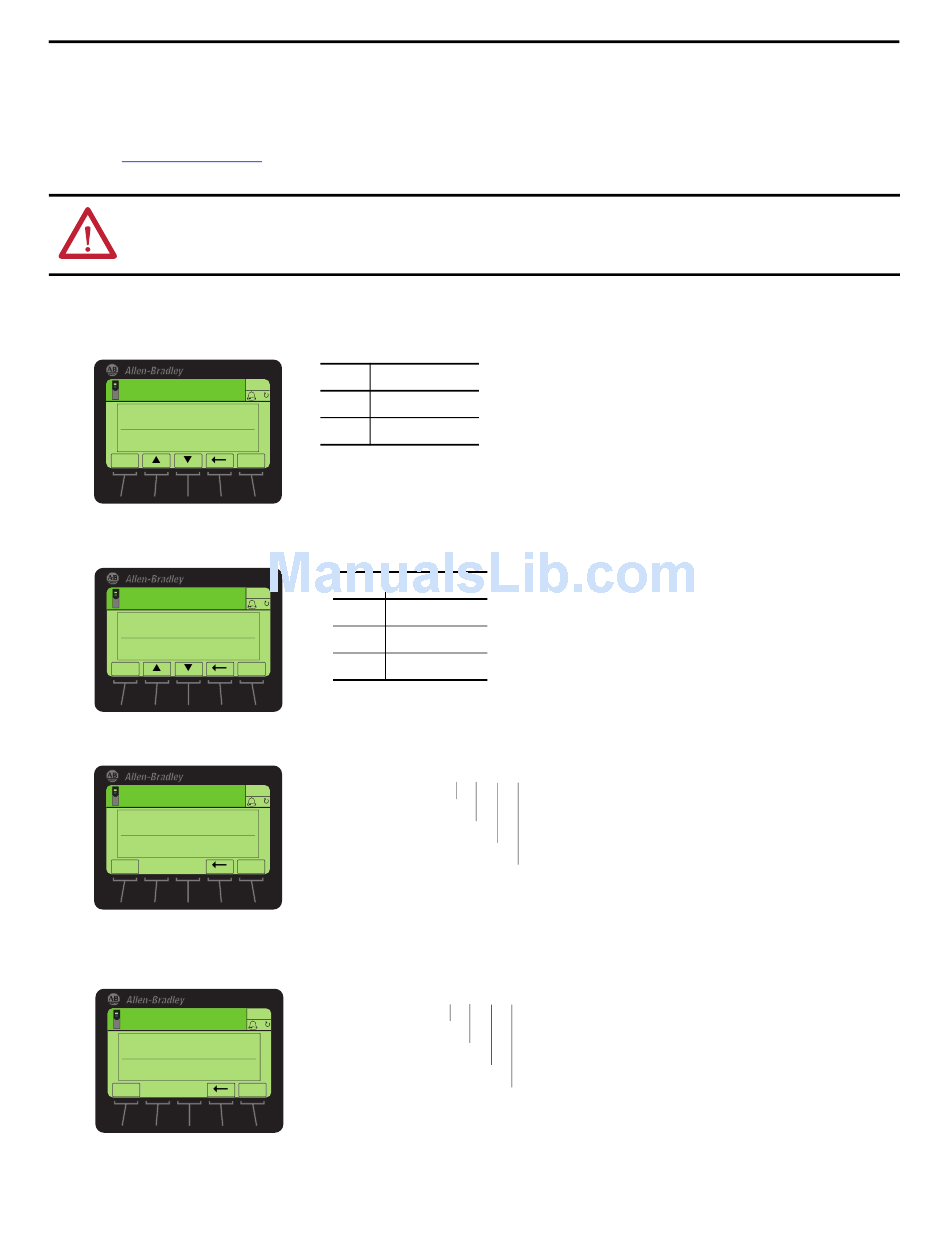

Setting the IP Address Using Adapter Parameters
1. Verify that the IP address rotary switches are set to any value other than 001...254 or 888. The default setting is 999.
See Table 38 on page 59
ATTENTION: Risk of equipment damage, injury, or death exists. Unpredictable operation may occur if you fail to verify that
parameter settings are compatible with your application. Verify that settings are compatible with your application before applying
power to the drive.
2. Apply power to the drive.
3. Set the value of parameter 36 [BOOTP] to '0' (Disabled).
Stopped
0.000 Hz
Edit BOOTP
Disabled
0 << 1
ESC
4. Set the value of parameter 5 [Net Addr Sel] to '1' (Parameters).
Stopped
0.00 Hz
Edit Net Addr Sel
DHCP
1 << 3
ESC
5. Set the value of parameters 7 [IP Addr Cfg 1] through 10 [IP Addr Cfg 4] to a unique IP address.
Stopped
0.000 Hz
Edit IP Addr Cfg 1
0
0 << 255
ESC
6. If required, set the value of parameters 11 [Subnet Cfg 1] through 14 [Subnet Cfg 4] to the desired value for the
subnet mask.
Stopped
0.000 Hz
Edit Subnet Cfg 1
0
0 << 255
ESC
60
for more information on the address settings.
Value Setting
AUTO
F
0 Disabled
0
1 Enabled (Default)
ENTER
Value Setting
AUTO
F
1 Parameters
3
2 BOOTP
3 DHCP (default)
ENTER
Default = 0.0.0.0
AUTO
F
[IP Addr Cfg 1]
[IP Addr Cfg 2]
ENTER
Default = 0.0.0.0
AUTO
F
[Subnet Cfg 1]
[Subnet Cfg 2]
ENTER
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
255.255.255.255
[IP Addr Cfg 3]
[IP Addr Cfg 4]
255.255.255.255
[Subnet Cfg 3]
[Subnet Cfg 4]
