Communication over EtherNet/IP on 20-750-ENETR Module
You will need the information gathered in Step 2: Validate the Drive Installation,
page 10 to complete the EtherNet/IP setup.
Connecting the Ethernet Cable to the Drive
This section addresses the setup on the PowerFlex 20-750-ENETR Dual-port EtherNet/IP Option module that is installed in Port 6 of
IMPORTANT
the drive.
ATTENTION: Risk of injury or death exists. The drive may contain high voltages that can cause injury or death. Remove power from
the drive. Verify power has been discharged before connecting the embedded EtherNet/IP adapter to the network.
1. Remove power from the drive.
2. Remove the drive cover and lift up the drive HIM bezel to its open position to access the drive control pod.
3. Use static control precautions.

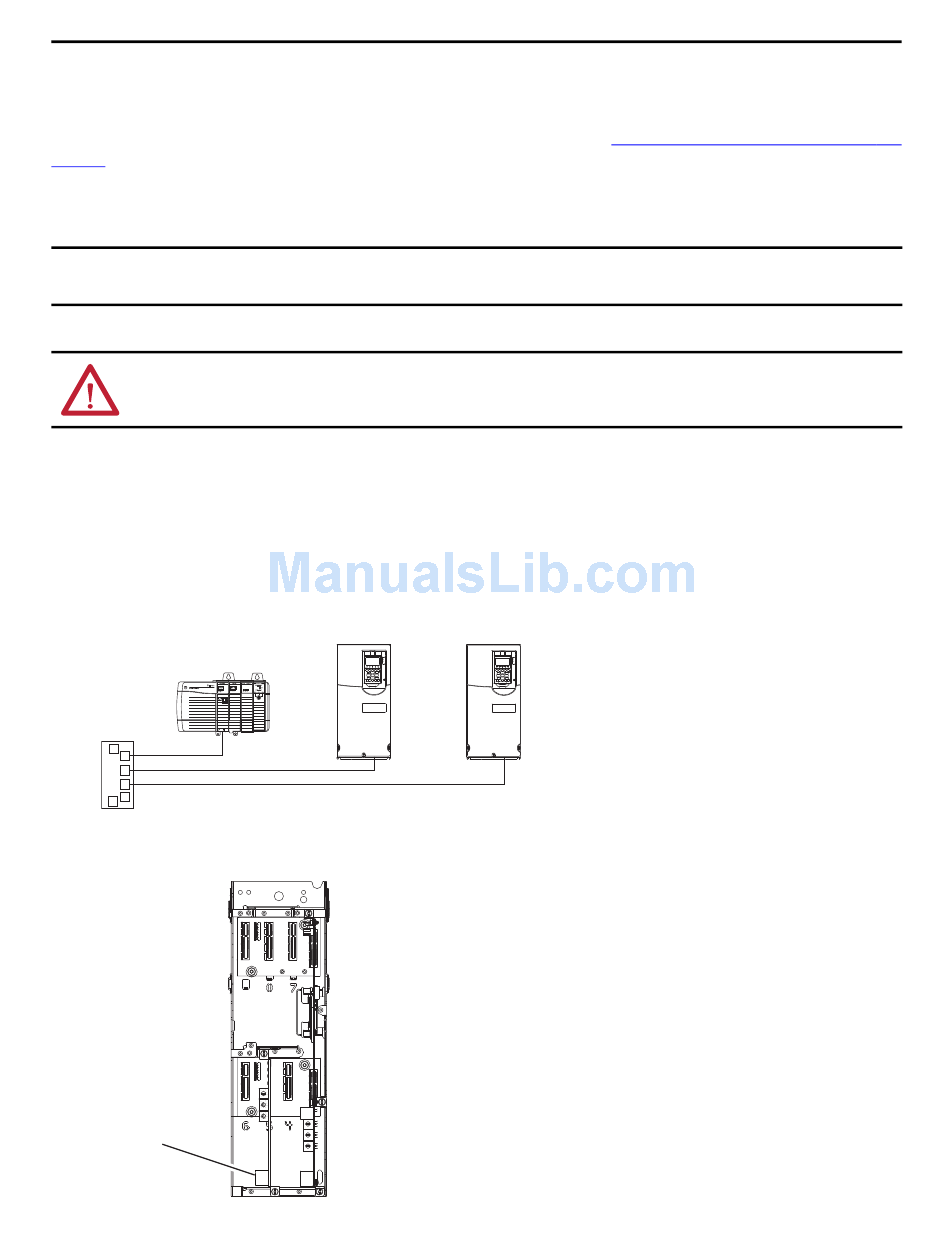

4. Connect one end of an Ethernet cable to the network. See the following figure for an example of wiring to an
EtherNet/IP network.
Controller
(ControlLogix shown with
1756-ENBT Bridge)
Ethernet
Switch
5. Route the other end of the Ethernet cable through the bottom of the PowerFlex 750-Series drive, and insert the cable
plug into the EtherNet/IP adapter mating socket.
EtherNet/IP
Port
PowerFlex 750-Series Drives
(each with EtherNet/IP adapter)
5
0
5
0
5
0
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
