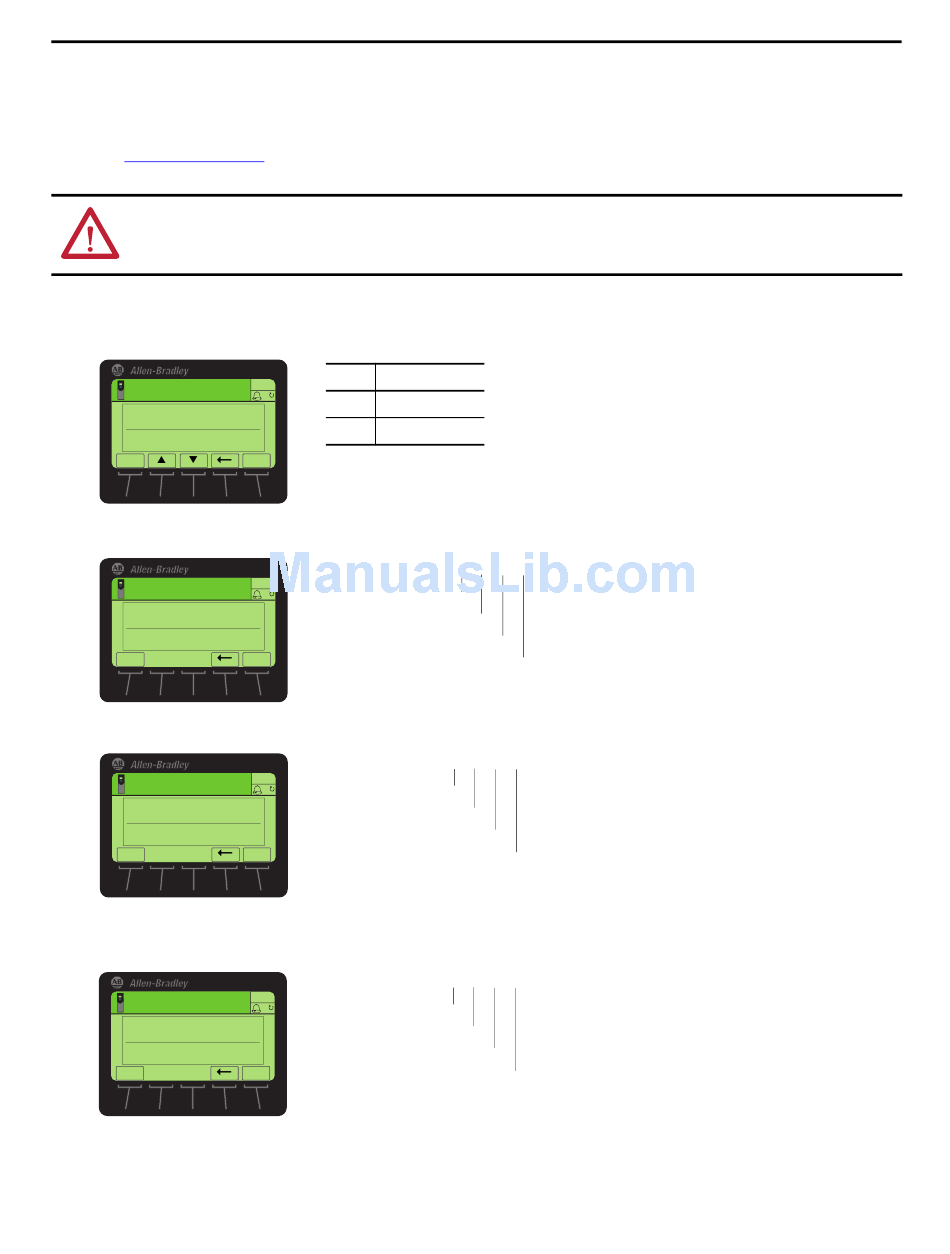

Setting the IP Address Using Adapter Parameters
1. Verify that the IP address rotary switches are set to any value other than 001...254 or 888. The default setting is 999.
See Table 35 on page 54
ATTENTION: Risk of equipment damage, injury, or death exists. Unpredictable operation may occur if you fail to verify that
parameter settings are compatible with your application. Verify that settings are compatible with your application before applying
power to the drive.
2. Apply power to the drive.
3. Set the value of parameter 36 [BOOTP] to '0' (Disabled).
Stopped
0.000 Hz
Edit BOOTP
Disabled
0 << 1
ESC
4. Set the value of parameters 38 [IP Addr Cfg 1] through 41 [IP Addr Cfg 4] to a unique IP address.
Stopped
0.000 Hz
Edit IP Addr Cfg 1
0
0 << 255
ESC
5. Set the value of parameters 42 [Subnet Cfg 1] through 45 [Subnet Cfg 4] to the desired value for the subnet mask.
Stopped
0.000 Hz
Edit Subnet Cfg 1
0
0 << 255
ESC
6. If required, set the value of parameters 46 [Gateway Cfg 1] through 49 [Gateway Cfg 4] to the desired value for the
gateway device.
Stopped
0.000 Hz
Edit Gateway Cfg 1
0
0 << 255
ESC
7. Reset the adapter by power cycling the drive or by using the HIM's Reset Device function located in the drive's
DIAGNOSTIC folder.
for more information on the address settings.
Value Setting
AUTO
F
0 Disabled
0
1 Enabled (Default)
ENTER
Default = 0.0.0.0
AUTO
F
[IP Addr Cfg 1]
[IP Addr Cfg 2]
ENTER
Default = 0.0.0.0
AUTO
F
[Subnet Cfg 1]
[Subnet Cfg 2]
ENTER
Default = 0.0.0.0
AUTO
F
[Gateway Cfg 1]
[Gateway Cfg 2]
ENTER
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
255.255.255.255
[IP Addr Cfg 3]
[IP Addr Cfg 4]
255.255.255.255
[Subnet Cfg 3]
[Subnet Cfg 4]
255.255.255.255
[Gateway Cfg 3]
[Gateway Cfg 4]
Reference Section
