Reference Section

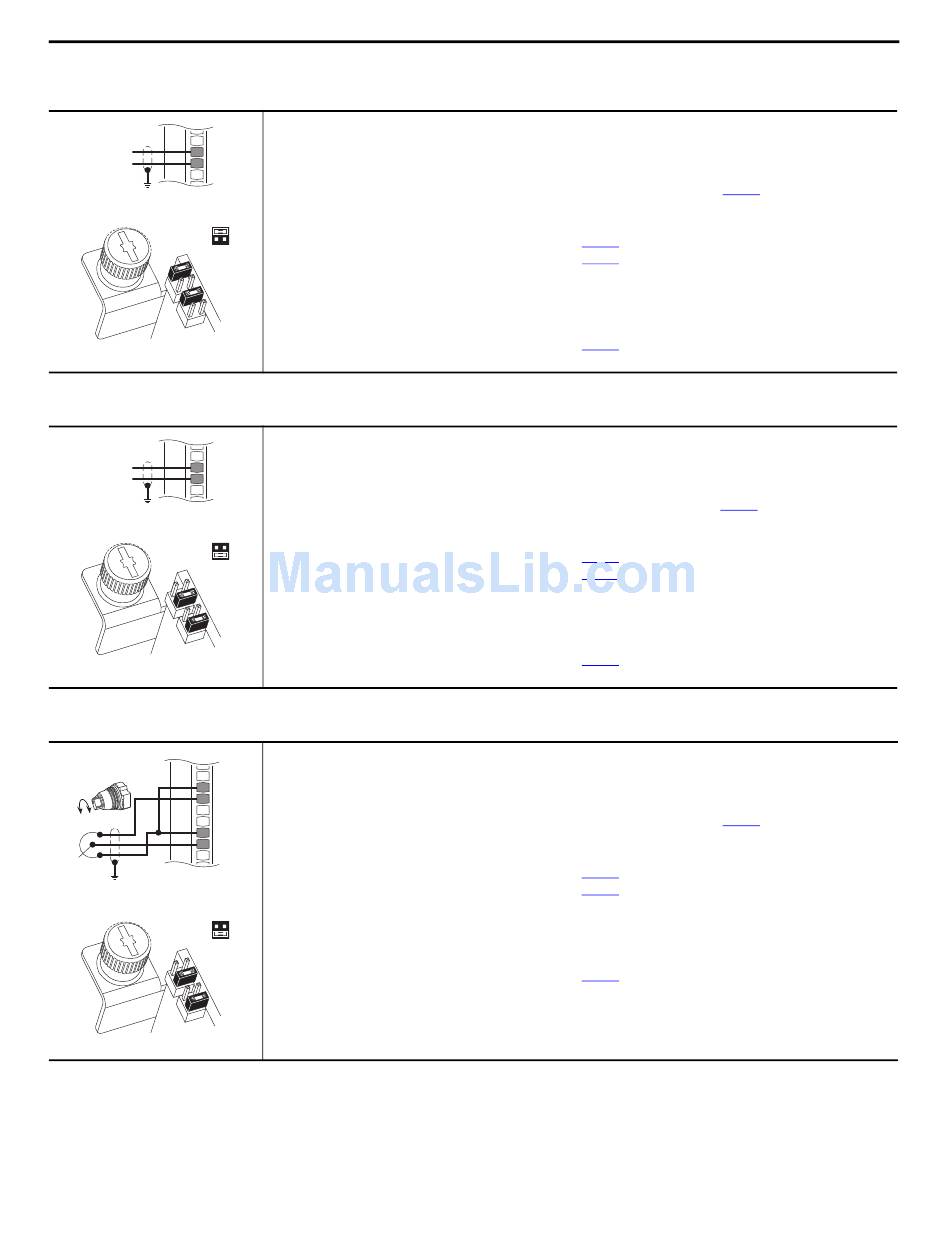

Table 30 - 0...20 mA Analog Input - Unipolar Speed Reference at Terminals Ai1±
Common
Ai1–
+
Ai1+
22-Series I/O Module TB1
Ai1
Ai0
Jumpers set to current mode.
Table 31 - 0...+10V Analog Input - Unipolar Speed Reference at Terminals Ai1±
Common
Ai1–
+
Ai1+
22-Series I/O Module TB1
Ai1
Ai0
Jumpers set to voltage mode.
Table 32 - 10k Ohm Potentiometer - Unipolar Speed Reference at Terminals Ai1±
10VC
+10V
Ai1–
Ai1+
22-Series I/O Module TB1
Ai1
Ai0
Jumpers set to voltage mode.
50
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 "Unipolar"
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 4 (or port where your 22-Series I/O Module is installed), See
Adjust Scaling
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 0: P592 [Selected Spd Ref]
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 "Unipolar"
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 4, (or port where your 22-Series I/O Module is installed)See
Adjust Scaling
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 0: P592 [Selected Spd Ref]
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 "Unipolar"
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 4 (or port where your 22-Series I/O Module is installed), See
Adjust Scaling
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 4 (or port where your 22-Series I/O Module is installed), See
Port 0: P592 [Selected Spd Ref]
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
page 10: P60 [Anlg In1 Value]
page 10: P61 [Anlg In1 Hi] = 20 mA
page 10: P62 [Anlg In1 Lo] = 0 mA
page 10: P60 [Anlg In1 Value]
page 10: P60 [Anlg In1 Value]
page 10: P61 [Anlg In1 Hi] = 10 Volt
page 10: P62 [Anlg In1 Lo] = 0 Volt
page 10: P60 [Anlg In1 Value]
page 10: P60 [Anlg In1 Value]
page 10: P61 [Anlg In1 Hi] = 10 Volt
page 10: P62 [Anlg In1 Lo] = 0 Volt
page 10: P60 [Anlg In1 Value]
