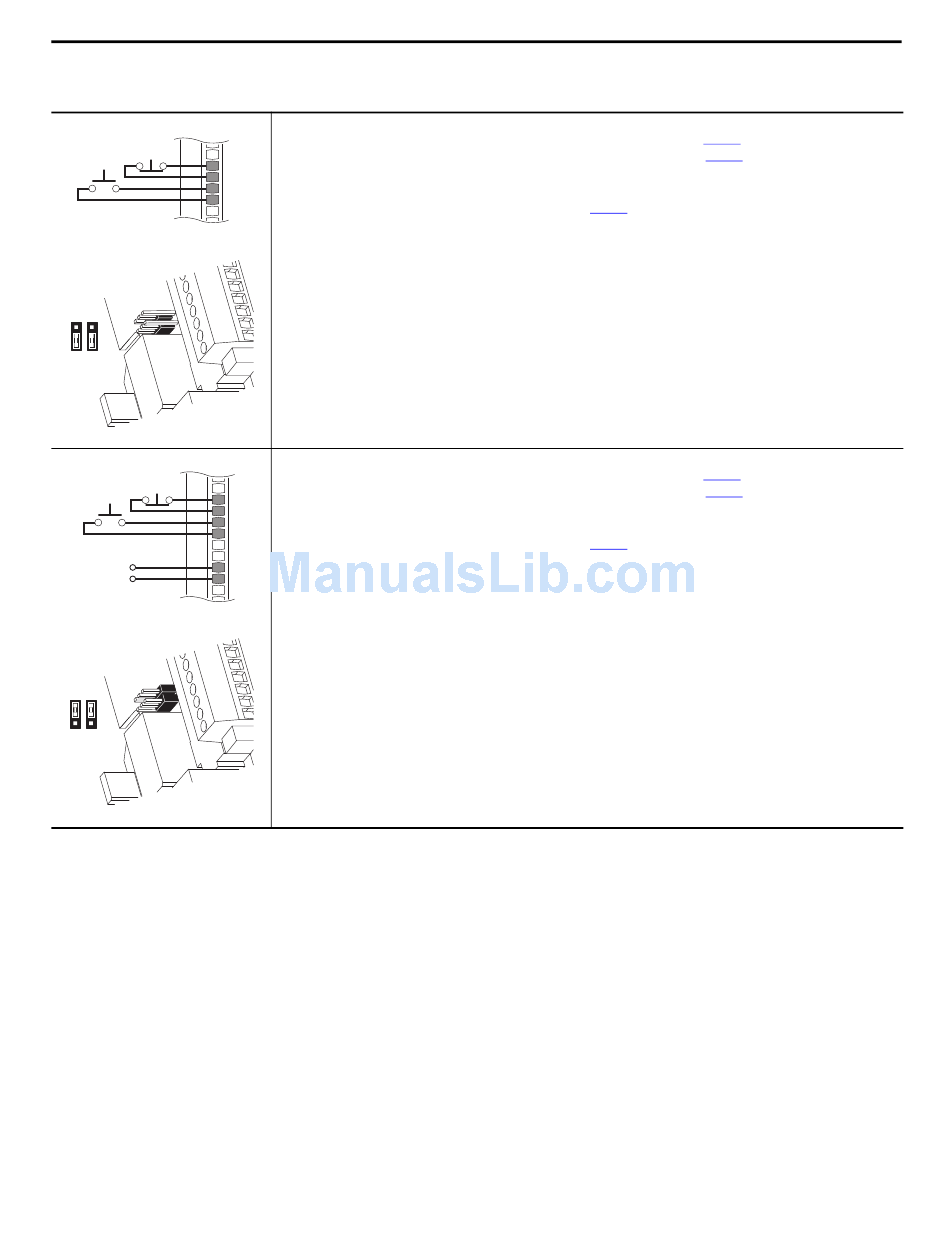

Table 24 - 3-Wire Control on 11-Series I/O Module
Internal Supply
Stop
Start
Di0
Di0P
Di1
Di1P
11-Series I/O Module TB1
3 3
P3 P8
1 1
Jumpers set to internal supply source.
External Supply
Stop
Stop
Start
Start
Di0
Di0P
Di1
Di1P
+24V or +120V Ip
Common
Common
Ic
11-Series I/O Module TB1
3 3
P3 P8
1 1
Jumpers set to external supply source.
Set Selection
Port 0: P158 [DI Stop] = Port 4 (or port where your 11-Series I/O Module is installed), See
Port 0: P161 [DI Start] = Port 4 (or port where your 11-Series I/O Module is installed), See
View Results
Port 4 (or port where your 11-Series I/O Module is installed), See
Port 0: P935 [Drive Status 1]
Set Selection
Port 0: P158 [DI Stop] = Port 4 (or port where your 11-Series I/O Module is installed), See
Port 0: P161 [DI Start] = Port 4 (or port where your 11-Series I/O Module is installed), See
View Results
Port 4 (or port where your 11-Series I/O Module is installed), See
Port 0: P935 [Drive Status 1]
IMPORTANT: Connect 24V supply only to 20-750-1132C-2R or 20-750-1133C-1R2T.
Connect 120V supply only to 20-750-1132D-2R.
