Reference Section

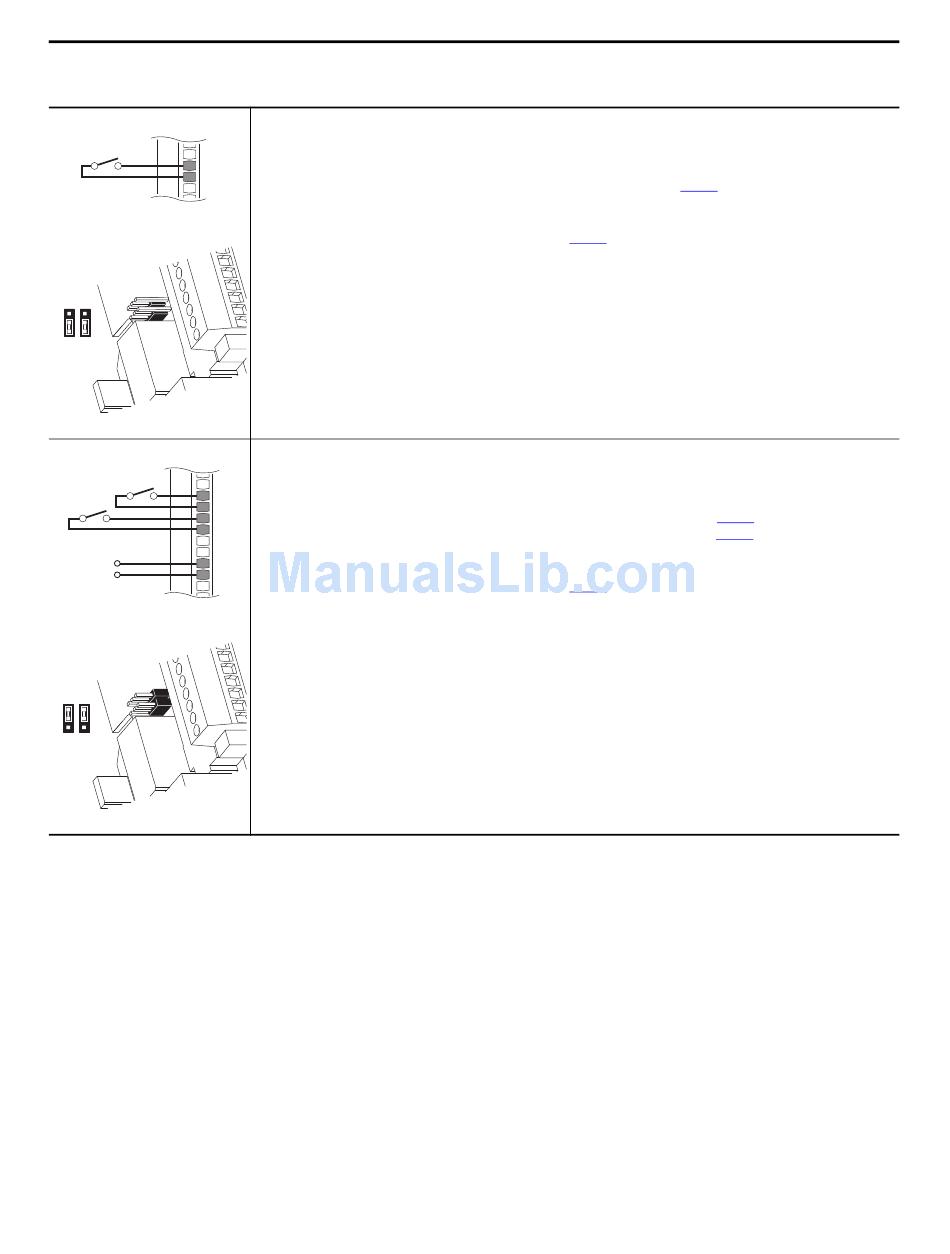

Table 23 - 2-Wire Control on 11-Series I/O Module
Non-Reversing - Internal Supply
Stop-Run
Di0
Di0P
11-Series I/O Module TB1
3 3
P8
P3
1 1
Jumpers set to internal supply source.
Reversing - External Supply
Run Fwd
Di0
Run Rev
Di0P
Di1
Di1P
+24V Ip
Common
Ic
11-Series I/O Module TB1
3 3
P3 P8
1 1
Jumpers set to external supply source.
46
Set Direction Mode
Port 0: P308 [Direction Mode] = 2 "Rev Disable"
Set Selection
Port 0: P163 [DI Run] = Port 4 (or port where your 11-Series I/O Module is installed), See
View Results
Port 4 (or port where your 11-Series I/O Module is installed), See
Port 0: P935 [Drive Status 1]
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 "Unipolar"
Set Selection
Port 0: P164 [DI Run Forward] = Port 4 (or port where your 11-Series I/O Module is installed), See
Port 0: P165 [DI Run Reverse] = Port 4 (or port where your 11-Series I/O Module is installed), See
View Results
Port 4 (or port where your 11-Series I/O Module is installed), See
Port 0: P935 [Drive Status 1]
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
page 10: P1 [Dig In Sts], bit 0 = Input 0
page 10: P1 [Dig In Sts]
page 10: P1 [Dig In Sts], bit 0 = Input 0
page 10: P1 [Dig In Sts], bit 1 = Input 1
page 10: P1 [Dig In Sts]
