Reference Section

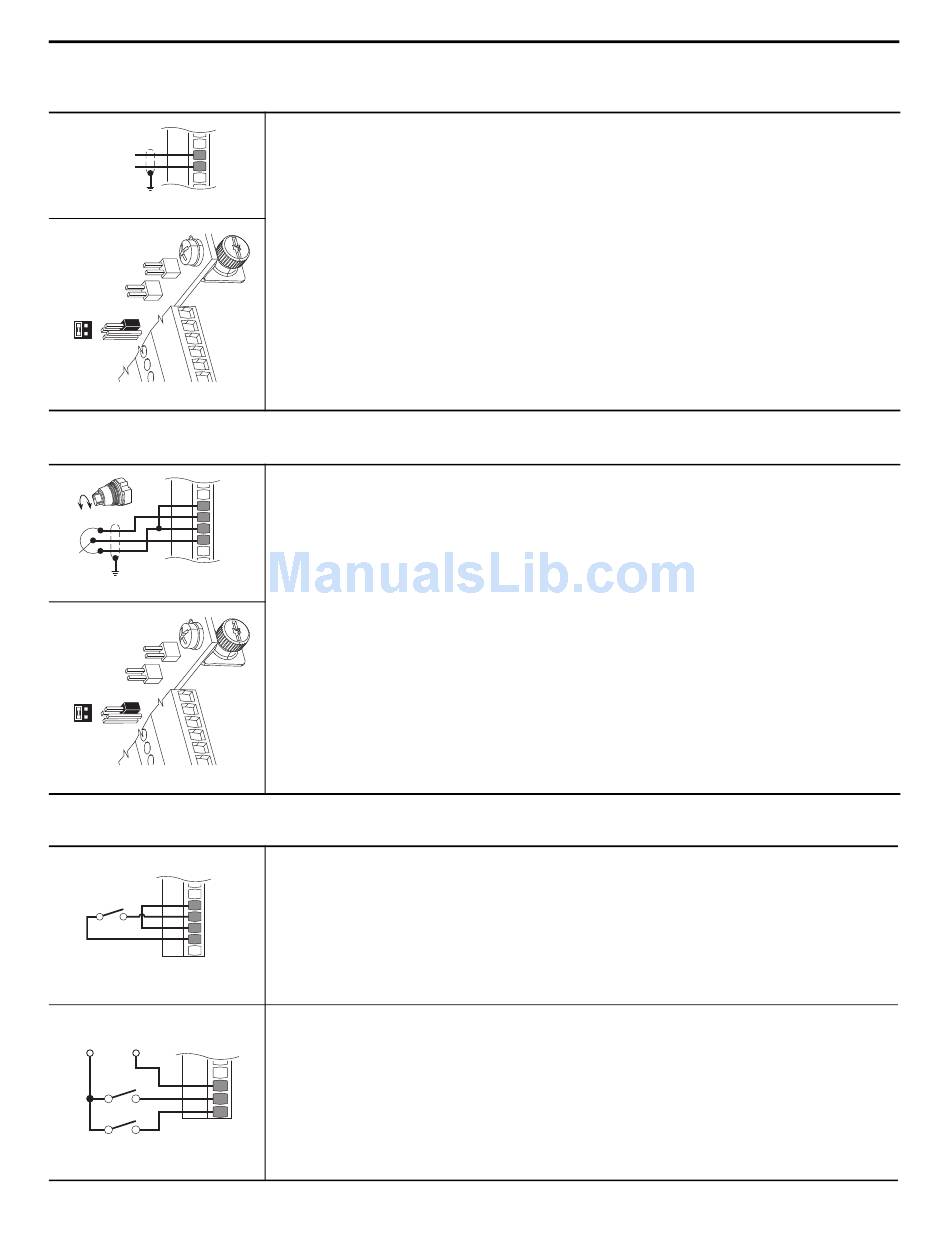

Table 14 - 0...+10V Analog Input - Unipolar Speed Reference
Common
Ai0–
+
Ai0+
753 Main Control Board TB1
3 1
J4
4 2
Jumper set to voltage mode.
Table 15 - 10k Ohm Potentiometer - Unipolar Speed Reference
10VC
+10V
Ai0–
Ai0+
753 Main Control Board TB1
3 1
J4
4 2
Jumper set to voltage mode.
Table 16 - 2-Wire Control on PF753 Main Control Board
Non-Reversing - Internal Supply
Stop-Run
24VC
+24V
Di C
Di 1
753 Main Control Board TB1
Reversing - External Supply
Common
+24V
Run Fwd
Run Rev
753 Main Control Board TB1
42
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 "Unipolar"
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 0: P260 [Anlg In0 Value]
Adjust Scaling
Port 0: P261 [Anlg In0 Hi] = 10 Volt
Port 0: P262 [Anlg In0 Lo] = 0 Volt
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 0: P260 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 "Unipolar"
Set Selection
Port 0: P545 [Spd Ref A Sel] = Port 0: P260 [Anlg In0 Value]
Adjust Scaling
Port 0: P261 [Anlg In0 Hi] = 10 Volt
Port 0: P262 [Anlg In0 Lo] = 0 Volt
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
View Results
Port 0: P260 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Set Direction Mode
Port 0: P308 [Direction Mode] = 2 "Rev Disable"
Set Selection
Port 0: P163 [DI Run] = Port 0: P220 [Digital In Sts], bit 1 = Digital In 1
View Results
Port 0: P220 [Digital In Sts]
Port 0: P935 [Drive Status 1]
Set Direction Mode
Port 0: P308 [Direction Mode] = 0 "Unipolar"
Set Selection
Port 0: P164 [DI Run Forward] = Port 0: P220 [Digital In Sts], bit 1 = Digital In 1
Di C
Di 1
Port 0: P165 [DI Run Reverse] = Port 0: P220 [Digital In Sts], bit 2 = Digital In 2
Di 2
View Results
Port 0: P220 [Digital In Sts]
Port 0: P935 [Drive Status 1]
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
