Reference Section

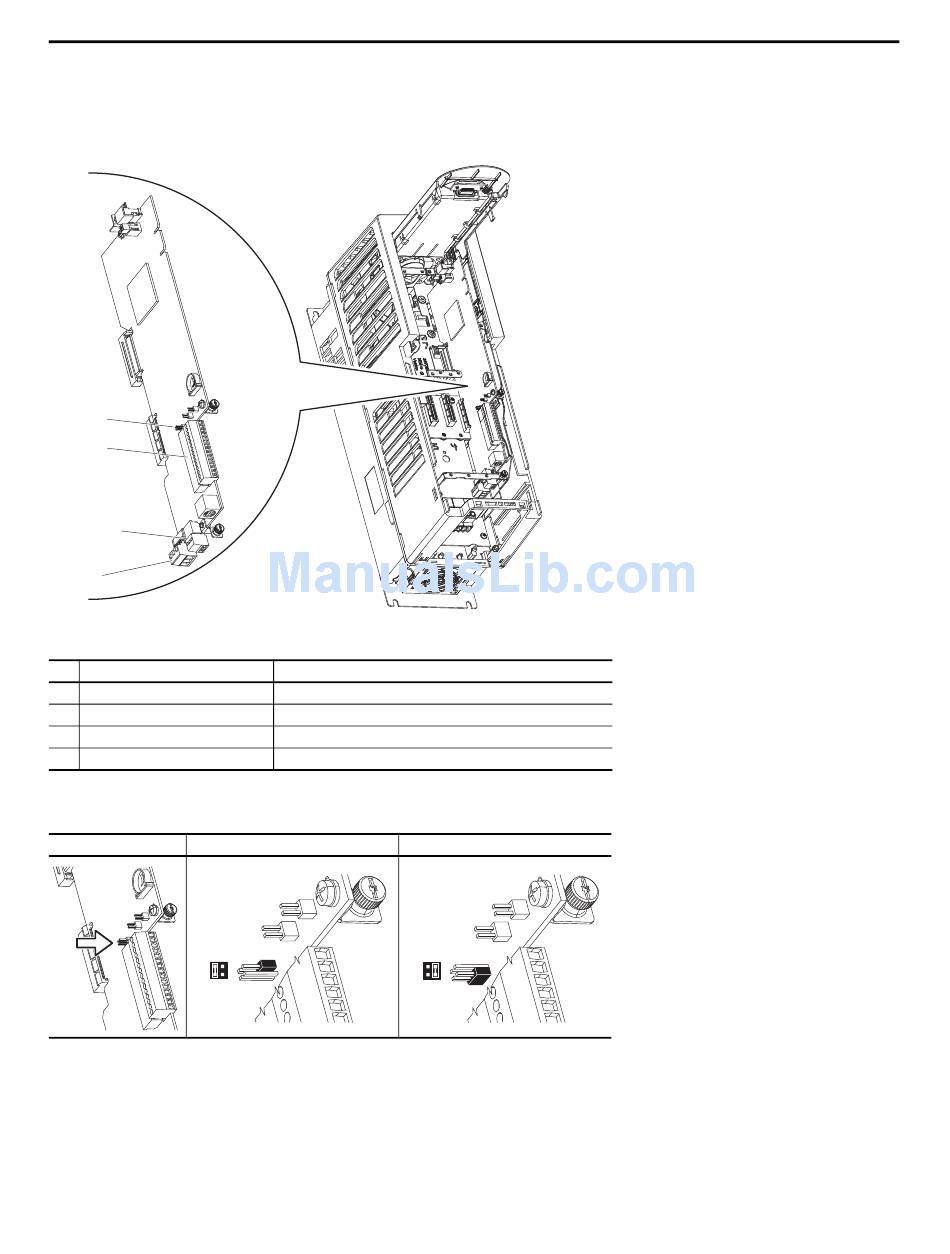

Connections on PowerFlex 753 Main Control Board
Terminal block TB1 and the input mode jumpers are mounted directly on the main control board.
SK-R1-MCB1-PF753
1
2
3
4
Table 10 - 753 Main Control Board Details
No. Name
1 Jumper J4 Input Mode
2 TB1
3 TB3
4 TB2
Table 11 - J4 Input Mode Jumper
Jumper Position Voltage Mode
3 1
J4
4 2
40
Description
Analog input mode jumper. Selects voltage mode or current mode.
I/O terminal block.
Digital input terminal block.
Relay terminal block.
Current Mode
3 1
J4
4 2
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
