Reference Section

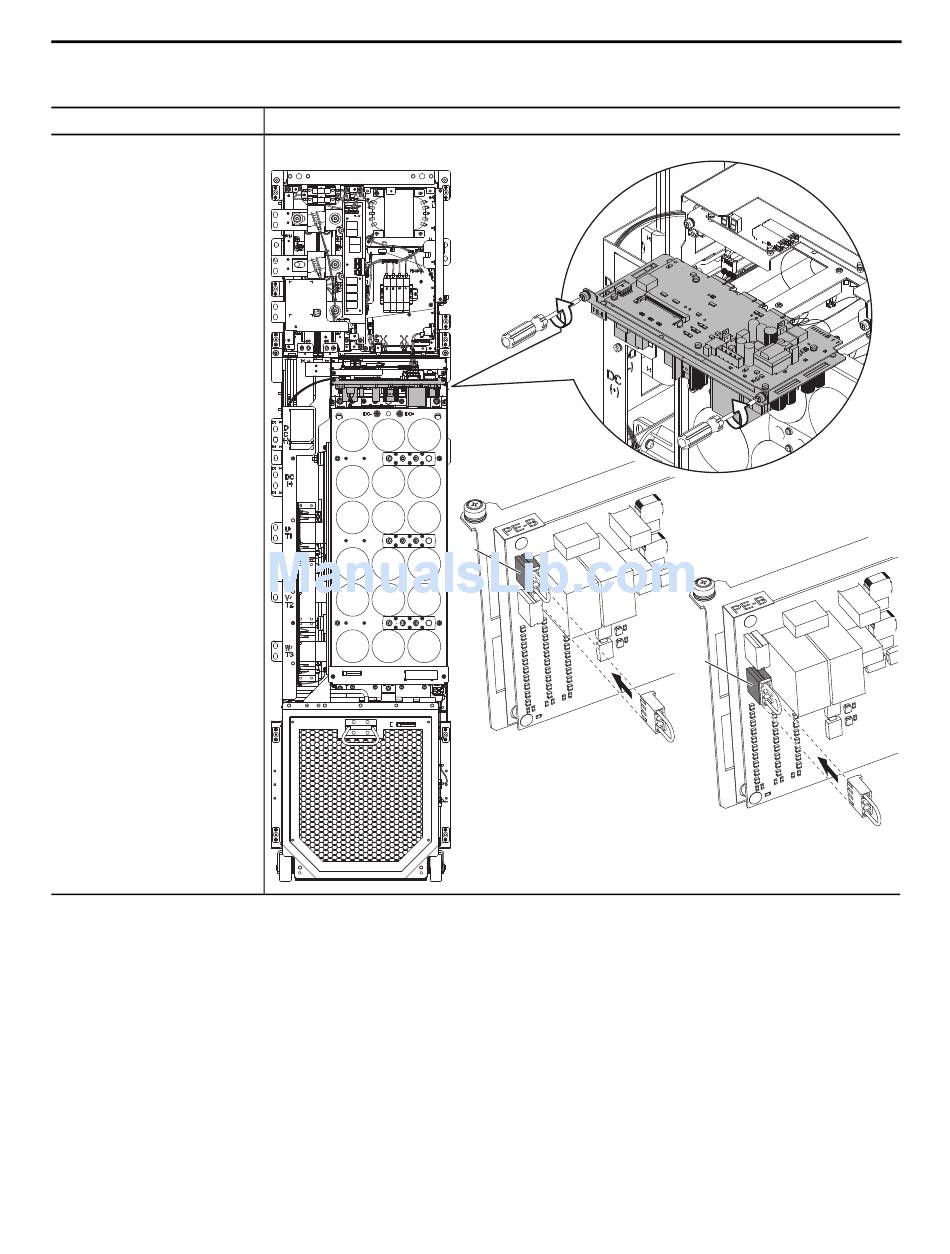

Table 1 - Power Jumper Locations for Frames 1...10
(Continued)
Drive
Jumper Locations
Frames 8...10
AC Input Drive Shown
PE-B Plug-type Connector
• Tray Torque: 1.86 N•m (16.0 lb•in)
• Tool: T20 Hexalobular
Connected
J3
Disconnected
J4
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
31
