Reference Section

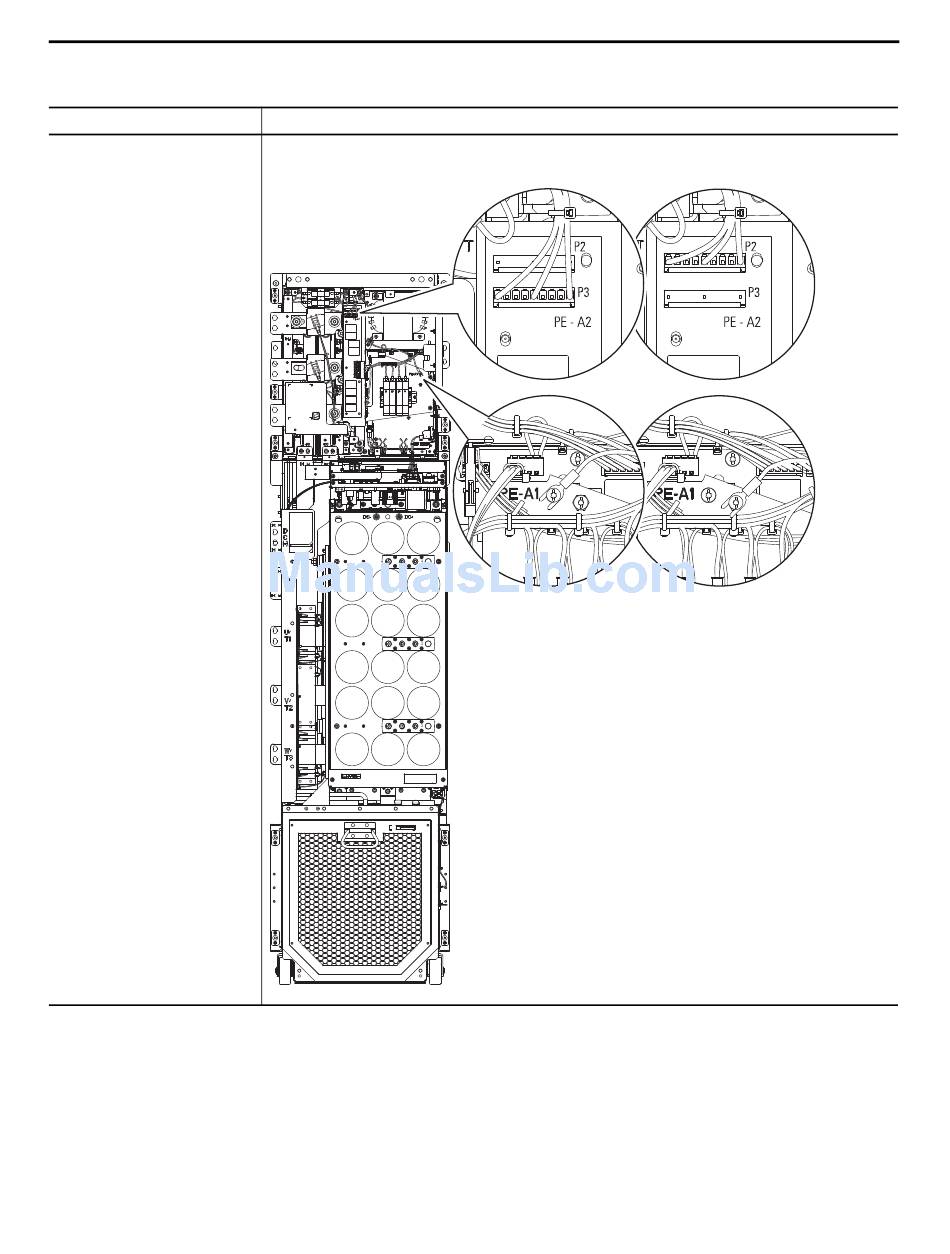

Table 1 - Power Jumper Locations for Frames 1...10
Drive
Frames 8...10
PE-A1 Wire Connector
• Torque: 1.8 N•m (16.0 lb•in)
• Tool: T20 Hexalobular
PE-A2 Plug-type Connector
30
(Continued)
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Jumper Locations
Connected Disconnected
