Reference Section
Power Jumper Locations
Wall/flange mount frames 1, 6, and 7 and floor mount frames 8...10 use jumper wires to complete an electrical connection
when installed.
Wall/flange mount frames 2...5 use jumper screws to complete an electrical connection when installed.

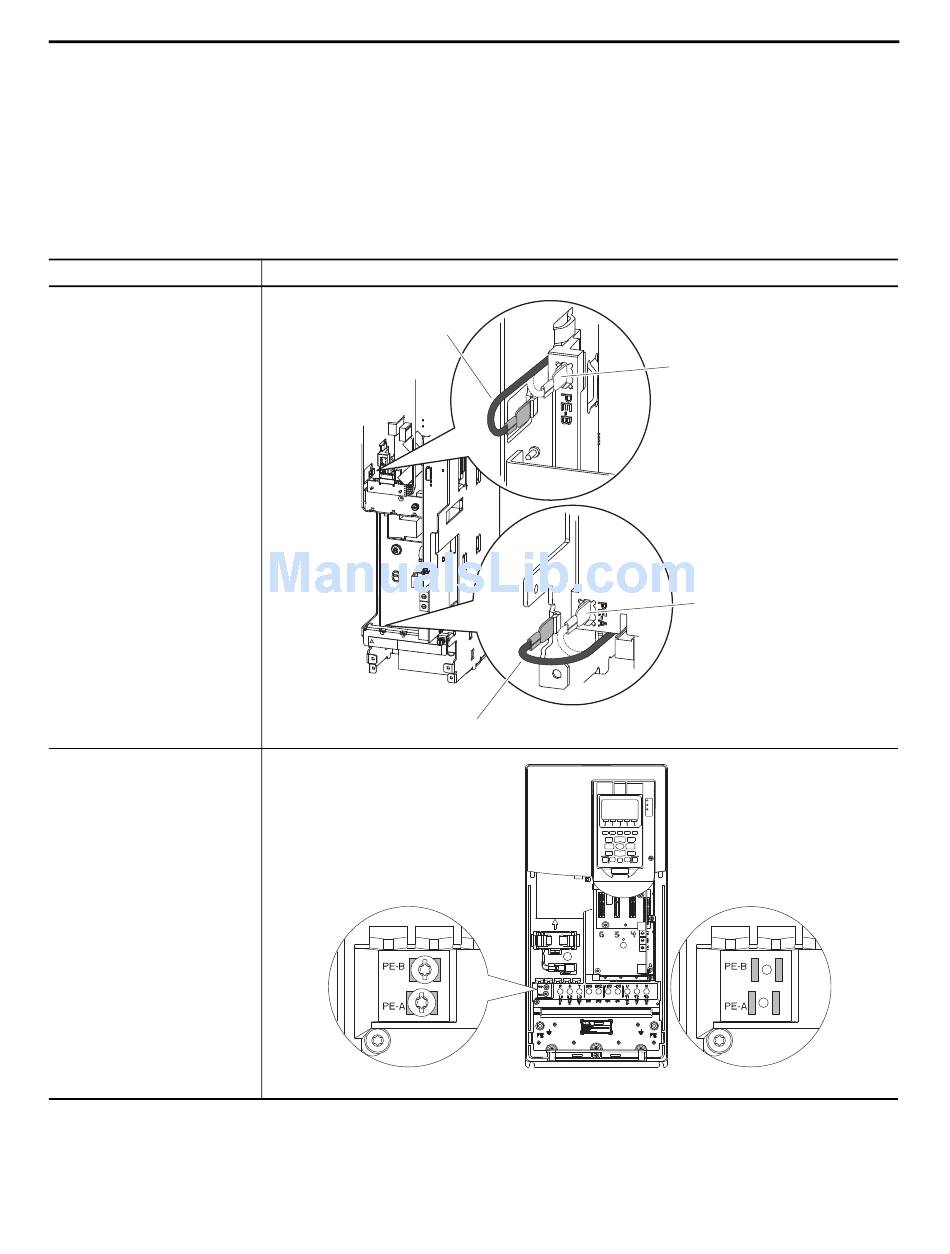

Table 1 - Power Jumper Locations for Frames 1...10
Drive
Frame 1
Spade Connectors
Frames 2...5
Screw Connectors
• Torque: 1.36 N•m (12.0 lb•in)
• Tool: 6.4 mm (0.25 in.) flat
or T15 Hexalobular
28
Connected
Connected
)
Connected
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Jumper Locations
PE-B
PE-A
Frame 4 Shown
Disconnected
Disconnected
Disconnected
