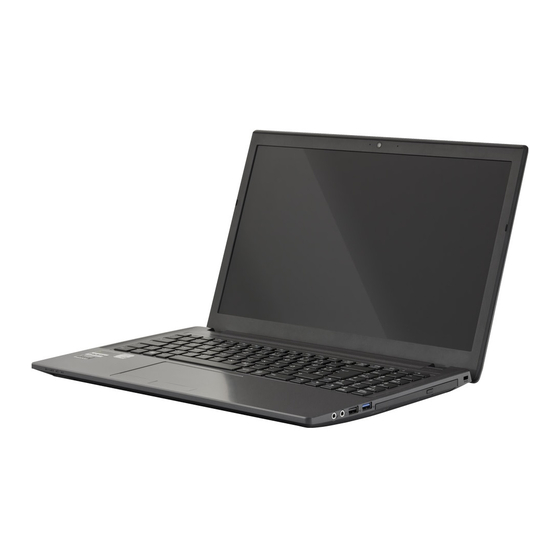

Schenker M505 Service Manual
  1. Manuals
  2. Brands
  3. Schenker Manuals
  4. Laptop
  5. M505
  6. Service manual

Schenker M505 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M505 and is the answer not in the manual?

Questions and answers

Related Manuals for Schenker M505

Summary of Contents for Schenker M505

  • Page 2: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...

  • Page 3: Power Safety

    Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data. Take care when using peripheral devices. Use only approved brands of Unplug the power cord before peripherals.

  • Page 4: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

  • Page 5: Related Documents

    Preface Related Documents You may also need to consult the following manual for additional information: User’s Manual on CD/DVD This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro- gram. It also describes the installation and operation of the utility programs provided with the notebook PC. System Startup 1.

  • Page 6: Specifications

    Introduction Specifications Processor Options LCD Options Intel® Core™ i7 Processor 15.6" (39.62cm) HD / FHD i7-4910MQ (2.90GHz) Video Adapter 8MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W  i7-4810MQ (2.80GHz), i7-4710MQ (2.50GHz) Intel® Integrated GPU and NVIDIA® Discrete GPU Latest Specification Information 6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W Supports Microsoft Hybrid Graphics The specifications listed here are correct at the...
  • Page 7 Introduction Interface Communication Dimensions & Weight One USB 2.0 Port Built-In Gigabit Ethernet LAN 374mm (w) * 252mm (d) * 14 - 31.4mm (h) Two USB 3.0 Ports 1.0M HD PC Camera Module One eSATA Port (USB 3.0 Combo) (Factory Option) 2.0M FHD PC Camera Module 374mm (w) * 249.5mm (d) * 14.8 - 32.8mm (h) One HDMI-Out Port (Factory Option) 3G or 4G M.2 Module...

  • Page 8: External Locator - Top View With Lcd Panel Open

    Introduction External Locator - Top View with LCD Panel Open Figure 1 Top View 1. PC Camera 2. Built-In Microphone 3. *PC Camera LED *When the PC camera is in use, the LED will be illuminated in red. 4. LCD 5.

  • Page 9: External Locator - Front & Right Side Views

    Introduction External Locator - Front & Right Side Views Figure 2 Front View 1. LED Indicator 2. Multi-in-1 Card Reader FRONT VIEW Figure 3 Right Side View 1. Microphone-In RIGHT SIDE VIEW Jack 2. Headphone-Out Jack 3. USB Ports 4. Optical Device Drive Bay 5.

  • Page 10: External Locator - Left Side & Rear View

    Introduction External Locator - Left Side & Rear View Figure 4 Left Side View 1. DC-In Jack 2. Vent 3. External Monitor LEFT SIDE VIEW Port 4. RJ-45 LAN Jack 5. Combined eSATA/ USB 3.0 Port 6. HDMI-Out Port 7. USB 3.0 Ports Figure 5 REAR VIEW Rear View...

  • Page 11: External Locator - Bottom View

    Introduction External Locator - Bottom View Figure 6 Bottom View 1. Battery 2. Component Bay Cover 3. Vent 4. Multi-in-1 Card Reader 5. Speakers  Overheating To prevent your com- puter from overhea- ting, make sure no- thing blocks any vent while the computer is in use.

  • Page 12: Removing The Battery

    Disassembly Removing the Battery Figure 1 Battery Removal 1. Turn the computer off, and turn it over. 2. Slide the latch in the direction of the arrow (Figure 1a a. Slide the latch and hold it 3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a in place.

  • Page 13: Removing The Keyboard

    Disassembly Removing the Keyboard Figure 2 Keyboard Removal 1. Turn off the computer, turn it over, remove the battery (page 2 - 2. Carefully press at point , from the bottom of the computer to unsnap the LED cover module (use the eject pin a.

  • Page 14: Removing The Hard Disk Drive

    Disassembly Removing the Hard Disk Drive Figure 3 HDD Assembly The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm Removal or 7mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.
  • Page 15 Disassembly 4. Remove the component bay cover (Figure 4c Figure 4 5. Lift the HDD sponge up at point and grip the tab to slide the hard disk assembly in the direction of arrow HDD Assembly lift the hard disk assembly (Figure 4d Removal (cont’d.) 6.
  • Page 16 Disassembly Hard Disk Size Note (Foam Rubber Insert) Note that the hard disks pictured on the following pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard disk drives will be installed. For more information contact your distributor/supplier, and bear in mind your warranty terms.

  • Page 17: Removing The Optical (Cd/Dvd) Device

    Disassembly Removing the Optical (CD/DVD) Device Figure 6 Optical Device 1. Turn off the computer, and remove the battery (page 2 - Removal 2. Locate the component bay cover and remove screws (Figure 6a 3. Remove the component bay cover in the direction of the arrow (Figure 6b).
  • Page 18 Disassembly 6. Carefully pry the bezel off the optical device at point (Figure 7e Figure 7 7. Separate the bezel and the optical device. Optical Device 8. Reverse the process to attach the front bezel with the new optical device at point (Figure 7g).

  • Page 19: Removing The System Memory (Ram)

    Disassembly Removing the System Memory (RAM) Figure 8 RAM Module The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting Removal DDR3L up to 1600 MHz. The main memory can be expanded up to 16GB. The total memory size is automatically de- tected by the POST routine once you turn on your computer.
  • Page 20 Disassembly 5. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the Figure 9 arrows (Figure 9c). The RAM module will pop-up Figure 9d , and you can then remove it RAM Module 6.

  • Page 21: Removing The Wireless Lan Module

    Disassembly Removing the Wireless LAN Module Figure 13 Wireless LAN 1. Turn off the computer, turn it over, remove the battery (page 2 - 5) and the component bay cover (page 2 - Module Removal 2. The Wireless LAN module will be visible at point on the mainboard (Figure 13a).

  • Page 22: Wireless Lan, Combo, 3G & Lte Module Cables

    Disassembly Wireless LAN, Combo, 3G & LTE Module Cables Note that the cables for connecting to the antennae on WLAN, WLAN & Bluetooth Combo, 3G and LTE modules are not labelled. The cables/covers (each cable will have either a black or transparent cable cover) are color coded for iden- tification as outlined in the table below.

  • Page 23: Removing The 3G Module

    Disassembly Removing the 3G Module Figure 14 3G Module Removal 1. Turn off the computer, turn it over, remove the battery (page 2 - 14) and the component bay cover (page 2 - 12). 2. The 3G module will be visible at point on the mainboard (Figure 14a).

  • Page 24: Removing And Installing The Msata Module

    Disassembly Removing and Installing the MSATA Module Figure 15 MSATA Removal Procedure MSATA Module Removal 1. Turn off the computer, remove the battery (page 2 - 14), and component bay cover (page 2 - 2. Locate the module, it is visible at point Figure 15a a.

  • Page 25: Msata Installation Procedure

    Disassembly MSATA Installation Procedure Figure 16 1. Place the thermal pad as shown (Figure 16a). MSATA Module 2. Insert the module in the computer Figure 16b Installation 3. Tighten the screw to secure it in place (Figure 16c). a. Place the thermal pad. b.
