Summary of Contents for Vivitek DU6675

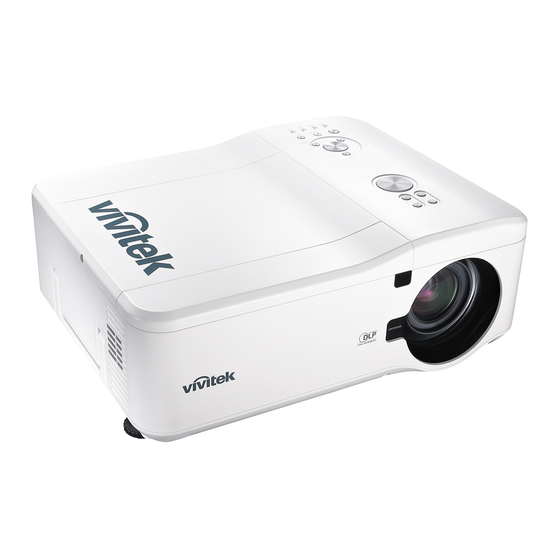

- Page 1 User's Manual User's Manual DU6675...
-
Page 2: Table Of Contents
DU6675 DLP Projector - User's Manual Table of Contents Copyright .........................4 Important Safety Guidelines ..................5 FCC NOTIFICATION..........................5 CE NOTIFICATION ..........................5 NOTIFICATION (Canada) ........................5 AC Power Cord for North/Middle/South and Taiwan ................5 Disposal of Old Electric and Electronic Equipment ................6 Important Recycling Instructions ......................6 Installation and Use Notice ........................6... - Page 3 DU6675 DLP Projector - User's Manual Using On-Screen Display.....................33 Navigating the OSD ..........................33 Menu Tree ............................34 OSD Operation - PICTURE .........................37 OSD Operation - SIGNAL ........................40 OSD Operation - SETUP ........................41 OSD Operation - INSTALLATION ......................45 OSD Operation - SERVICE........................48 Maintenance ........................49...
-
Page 4: Copyright
DU6675 DLP Projector - User's Manual Copyright Copyright The User's Manual (including all pictures, illustrations and software) is protected by the international copyright right law. All rights are reserved. No duplication of the manual or any content included in the manual is allowed without the written consent of the manufacturer. -
Page 5: Important Safety Guidelines
DU6675 DLP Projector - User's Manual Important Safety Guidelines Thank you for purchasing the high quality product! Read the Manual carefully to obtain the best performance. The Manual provides instructions to use the menu and implement operation. FCC NOTIFICATION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Disposal Of Old Electric And Electronic Equipment
DU6675 DLP Projector - User's Manual Disposal of Old Electric and Electronic Equipment The symbol on your product or the package represents that the product should not be treated as the normal household waste when discarded but should be carried to the recycling location of the waste electric and electronic equipment. -
Page 7: Introduction
DU6675 DLP Projector - User's Manual Introduction The User's Manual describes the installation, setup and operation of the DU6675 projector and provides assistance to the installation personnel and the end-user to fully develop the performance of the projector. Vivitek has made every efforts to ensure that the information in the Manual is correct at the time of printing. -
Page 8: Packing Checklist
DU6675 DLP Projector - User's Manual Packing Checklist The following items are included in the packaging box of the DU6675 projector. If any loss or damage to any item, contact your dealer or the Vivitek customer service center. AC power cord... -
Page 9: Projector Overview
DU6675 DLP Projector - User's Manual Projector Overview Front-right View 1. Lamp Cover Remove cover to replace lamp or color wheel. 2. Lens Hood Remove lens cap before use. 3. Control Panel Press the button to operate the OSD menu or adjust the lens settings, refer to OSD controls. -
Page 10: Bottom View
DU6675 DLP Projector - User's Manual Bottom View... -
Page 11: Control Panel
DU6675 DLP Projector - User's Manual Control Panel Zoom Increase or decrease image size. Focus Focus the projected image. Up/Down/Left/Right Cursor Use the bottom to move the projected image up, down, left or right. MENU Press the button to display OSD or exit the OSD menu. -
Page 12: Terminal Panel Features
DU6675 DLP Projector - User's Manual Terminal Panel Features LAN/HDBaseT COMPONENT Connect a LAN cable (Cat5/Cat6, not Connect a component video cable from a supplied) from a computer, network device, video device to the RCA jacks. or HDBaseT transmitter. Video In... -
Page 13: Remote Control
DU6675 DLP Projector - User's Manual Remote Control Label Description 1 Status LED Lights when the remote control is used 2 ON Turn the projector on at standby mode 3 OFF Turn the projector off (standby mode) 4 ZOOM +... -
Page 14: Installation And Setup
DU6675 DLP Projector - User's Manual Installation and Setup Precautions for Installation Caution: Ceiling installation must be done by a qualified professional. Contact your dealer for more information. It is not recommended you install the projector by yourself. Place the projector in a horizontal position. -
Page 15: Caution For Ceiling Mounting Installation
DU6675 DLP Projector - User's Manual Caution for Ceiling Mounting Installation When installing the projector other than desktop front or rear installation, please read below notice carefully. mounting installation. For ceiling mounting installation, please use UL Listed ceiling mounts and M4 screws, maximum depth of screw: 12 mm, the distance from wall to projector must be kept 30cm at least for proper ventilation. -
Page 16: Upward Or Downward Installation
DU6675 DLP Projector - User's Manual Upward or Downward Installation The projector can be installed in addition to the desktop and installed in the ceiling, but also can be mounted up or down for upward or downward projection. When the projector is projected upward or downward, please set Projection Mode (SETUP->Projection Mode) to... -
Page 17: Installing Or Removing The Optional Lens
DU6675 DLP Projector - User's Manual Installing or Removing the Optional Lens Caution: Do not shake or place excessive pressure on the projector or the lens components as the projector and lens components contain precision parts. • When shipping the projector with the optional lens, remove the optional lens before shipping the projector. -
Page 18: Installing The Optional Color Wheel
DU6675 DLP Projector - User's Manual Installing the Optional Color Wheel The projector comes with a four-segment color wheel installed. An additional six-segment color wheel is an optional. To replace the color wheel (located under the lamp cover adjacent to lamp 1) refer to the following guide. -
Page 19: Remote Control And Operation Range
DU6675 DLP Projector - User's Manual Remote Control and Operation Range Inserting the Remote Control Batteries 1. Remove the battery compartment cover by sliding the cover in the direction of the arrow. 2. Place two AA batteries with the correct polarity. -
Page 20: Turning On The Projector
DU6675 DLP Projector - User's Manual Turning On the Projector Once the projector is correctly located and the power cable and other connections are in place, it is important that the projector is powered on correctly in order to avoid damage to components and unnecessary wear and tear. -
Page 21: Turning Off The Projector
DU6675 DLP Projector - User's Manual Turning Off the Projector Once the projector is no longer required, it is important to shut it down correctly to avoid damage or unnecessary wear and tear to the projector. Note: • Do not unplug the power cable from the wall outlet or projector when the projector is powered on. Doing so may cause damage to the AC IN connector of the projector and (or) the prong plug of the power cable. -
Page 22: Adjusting Projected Image Position
DU6675 DLP Projector - User's Manual Adjusting Projected Image Position The projector is equipped with powered Lens control features, the projected image can be vertically shifted without moving the projector. The lens shift range is shown in the percentage of the screen height. The project installed on the desk can move up by 50% (0.5V). -
Page 23: Adjusting The Focus And Zoom
DU6675 DLP Projector - User's Manual Adjusting the Focus and Zoom The focus and zoom can be adjusted manually from the projector control panel or remote control. Refer to the following guides to adjust the focus and zoom manually. Press the Focus or Zoom button on the control key panel or remote control to adjust the focus or zoom effect using the increase and decrease buttons as required. -
Page 24: Making Connections
DU6675 DLP Projector - User's Manual Making Connections Follow the instructions below to connect DU6675 projector to the video source, external control equipment (if any). When connecting to the equipment, use the correct signal cable to connect to the signal source and ensure that the cable is securely connected. Fasten the nut on the joint and connect the signal source equipment to the projector according to the figure below. - Page 25 DU6675 DLP Projector - User's Manual Connecting to the Control Equipment The projector has the following control port for connecting to the control equipment: 3D sync signal transmitter (IR) • HDBaseT/LAN (Network control): The projector supports network control via LAN/ HDBaseT terminal.
-
Page 26: Connecting To The Screen Trigger
DU6675 DLP Projector - User's Manual Connecting to the Screen Trigger If your projection system includes the Electric projection screen and other 12V trigger device, you can connect these devices to the Trigger and configure the settings on OSD. The projector will output 12V signal when turning on the projector. -
Page 27: Connecting To External Hdbaset Transmitter
RS-232 and LAN signals can be sent to the projector via a single RJ-45 cable. If HDBaseT you purchased supports to output the IR remote control, the control signals from the IR remote control can be sent to the DU6675 projector via the RJ-45 cable. DVD Player... -
Page 28: Convenient Features
DU6675 DLP Projector - User's Manual CONVENIENT FEATURES Changing the OSD Language The project can show the English, French, Spanish, Deutsch, Portuguese, Simplified Chinese, Traditional, Japanese and Korean menu. Press MENU to show OSD then press ◄► to select SETUP menu. Press ▲▼ to select the language to be used. -
Page 29: Changing Lamp Power
DU6675 DLP Projector - User's Manual Changing Lamp Power There are three Lamp power mode options, Normal, Eco and Custom Lamp Power. The Normal mode is used for every-day standard projection, whereas the Eco mode is used for saving power and lamp life. Custom Lamp power can be used for fine tuning the brightness of the projector. -
Page 30: Correcting Keystone Distotion
DU6675 DLP Projector - User's Manual Correcting Keystone Distotion When the image is projected either from the top or from the bottom toward the screen at an angle, the image becomes distorted. Use Keystone function to correct the distortion, the adjustable range is approximately+/-30 degree. -
Page 31: Preventing The Unauthorized Use Of The Projector
DU6675 DLP Projector - User's Manual Preventing the Unauthorized Use of the Projector Using the Control Panel Lock This function allows you to lock control panel on the projector; set it to On to lock the control panel. Otherwise, set it to off to unlock the control panel. -
Page 32: Using The Physical Lock
DU6675 DLP Projector - User's Manual Using the Physical Lock If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Getting Information The Information screen provides details of the projector status such as lamp status,usage...etc. -
Page 33: Using On-Screen Display
DU6675 DLP Projector - User's Manual Using On-Screen Display Navigating the OSD You can use the remote control or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the remote control and on the projector. -
Page 34: Menu Tree
DU6675 DLP Projector - User's Manual Menu Tree Use the following table to quickly find a setting or determine the range for a setting. Main Mnu Submenu Picture Mode High Bright Presentation Video Brightness Contrast Saturation Sharpness Color Temperature Native... - Page 35 DU6675 DLP Projector - User's Manual Main Mnu Submenu Auto Native Overscan Signal Background Blue Black Logo Language English, Français, Español, Deutsch, Português, 简体中文 , 繁體中文 , 日本語 , 한국어 Lamp Mode Dual Single Lamp 1 Lamp 2 Lamp Power...
- Page 36 DU6675 DLP Projector - User's Manual Main Mnu Submenu RS232 Baud Rate 38400, 19200, 9600 Channel Local HDBaseT Network IP Address Subnet Mask Gateway DHCP On/Off Apply No/Yes MAC Address Lens Control Zoom Installation Focus Lens shift Test Pattern Color Bar...
-
Page 37: Osd Operation - Picture
DU6675 DLP Projector - User's Manual OSD Operation - PICTURE Picture Mode Use ◄ or ► to select a set of preset picture mode. High Bright: The highest brightness output mode is suitable for the occasion where high brightness is needed. - Page 38 DU6675 DLP Projector - User's Manual Sharpness Use ◄► to adjust the sharpness. The purpose of this adjustment is to change the value of the high-frequency detail. Color Temperature Use ◄► to adjust the color temperature of the projected image, the option can be 6500K, 7800K, 9300K and Native.
- Page 39 DU6675 DLP Projector - User's Manual HSG is a function to adjust Hue, Saturation and Gain independently, it allows for specified color adjustments that are more intuitive. You can adjust Hue, Saturation and Gain for Red, Green, Blue, Cyan, Magenta, Yellow and white independently.
-
Page 40: Osd Operation - Signal
DU6675 DLP Projector - User's Manual OSD Operation - SIGNAL Input Selection This function is same as the shortcut key on the remote control. You can use the remote control or this function to select the correct input source. VGA: Select input source to VGA. -
Page 41: Osd Operation - Setup
DU6675 DLP Projector - User's Manual RGB-PC: Use the RGB color space and set the black to 0, 0, 0 RGB while set the white to 255, 255, 255 RGB (if an 8-bit image is used). RGB Video: Use the RGB color space and set the black to 16, 16, and 16 RGB while set the white to 235, 235, 235 (if an 8-bit image is used) to correspond to the luminance value defined in the digital component standard. - Page 42 DU6675 DLP Projector - User's Manual Lamp Mode Use the ◄► function to select the single-lamp or dual-lamp mode. Dual: Enable the dual-lamp projection mode. Single: Use the single-lamp mode for the projection. The lamp is not specified in this mode, the projector selects the lamp that has the least operation hours automatically whenever it is turned on.
- Page 43 DU6675 DLP Projector - User's Manual Keystone When the image is projected toward the screen at angle, the image becomes distorted trapezoid; this function can be used to correct the distortion. H Keystone: Use ◄► to correct the distortion in horizontal direction.
- Page 44 DU6675 DLP Projector - User's Manual 3D Format Select this option and press the Enter button to enable 3D replay and set 3D option. Off: Turn off the 3D Display Mode. When Auto, Side by Side, Top/Bottom or Frame Sequential is selected, the 3D mode will be turned on. To turn off the 3D Mode, select "Off"...
-
Page 45: Osd Operation - Installation
DU6675 DLP Projector - User's Manual OSD Operation - INSTALLATION Projection Mode Use the ◄► function to select a projection mode: Desktop Front, Desktop Rear, Ceiling Front, Ceiling Rear, Upward Front and Downward Front. Note: • In addition to fliping the projected image, the cooling fan will also be adjusted to the corresponding speed in order to maintain proper operating temperature of the projector. - Page 46 DU6675 DLP Projector - User's Manual Auto Power Off This function is set to OFF by default. When it is set to ON and no input signal is received within 20 minutes, the projector will turn off automatically. Auto Power On This function is set to OFF by default.
- Page 47 DU6675 DLP Projector - User's Manual Subnet: Set the subnet. The input method is same as the IP address. Gateway: Set the gateway. The input method is same as the IP address. DHCP: Set DHCP to ON/OFF. When DHCP is set to ON, the DHCP server will assign an IP address to the projector.
-
Page 48: Osd Operation - Service
DU6675 DLP Projector - User's Manual OSD Operation - SERVICE Model Display the Projector model name. Serial Number Display the serial number of the projector. Software Version Display the software version of the projector. Source Information Display the current input source information. -
Page 49: Maintenance
DU6675 DLP Projector - User's Manual Maintenance Replacing the lamp Depending on the lamp model, the lamp life is affected by the installation method and frequency of the lamp on/off operation. It is suggested to replace the projector lamp when the lamp is used for approximately 2500 hours to ensure high projection quality. -
Page 50: Replacing The Lamp
DU6675 DLP Projector - User's Manual Replacing the Lamp 1. Remove the screw on the lamp cover (A), 4. Install the new lamp module(s) and re- and lift the lamp cover as shown (B). place the lamp cover. 2. Loosen the two captive screws on the lamp module (A). -
Page 51: Cleaning The Projector
DU6675 DLP Projector - User's Manual Cleaning the projector Cleaning the Cabinet Refer to the following guide to clean the projector cabinet. 1. Wipe off dust with a clean dampened cloth. 2. Moisten the cloth with warm water and mild detergent and wipe the cabinet. - Page 52 DU6675 DLP Projector - User's Manual Refer to the following guide to clean the filters. 1. The left and rear filters can be cleaned as demonstrated in the following images. 2. The rear exhaust vent can be accessed as shown.
-
Page 53: Specification
DU6675 DLP Projector - User's Manual Specification Model DU6675 Display type 1-DLP 0.67'' DMD Native resolution WUXGA (1920x1200) Maximum resolution WUXGA (1920x1200) @ 60Hz Contrast 3000:1 Lamp life and type 2500/3500 hours (Normal / Eco mode), 280Wx2 Throw Ratio* 1.73-2.27:1 Image Size* 40~500"... -
Page 54: Product Dimensions
DU6675 DLP Projector - User's Manual Product Dimensions... -
Page 55: Supported Signal Input Timing
DU6675 DLP Projector - User's Manual Supported Signal Input Timing Signal Component BNC HDMI 3D support Video type Resolution Frame rate DVI-D HDBase T 3D formal RGBHV S-Video (frame sequential) 640*480-60 59.93 640*480-75 640*480-85 85.01 800*600-60 60.32 800*600-75 800*600-85 85.06... -
Page 56: Configurations Of Terminals
DU6675 DLP Projector - User's Manual Configurations of Terminals DVI-D VGA ( D-sub 15 pin) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 18 19 20 21 22 23 24 Input Red Input T.M.D.S. - Page 57 DU6675 DLP Projector - User's Manual Screen Trigger Wired Remote Sleeve Sleeve Ring Ring VCC(12V) VCC(3.3V) Sleeve- Ground Sleeve- Ground Ring Signal Ring Signal HDBaseT/LAN Terminal (RJ-45) 8 7 6 5 4 3 2 1 Ground Ground...
-
Page 58: Du6675 Lens Series
DU6675 DLP Projector - User's Manual DU6675 Lens Series 7 types of optional powered lenses are available for the projector. Contact the authorized dealer of Vivitek for details. Part Number Lens Name F Number Focal Length Zoom Ratio Screen Size... -
Page 59: Troubleshooting
DU6675 DLP Projector - User's Manual Troubleshooting Indicator Messages Several indicator messages are used to display the current projector status or alert the abnormal message. The LEDs on the top surface of the projector show the status of the POWER, WARNING LAMP 1 and LAMP 2 Below tables describe the various states of the 4 LEDs. -
Page 60: Common Problems And Solutions
DU6675 DLP Projector - User's Manual Common Problems and Solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often the problem is something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions. - Page 61 DU6675 DLP Projector - User's Manual Problem: The image is flat with no contrast 1. Adjust the Contrast setting on the PICTURE menu of the OSD. 2. Adjust the Brightness setting on the PICTURE menu of the OSD. Problem: The color of the projected image does not match the source image.
-
Page 62: About The Vivitek Support
DU6675 DLP Projector - User's Manual About the Vivitek Support If you cannot find solutions from this user guideline, please contact us using the contact information below. North America Vivitek Service Center 15700 Don Julian Road, Suite B City of Industry, CA. 91745 U.S.A...
