Summary of Contents for Vivitek DU4771Z

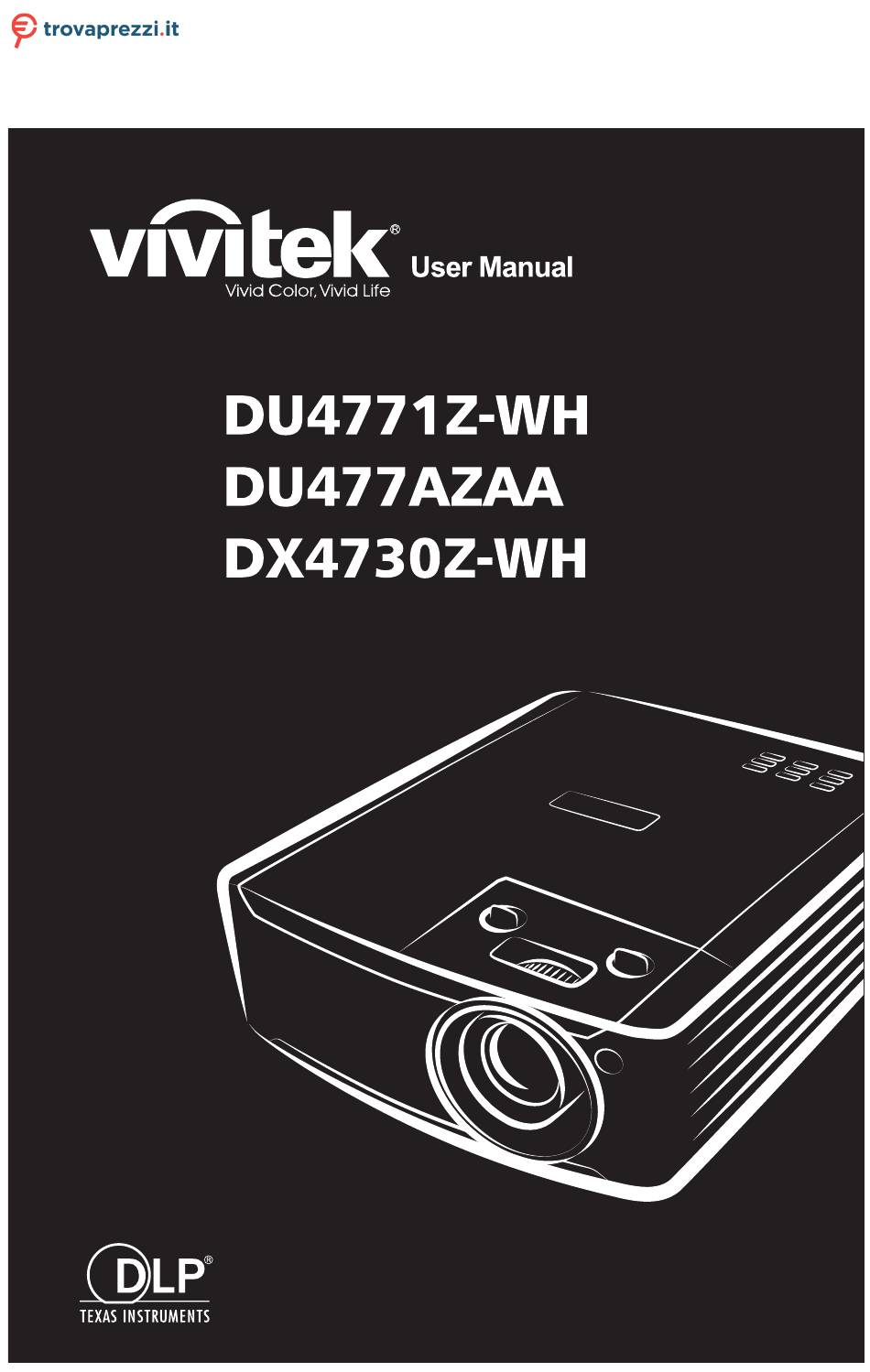

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Vivitek DU4771Z cerca il tuo prodotto tra le migliori offerte di Videoproiezione...
- Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2018 Disclaimer The information in this document is subject to change without notice.
- Page 3 DLP Projector—User’s Manual Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
- Page 4 Preface LASER WARNING This symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. CLASS 3R LASER PRODUCT This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE.
- Page 5 DLP Projector—User’s Manual Product labels Below drawing show the label’s location Hazard Warning Symbol and Aperture Label Complies with FDA performance standards for laser products except for deviations pursuant to Laser Explanatory Label Notice No. 50, dated June 24, 2007 LASER RADIATION AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT...
- Page 6 Preface Location of laser aperture Below drawing is the laser aperture location. Be careful not to let the eye see the light directly. Interlock switches This machine has 1 (Top cover) Interlock switches to protect the laser light Leakage. Will power-off the system individually when the top cover is removed. –...
- Page 7 DLP Projector—User’s Manual Projector Installation Notice There is no limitation angle for projector installation. Allow at least 50 cm clearance around the exhaust vent. Minimum 500mm Minimum 500mm Minimum 500mm (19.69 inch) (19.69 inch) (19.69 inch) Minimum 500mm (19.69 inch) Minimum 100mm (3.94 inch)
- Page 8 Preface Verify Installation Location To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper grounding and equalized ground potential for all of the equipment in the Projector System. The power code provided with the Projector should be used. In case of any missing item, other qualified 3-blade (with earthing lead) power cord can be used as substitution;...
- Page 9 DLP Projector—User’s Manual Power Safety Only use the supplied power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. Remove the batteries from the remote control when storing or not in use for a prolonged period. Cleaning the Projector ...
- Page 10 Preface Main Features DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images Sold state laser phosphor light source for reliable projection and performance Environmentally friendly lamp-less design that is mercury-free and energy efficient ...
-
Page 11: Table Of Contents
DLP Projector—User’s Manual Table of Contents GETTING STARTED ................................1 ................................1 ACKING HECKLIST ............................... 2 IEWS OF ROJECTOR ARTS Front-right View ................................2 Top view—On-screen Display (OSD) buttons and LEDs ..................3 Rear view ..................................4 Bottom view ................................... 6 .............................. - Page 12 Preface ..............................63 IGHT OURCE ROBLEMS ............................63 EMOTE ONTROL ROBLEMS ................................63 UDIO ROBLEMS ..........................63 AVING THE ROJECTOR ERVICED HDMI Q & A ..................................64 SPECIFICATIONS ................................65 ................................. 65 PECIFICATIONS ........................67 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table ......................... 67 ................................
-
Page 13: Getting Started
DLP Projector—User’s Manual ETTING TARTED Packing Checklist Carefully unpack the projector and check that the following items are included: Projector Remote Control VGA Cable Power Cord (Batteries Included) CD-ROM Warranty Card Quick Start Guide (This User's Manual) Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service. -
Page 14: Views Of Projector Parts
DLP Projector—User’s Manual Views of Projector Parts Front-right View ABEL ESCRIPTION EE PAGE Zoom Ring Enlarges the projected image. Focus Ring Focuses the projected image. Lens Projection Lens. IR Receiver Receives IR signal from remote control. Tilt Adjuster Rotate adjuster lever to adjust angle position. Lens Shift Adjusts the image position. -
Page 15: Top View-On-Screen Display (Osd) Buttons And Leds
DLP Projector—User’s Manual Top view—On-screen Display (OSD) buttons and LEDs ABEL ESCRIPTION EE PAGE AUTO Optimizes image size, position, and resolution. ENTER Enter or confirm highlighted OSD menu item. Navigates and changes settings in the OSD. Quick Menu – For Vertical Keystone. Navigates and changes settings in the OSD. -
Page 16: Rear View
Connect Cat5e/Cat6 cable from HDBaseT TX Box (VIDEO HDBaseT EXTENDER) for HDBaseT signal received. Note: Available in DU4771Z Connect the HDMI/MHL cable from an HDMI/MHL device. Note: Set the Source to HDMI 3/MHL also can be charging connected HDMI 3 / MHL... - Page 17 DLP Projector—User’s Manual ABEL ESCRIPTION EE PAGE MIC IN Connect the microphone input device. AUDIO IN Connect an AUDIO cable from the audio device. AUDIO OUT Connect an AUDIO cable for audio loop through. RS-232C Connects RS-232 serial port cable for remote control. AC IN Connect the POWER cable.
-
Page 18: Bottom View
DLP Projector—User’s Manual Bottom view 135.0mm 135.0mm [ 5.31" ] [ 5.31" ] 160.0 [ 6.30" ] 130.0 [ 5.12" ] ABEL ESCRIPTION EE PAGE Contact your dealer for information on mounting the projector on a Ceiling Mount Holes ceiling. Tilt Adjustor Rotate adjuster lever to adjust angle position. - Page 19 DLP Projector—User’s Manual Reference drawings for stand Please hire an installation service provider (for a fee) for the design and manufacture of a customized stand to be used for portrait projection. Please ensure that the design complies with the following conditions: •...
-
Page 20: Remote Control Parts
DLP Projector—User’s Manual Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens. - Page 21 Displays the Video source selection. Network Open the OSD Network menu. Displays the HDBaseT source selection. HDBaseT Note: Available in DU4771Z EXIT Return to last OSD page. Enters and confirms settings in the OSD. Navigates and changes settings in the OSD.
- Page 22 DLP Projector—User’s Manual ABEL ESCRIPTION EE PAGE Play the following item on the programming list for MHL. Displays the Volume setting bar. Volume/1 Number for Remote ID setting used. Displays the Contrast settings bar. Contrast/2 Number for Remote ID setting used. Mutes the built-in speaker.
-
Page 23: Remote Control Operating Range
DLP Projector—User’s Manual Remote Control Operating Range The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. -
Page 24: Setup And Operation
DLP Projector—User’s Manual ETUP AND PERATION Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the battery with the positive side facing up. Replace the cover. Caution: 1. Only use AAA batteries (Alkaline batteries are recommended). 2. -
Page 25: Starting And Shutting Down The Projector
DLP Projector—User’s Manual Starting and Shutting down the Projector Securely connect the power cord and signal cable. When connected, the power led will flash green to solid green. Turn on the light source by pressing “ ” button on the projector or “ ”... - Page 26 HDBaseT: Support for distribution of HD video, digital audio content, RS232, RJ45 and IR function over standard CAT5e/6 LAN cable. (Available in DU4771Z) Note: It is recommended to use a certified TX box (VIDEO EXTENDER) – Rextron (EVBMN-110L38) for the HDBaseT function and there is no guarantee of full response when other brands of TX box are used..
-
Page 27: Setting An Access Password (Security Lock)
DLP Projector—User’s Manual Setting an Access Password (Security Lock) You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See Navigating the OSD on page Setting the OSD Language... - Page 28 DLP Projector—User’s Manual You can use the cursor buttons ▲▼◄► either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five. Press the cursor buttons in any order to set the password.
-
Page 29: Adjusting The Projector Level
DLP Projector—User’s Manual Adjusting the Projector Level Take note of the following when setting up the projector: The projector table or stand should be level and sturdy. Position the projector so that it is perpendicular to the screen. ... -
Page 30: Adjusting Projected Image Position Using Lens Shift
DLP Projector—User’s Manual Adjusting Projected Image Position Using Lens Shift The Lens Shift feature provides a lens shift function that can be used to adjust the position of the projected image either horizontally or vertically within the range detailed below. Shift is a unique system that provides lens shift while maintaining a much higher ANSI contrast ratio than traditional lens shift systems. -
Page 31: Adjusting The Vertical Image Position
DLP Projector—User’s Manual Adjusting the vertical image position The vertical image height can be adjusted around 14.5% for XGA, 14% for WXGA, 14.7% for 1080P and 12% for WUXGA of offset position. Note that the maximum vertical image height adjustment can be limited by the horizontal image position. -
Page 32: Adjusting The Zoom, Focus And Keystone
DLP Projector—User’s Manual Adjusting the Zoom, Focus and Keystone Use the Image-zoom control (on the projector only) to resize the projected image and screen size. Use the Image-focus control (on the projector only) to sharpen the projected image. Press the buttons (on the projector or the remote control) to correct vertical or horizontal image-trapezoid or... -
Page 33: Adjusting The Volume
DLP Projector—User’s Manual Adjusting the Volume Press the Volume buttons on the remote control. The volume control appears on the display. Press the ◄ / ► buttons on the keypad to adjust Volume +/-. Press the MUTE button to turn off the volume (This feature is available only on the remote). -
Page 34: On-Screen Display (Osd) Menu Settings
DLP Projector—User’s Manual (OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the projector to navigate and make changes to the OSD. -
Page 35: Setting The Osd Language
DLP Projector—User’s Manual Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the cursor ◄► button to navigate to Settings 1. Press the cursor ▲▼ button to move to the Advanced 1 menu. (Enter) / ►... -
Page 36: Osd Menu Overview
DLP Projector—User’s Manual OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. Main Menu Sub Menu Settings Image Display Mode Presentation, Bright, Game, Movie, Vivid, TV, sRGB, DICOM SIM, User, User2 Brightness 0~100 Contrast... - Page 37 DLP Projector—User’s Manual Main Menu Sub Menu Settings Settings 1 Source Source reference Input Source Select (IR/Keypad) Projection Normal, Real, Ceiling, Real+Ceiling Audio Volume 0~10 Mute Off, On Off, On MIC Volume 0~10 Alignment Aspect Ratio Fill, 4:3, 16:9, Letter Box, Native, 2.35:1 Digital Zoom -10~10 Keystone...
- Page 38 HDMI3/MHL Disable, Enable Disable, Enable Composite Video Disable, Enable HDBaseT (*) Disable, Enable Air Filter Settings Air Filter Hours Time Reminder Off, 300hrs, 500hrs, 1000hrs, 1500hrs, 2000hrs Reset Timer Custom Light 25~100 Note: (*) Available in DU4771Z — 26 —...
-
Page 39: Image Menu
DLP Projector—User’s Manual Image Menu Attention ! All of display mode parameters when changed will be saved to user mode. Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image Menu. Press the cursor ▲▼... -
Page 40: Computer Menu
DLP Projector—User’s Manual Computer Menu Press the MENU button to open the OSD menu. Press ◄► to move to the Image menu. Press ▲▼ to move to the Computer menu and then press Enter or ►. Press ▲▼ to move up and down in the Computer menu. -
Page 41: Advanced Feature
DLP Projector—User’s Manual Advanced Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲ to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the Advanced menu. -
Page 42: White Balance
DLP Projector—User’s Manual White Balance Press the ENTER button to enter the White Balance sub menu. ESCRIPTION Press the ◄► buttons to adjust the Red Gain. R Gain Press the ◄► buttons to adjust the Green Gain. G Gain Press the ◄► buttons to adjust the Blue Gain. B Gain Press the ◄►... -
Page 43: Color Manager
DLP Projector—User’s Manual Color Manager Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲ to move to the Color Manager menu and then press Enter or ►. Press ▼▲ to move up and down in the Color Manager menu. -
Page 44: Settings 1 Menu
DLP Projector—User’s Manual Settings 1 Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Settings 1 menu. Press the cursor ▲▼ button to move up and down in the Settings 1 menu. Press ◄► to enter and change values for settings. -
Page 45: Audio
DLP Projector—User’s Manual Audio Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▼▲ to move to the Audio menu and then press Enter or ►. Press ▼▲ to move up and down in the Audio menu. ESCRIPTION Press the cursor ◄►... -
Page 46: Alignment
DLP Projector—User’s Manual Alignment Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▼▲ to move to the Alignment menu and then press Enter or ►. Press ▼▲ to move up and down in the Alignment menu. - Page 47 DLP Projector—User’s Manual 4 Corner Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▼▲ to move to the Alignment menu and then press Enter or ►. Press ▼▲ to move to the 4 Corner menu and then press Enter or ►.
-
Page 48: Advanced 1 Feature
DLP Projector—User’s Manual Advanced 1 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▲▼ to move to the Advanced 1 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 1 menu. - Page 49 DLP Projector—User’s Manual 3D Setting ESCRIPTION Press the cursor ◄► button to enter and select different 3D mode. Press the cursor ◄► button to enter and enable or disable 3D Sync Invert. 3D Sync Invert Press the cursor ◄► button to enter and select different 3D Format. 3D Format Note: 1.
-
Page 50: Advanced 2 Feature
DLP Projector—User’s Manual Advanced 2 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▲▼ to move to the Advanced 2 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 2 menu. -
Page 51: Settings 2 Menu
DLP Projector—User’s Manual Settings 2 Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Settings 2 menu. Press the cursor ▲▼ button to move up and down in the Settings 2 menu. ESCRIPTION Press the cursor ◄►... -
Page 52: Status
DLP Projector—User’s Manual Status Press the cursor ▲▼ button to move up and down in the Settings 2 menu. Select the Status menu and press Enter or ► to enter. ESCRIPTION Active Source Display the activated source. Displays resolution/video information for RGB source and color standard for Video Video Information source. -
Page 53: Advanced 1 Feature
Network. Press the cursor ◄► button to enter and enable or disable the HDBaseT Setting. HDBaseT Setting Note: Available in DU4771Z Note: About “On By Lan”, RJ45 will support to be waked up in this mode but scalar won’t. Note: 1. - Page 54 DLP Projector—User’s Manual Note: 1. Enable HDBaseT control function when you desire to use HDBaseT TX box. (Remove RS232 and RJ45/LAN control function from Projector to HDBaseT TX box.) See HDBaseT control function table. 2. When HDBaseT enable, Low Power Mode will auto set to On by HDBaseT. HDBaseT control is disabled when the HDBaseT TX box signal is cutoff.
- Page 55 DLP Projector—User’s Manual Network ESCRIPTION Network State Displays the network connection status. Press ◄► to turn DHCP On or Off. DHCP Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS fields. IP Address Enter a valid IP address if DHCP is turned off. Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
- Page 56 DLP Projector—User’s Manual LAN_RJ45 Wired LAN Terminal functionalites Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible. Compatibility with Crestron / AMX (Device Discovery) / Extron control boxes enables not only collective projector management on a network but also management from a control panel on a PC (or Laptop) browser screen.
- Page 57 DLP Projector—User’s Manual LAN_RJ45 1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop). 2. On the PC (Laptop), select Start → Control Panel →Network and Internet. – 45 –...
- Page 58 DLP Projector—User’s Manual 3. Right-click on Local Area Connection, and select Properties. 4. In the Properties window, select the Networking tab, and select Internet Protocol (TCP/IP). 5. Click Properties. 6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK. —...
- Page 59 DLP Projector—User’s Manual 7. Press the Menu button on the projector. 8. Select Settings2→ Advanced1 → Network 9. After getting into Network, input the following: DHCP: Off IP Address: 10.10.10.10 Subnet Mask: 255.255.255.0 Gateway: 0.0.0.0 DNS Server: 0.0.0.0 (Enter) / ►...
- Page 60 DLP Projector—User’s Manual ATEGORY NPUT ENGTH IP Address Crestron Control IP ID Port Projector Name Projector Location Assigned To DHCP (Enabled) (N/A) IP Address Network Configuration Subnet Mask Default Gateway DNS Server Enabled (N/A) User Password New Password Confirm Enabled (N/A) Admin Password New Password...
- Page 61 DLP Projector—User’s Manual Preparing Email Alerts 1. Make sure that user can access the homepage of LAN RJ45 function by web browser (for ex-ample, Microsoft Internet Explorer v6.01/v8.0). 2. From the Homepage of LAN/RJ45, click Alert Mail Settings. 3. By default, these input boxes in Alert Mail Settings are blank. –...
- Page 62 DLP Projector—User’s Manual 4. For Sending alert mail, input the following: The SMTP field is the mail server for sending out email (SMTP protocol). This is a required field. The To field is the recipient’s email address (for example, the projector administrator). This is a required field.
- Page 63 DLP Projector—User’s Manual RS232 by Telnet Function Besides projector connected to RS232 interface with “Hyper-Terminal” communication by dedicated RS232 command control, there is alternative RS232 command control way, so called “RS232 by TELNET” for LAN/RJ45 interface. Quick Start-Guide for “RS232 by TELNET” Check and get the IP-Address on OSD of the projector.
- Page 64 DLP Projector—User’s Manual Input the command format like the below: telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed) (ttt.xxx.yyy.zzz: IP-Address of the projector) If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the RS232 command will be workable. How to have TELNET enabled in Windows 7 / 8 / 10 By default installation for Windows, “TELNET”...
- Page 65 DLP Projector—User’s Manual Select “Turn Windows features on or off” to open Have “Telnet Client” option checked, then press “OK” button. Specsheet for “RS232 by TELNET” : 1. Telnet: TCP 2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team) 3.
-
Page 66: Advanced 2 Feature
DLP Projector—User’s Manual Advanced 2 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 2 menu. Press ▲▼ to move to the Advanced 2 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 2 menu. - Page 67 Press the cursor ◄► button to enter and enable or disable the VGA source. Press the cursor ◄► button to enter and enable or disable the Composite Video Composite Video source. Press the cursor ◄► button to enter and enable or disable the HDBaseT source. HDBaseT Note: Available in DU4771Z. – 55 –...
- Page 68 DLP Projector—User’s Manual Air Filter Settings Press the ENTER button to enter the Air Filter Settings sub menu. ESCRIPTION Air Filter Hours Showing Air filter hours. Press the cursor ◄► button to enter and select the Time Reminder. Time Reminder (Enter) / ►...
-
Page 69: Maintenance And Security
DLP Projector—User’s Manual AINTENANCE AND ECURITY Cleaning the Air Filter The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. If the filter is dirty or clogged, your projector may overheat or degrading the projected image quality. Turn off the projector, and unplug the AC power cord from the AC outlet. -
Page 70: Replacing The Filter
DLP Projector—User’s Manual Replacing the Filter Turn off the projector, and unplug the AC power cord from the AC outlet. Clean up the dust on the projector and around the air vents. Remove the filter module from the projector Lift the filter from the filter cover. -
Page 71: Cleaning The Projector
DLP Projector—User’s Manual Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn. -
Page 72: Using The Physical Lock
DLP Projector—User’s Manual Using the Physical Lock Using the Kensington Security Slot If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: Contact your vendor for details on purchasing a suitable Kensington security cable. The security lock corresponds to Kensington’s MicroSaver Security System. -
Page 73: Troubleshooting
DLP Projector—User’s Manual ROUBLESHOOTING Common Problems and Solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions. -
Page 74: Led Error Messages
DLP Projector—User’s Manual LED Error Messages RROR ESSAGES OWER IGHT Light Source Ready Start Flashing Cooling Flashing Over Temperature T1 1 blinks Over Temperature T2 2 blinks Over Temperature T3 3 blinks Over Temperature T4 4 blinks Over Temperature T5 5 blinks Thermal Break Sensor error 4 blinks... -
Page 75: Light Source Problems
DLP Projector—User’s Manual Problem: The image is reversed Check the Projection setting on the Settings 1 menu of the OSD. Problem: The image is streaked 1. Set the Frequency and Tracking settings on the Image->Computer menu of the OSD to the default settings. -
Page 76: Hdmi Q & A
DLP Projector—User’s Manual HDMI Q & A Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable? Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High - Speed cables. ˙Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal. -
Page 77: Specifications
DLP Projector—User’s Manual PECIFICATIONS Specifications Model Name DX4730Z DU4771Z Display Type 0.55XGA, S450 0.67 WUXGA, S600 Resolution XGA, 1024x768 WUXGA, 1920x1200 Throw Ratio 1.51~2.5 1.15~1.9 Zoom Ratio 1.65X Manual Zoom, Manual Focus Image size (diagonal) 29.5"~163" 36.7"~201.9" Projection distance 1.5~5m Vertical ±30°... - Page 78 DLP Projector—User’s Manual RS-232 x 1 Control Terminals RJ45 x 1 (10/100Mbps) USB mini B for service x 1 Kensington Security Slot Security Security Bar Note: For questions regarding product specifications, please contact your local distributor. — 66 —...
-
Page 79: Projection Distance Vs. Projection Size
DLP Projector—User’s Manual Projection Distance vs. Projection Size Projection Distance Projection Distance and Size Table DX4730Z_XGA: TR: 1.51~2.5, offset=121% Distance (m) Diagonal (") 48.9 81.5 97.8 163.0 29.5 49.2 59.1 98.4 993.4 1655.6 1986.8 3311.3 600.0 1000.0 1200.0 2000.0 Image Width (mm) 745.0 1241.7 1490.1... -
Page 80: Timing Mode Table
DLP Projector—User’s Manual Timing Mode Table Table of Supported Frequency The unit automatically determines PC signals to select the appropriate resolution. Some signals may require manual adjustment. DVI/HDMI/ RGB/BNC IGNAL ESOLUTION OMPOSITE OMPONENT ( KH NALOG IGITAL ○ － － －... - Page 81 DLP Projector—User’s Manual DVI/HDMI/ RGB/BNC IGNAL ESOLUTION OMPOSITE OMPONENT ( KH NALOG IGITAL － － ○ ○ 1280 x 960 60.0 60.0 ○ ○ － － 1280 x 960 85.9 85.0 ○ ○ － － 1360 x 768 47.7 60.0 ○...
-
Page 82: Table Of Supported Frequency For 3D Mode
DLP Projector—User’s Manual Table of Supported Frequency For 3D mode The unit automatically determines PC signals to select the appropriate resolution. Some signals may require manual adjustment. Input Signal for D-SUB/HDMI/DVI-D IGNAL ESOLUTION EFRESH SVGA 800 X 600 60/120 1024 X 768 60/120 HDTV(720P) 1280 X 720... -
Page 83: Projector Dimensions
DLP Projector—User’s Manual Projector Dimensions – 71 –... -
Page 84: Regulatory Compliance
DLP Projector—User’s Manual EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 85: Rs-232C Protocol
DLP Projector—User’s Manual PPENDIX RS-232C Protocol RS232 Setting Baud rate: 9600 Parity check: None Data bit: Stop bit: Flow Control None UART16550 FIFO Disable Minimum delay for next command: 1ms Control Command Structure Header code Command code Data code End code Command Data ‘V’... - Page 86 DLP Projector—User’s Manual Command Group 01 ASCII Function Description Return Value VXXG0101 56h Xh Xh 47h 30h 31h 30h 31h 0Dh Get Brightness n=0~100 Pn/F VXXS0101n 56h Xh Xh 53h 30h 31h 30h 31h nh 0Dh Set Brightness n=0~100 VXXG0102 56h Xh Xh 47h 30h 31h 30h 32h 0Dh Get Contrast n=0~100...
- Page 87 DLP Projector—User’s Manual Command Group 02 ASCII Function Description Return Value VXXS0201 56h Xh Xh 53h 30h 32h 30h 31h 0Dh Select RGB VXXS0204 56h Xh Xh 53h 30h 32h 30h 34h 0Dh Select Video VXXS0206 56h Xh Xh 53h 30h 32h 30h 36h 0Dh Select HDMI 1 VXXS0209 56h Xh Xh 53h 30h 32h 30h 39h 0Dh...
- Page 88 DLP Projector—User’s Manual Command Group 03 ASCII Function Description Return Value VXXS0311n 56h Xh Xh 53h 30h 33h 31h 31h nh 0Dh Adjust the zoom n=-10~+10 0:Off VXXG0315 56h Xh Xh 47h 30h 33h 31h 35h 0Dh 1:DLP-Link Pn/F 2:IR 0:Off VXXS0315n 56h Xh Xh 53h 30h 33h 31h 35h nh 0Dh 1:DLP-Link...
