Summary of Contents for Char-Broil Patio Bistro 240 14601900

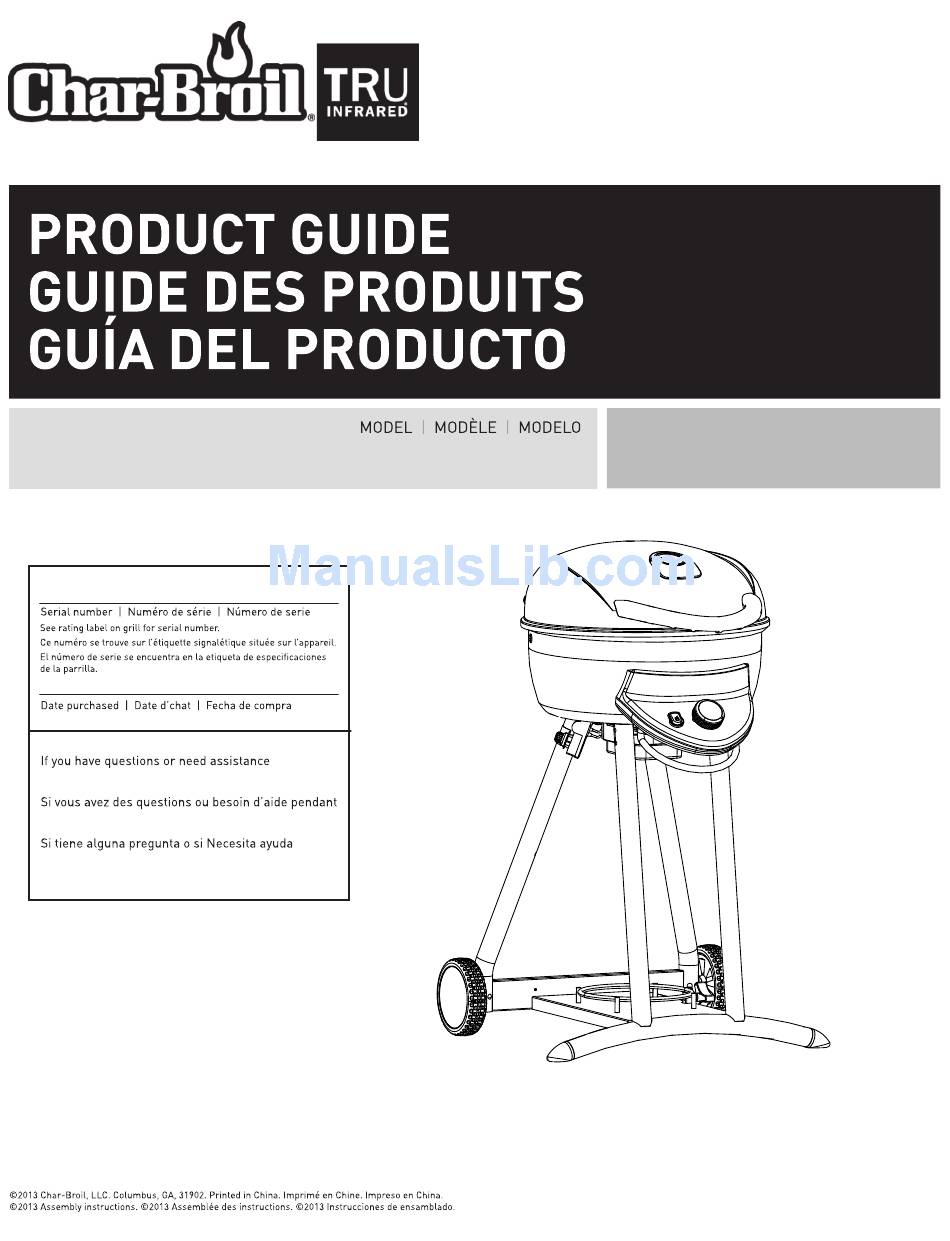

  • Page 1 ® Patio Bistro 240 14601900 14601903 during assembly, please call 1-888-430-7870 l’assemblage, S’il vous plaît appelez 1-888-430-7870 durante el Ensamblado, llámenos Al 1-888-430-7870 11/14/13 • 42805145...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS THIS GRILL IS FOR OUTDOOR CAUTION USE ONLY. Product record information ....1 Grease Fires For your safety ......2 WARNING •...
  • Page 3: For Your Safety

    LP Cylinder Filling USE AND CARE •Use only licensed and experienced dealers. •LP dealer must purge new cylinder before filling. OPD Hand Wheel LP Cylinder Removal, Transport and Storage •Dealer should NEVER fill LP cylinder more than 80% of LP cylinder volume. Volume of propane in cylinder will Type 1 outlet with •Turn OFF all control knobs and LP cylinder valve.
  • Page 4 • The regulator may make a humming or whistling noise • Apartment Dwellers: WARNING during operation. This will not affect safety or use of the Check with management to learn the requirements and appliance. fire codes for using an LP gas grill in your apartment •...
  • Page 5: Food Safety

    Cleaning the Burner Assembly Burner Flame Check CAUTION Follow these instructions to clean and/or replace parts of • Light burner. Looking through the matchl ight hole rear of burner assembly or if you have trouble igniting the appliance, you should see the flame height as appliance.
  • Page 6: Limited Warranty

    LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.
  • Page 7 PARTS LIST Description GRILL LID LOWER BODY HEAT TENT BURNER TANK RETAINER BOLT IGNITER SWITCH MODULE BEZEL WIND SHIELD INNER REFLECTOR TOWEL BAR LID HANDLE CONTROL PANEL WHEEL CONTROL KNOB REAR LEG SET FRONT LEG SET GREASE TRAY HUBCAP HOSE, VALVE, REGULATOR ASSEMBLY WARMING RACK AXLE HEAT INDICATOR...
  • Page 8: Parts Diagram

    DIAGRAMA DE PIEZAS PARTS DIAGRAM SCHÉMA DES PIÈCES...
  • Page 9: Assembly Steps

    ASSEMBLY STEPS ASSEMBLÉE ÉTAPES ASAMBLEA PASOS Axle Boulon d'axe Perno del árbol 3/8-16 nut 3/8-16 écrou 3/8-16 tuercas Wheel retaining clip Circlip de roue Retención de la rueda...
  • Page 10 #10x3/8” screw #10x3/8" vis #10x3/8" tornillo 1/4-20 nut 1/4-20 écrou 1/4-20 tuercas...
  • Page 11 After cart assembly, if your cart does not sit level, use these screws to adjust the cart. Après le montage, le panier, si votre panier ne siège pas à niveau, utiliser ces vis pour ajuster le chariot. Después del montaje de 1/4-20 x 1/2”...
  • Page 12 #10-24 nut #10-24 écrou #10-24 tuercas...
  • Page 13 1/4-20 nut 1/4-20 écrou 1/4-20 tuercas 1/4-20 x 2” screw 1/4-20 x 2" vis 1/4-20 x 2" tornillo...
  • Page 14 #10-24 nut #10-24 écrou #10-24 tuercas Fiber washer Rondelle de fibre Arandela de fibra #10-24 x 3/8” screw #10-24 x 3/8" vis #10-24 x 3/8" tornillo Fiber washer Rondelle de fibre Arandela de fibra 1/4-20 x 3/4” screw 1/4-20 x 3/4" vis 1/4-20 x 3/4”...
  • Page 15 Fiber washer Rondelle de fibre Arandela de fibra #10-24 x 3/8” screw #10-24 x 3/8" vis #10-24 x 3/8" tornillo Battery Batterie Batería Chapeau de batterie Casquillo Module nut de la Écrou de module batería Tuerca del módulo...
  • Page 16 Electrode wire (small terminal) Ignitor electrode Brûleur allumeur Câble d´allumage (petit connecteur ecectrical) Ignitor de electrodes Electrodo wire (conector ecectrical pequeño) Electrode wire Câble d´allumage Electrodo wire Ignition switch wires (large terminal) Fil de l'interrupteur d'allumage (grand connecteur électrique) Cable del interruptor de encendido (conector eléctrico grande) Moraine d'avant...
  • Page 17 Cylinder valve facing RH side of grill. Côté de Rhésus de revêtement de valve de cylindre de gril. Lado el derecho del revestimiento de la válvula del cilindro de la parrilla.
  • Page 18: Troubleshooting

    EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Prevention/Solution Gas leaking from • Damaged hose. •Turn off gas at LP cylinder or at source on natural gas systems. Discontinue use of cracked/cut/burned hose.
  • Page 19 Troubleshooting (continued) Problem Possible Cause Prevention/Solution Sudden drop in gas flow or • Check for gas in LP cylinder. • Out of gas. low flame. • Excess flow valve tripped. • Turn off knobs, wait 30 seconds and light grill. If flames are still low, turn off knobs and LP cylinder valve.
