Manual
Evaluation-Board for
PAN4570 Wireless Module

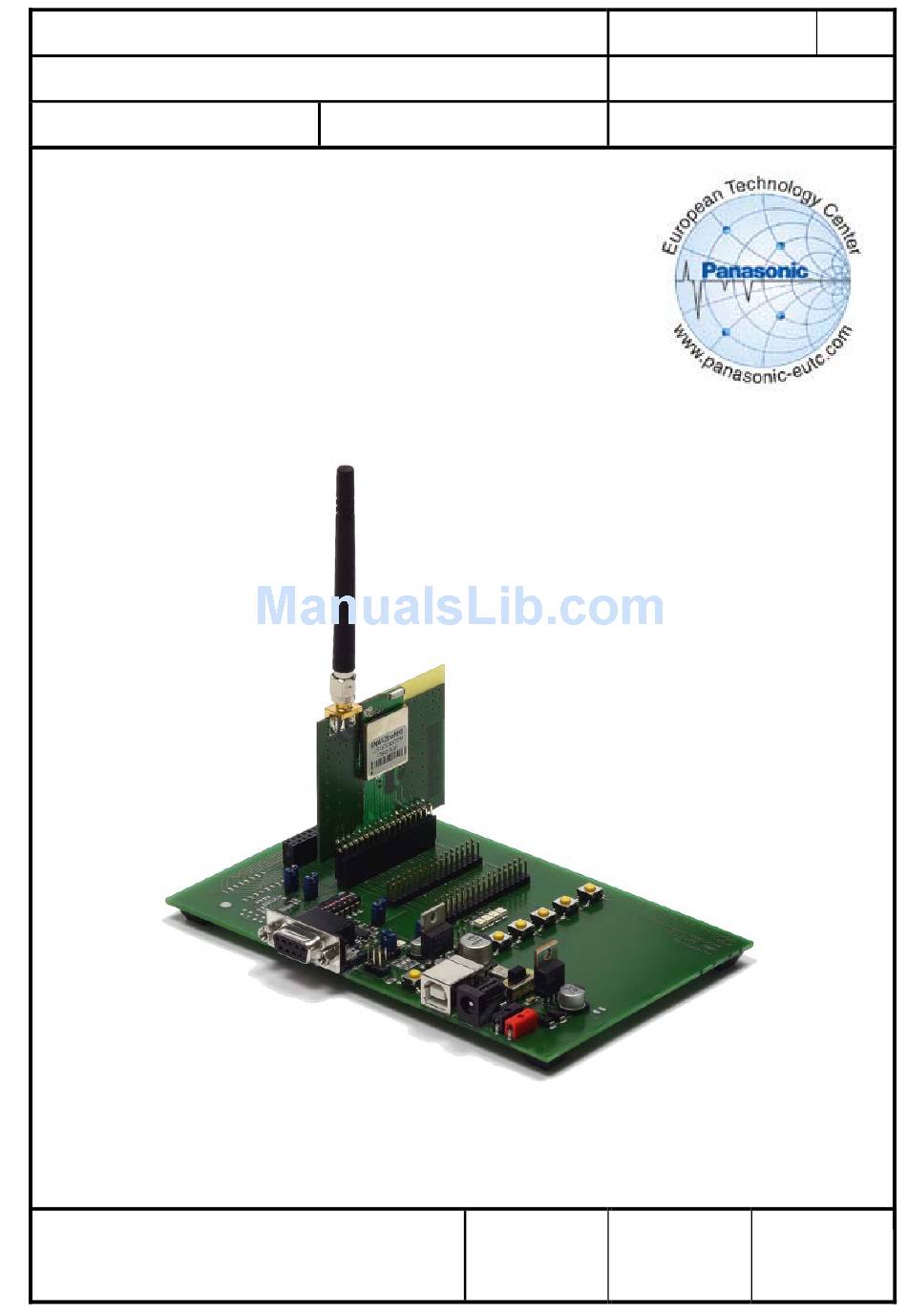

FIGURE 1 ISM RF TRANSCEIVER TESTBOARD WITH PAN4570 AND ANTENNA
European Technology Center
Panasonic Electronic Devices (EUROPE) GmbH
EvalBoard PAN4570
PANASONIC'S CODE
No.
DS-Eval4570-2400
PAGE
Seite
DATE
Datum
APPROVED
CHECKED
genehmigt
geprüft
REV.
C
1 of 20
06.11.2006
DESIGNED
Erstellt
Advertisement
Table of Contents
Related Manuals for Panasonic PAN4570
Summary of Contents for Panasonic PAN4570
- Page 1 CLASSIFICATION Einstufung SUBJECT Thema CUSTOMER’S CODE EvalPAN4570 Manual Evaluation-Board for PAN4570 Wireless Module FIGURE 1 ISM RF TRANSCEIVER TESTBOARD WITH PAN4570 AND ANTENNA European Technology Center Panasonic Electronic Devices (EUROPE) GmbH EvalBoard PAN4570 PANASONIC’S CODE APPROVED genehmigt REV. DS-Eval4570-2400 PAGE...
-
Page 2: Table Of Contents
8.2. Upload of EmberZNet sample applications... 9 8.3. Selecting the hardware platform ... 10 8.4. Ember Insight Adaptor configuration ... 11 Ember ZigBee Implementation... 11 Flash Programming of PAN4570 ... 11 9.2. Development of Applications... 14 9.3. Ember ZigBee stack ... 14 9.4. -
Page 3: Overview
For a basic hardware evaluation the test software Ember Range Test Application V2.0 and the Ember embedded bootloader are programmed. The embedded bootloader can be used for loading other applications via the serial cable to PAN4570, for example the EmberZNet sample application “simple-lighting”. For more information see chapter 9.3. -
Page 4: Setting Up The Evalboard
Check for software updates at www.Ember.com. 2. SETTING UP THE EVALBOARD Plug a PAN4570 Carrierboard on one of the three 34-pins headers (B or C or D) as shown in Figures 1 and 2. Please take care that pin 1 of the Carrierboard connects to pin1 of the testboard according to the “1”... -
Page 5: Testboard Layout
CUSTO MER’S CODE EvalPAN4570 3. TESTBOARD LAYOUT input buttons output LEDs PAN4570 SMA socket Figure 2 ISM RF Transceiver testboard with PAN4570 and antenna European Technology Center Panasonic Electronic Devices (EUROPE) GmbH EvalBoard PAN4570 PANASONIC’S CODE APPROVED genehmigt REV. DS-Eval4570-2400... -
Page 6: Operation Of The Testboard
** +5Vdc supply (independent on JP3 and JP4 settings) option is provided for application demos. The +5Vdc supply is NOT used on PAN4570 carrierboard. Check if the port switches S1 near to the COM2 connector for RS232 are all set to off position except the selected UART as noted in Figure 2/Table 3. -
Page 7: Power From A Usb Device
The dc regulator output voltage is set with a jumper on JP3 or JP4 as follows: jumper on 2-pin header JP4 only (default) no jumpers JP3 only European Technology Center Panasonic Electronic Devices (EUROPE) GmbH EvalBoard PAN4570 PANASONIC’S CODE regulator output voltage VCC 2,7 Vdc 3,4 Vdc... -
Page 8: Serial Port
In order to do testing of basic hardware performance you could now proceed with commands described in chapter could load an image file to PAN4570 as well. The chapter 0 describes loading the >simple-lighting< application from EmberZNet 2.5.0. Launch the embedded bootloader typing in >bootload< and press the. The display now... -
Page 9: Upload Of Emberznet Sample Applications
The basic functionality is described in the simple-lighting.h file, while the operation and function of the buttons and LEDs are desribed in main.c. Remark: For the use of buttons and LEDs on the PAN4570 testboard with “simple-lighting” see also table 4 on the next page. -
Page 10: Selecting The Hardware Platform
Rename the dev0455.h extracted with EmberZNet for example in dev0455_ember.h Copy the PAN4570.h file from the cd to the location where dev0455.h was located Rename the PAN4570.h file to dev0455.h PAN4570.h enables D11, D14, SW2 and SW6 connected to PAN4570 for the use of the “simple-lighting”... -
Page 11: Ember Tm Insight Adaptor Configuration
Important: Because the Ember™ Insight Adaptor provides power to PAN4570, remove the PAN4570 carrierboard from the ISM transceiver testboard before connecting it to the Ember™ Insight Adaptor. Set the power slide switch on the Ember™ Insight Adaptor to the appropriate (right) position. Power up the Ember™ Insight Adaptor... - Page 12 After the configuration the summary should be displayed: Within the menue TOOLS\Configure_SIF\SIF_configuration you can check for the pods and slave configuration. On your pc create a new folder, for example C:\PAN4570 From the CD subfolder \software copy the following files to C:\PAN4570: em2xx_load.exe em250-rangetest.xpv em250-rangetest.xdv standalone-bootloader-em250.xpv...
- Page 13 >SUCCESS<. If not check again steps 3. to 5. Remove the connection of the Insight Adaptor to the PAN4570 carrierboard. Plug the PAN4570 carrierboard to the testboard and push RESET on the testboard PAN4570 is now ready to run the programmed software. For the em250- rangetest see part 9.3.
-
Page 14: Development Of Applications
API commands. Direct ZigBee APS layer APIs are provided for applications that require low level ZigBee control. According to [3] each ZigBee device has a unique address. This address has to be used by the device and is stored on the EM250 in PAN4570. European Technology Center Panasonic Electronic Devices (EUROPE) GmbH EvalBoard PAN4570 PANASONIC’S CODE... -
Page 15: Testing For Ieee802.15.4 Parameters
Ember package as part of the Ember 9.4. TESTING FOR IEEE802.15.4 PARAMETERS The software on PAN4570 as delivered is the >Ember (Version 1. Oct. 2006) utility. It allows the basic RF transceiver testing including range testing. -
Page 16: Schematic Of The Ism Rf Transceiver Testboard
CLASSIFICATION Einstufung SUBJECT Thema CUSTOMER’S CODE EvalPAN4570 10. SCHEMATIC OF THE ISM RF TRANSCEIVER TESTBOARD 10.1 SHEET 1 European Technology Center Panasonic Electronic Devices (EUROPE) GmbH EvalBoard PAN4570 PANASONIC’S CODE APPROVED genehmigt REV. DS-Eval4570-2400 PAGE Seite 16 of 20 DATE 06.11.2006... -
Page 17: Sheet 2
CLASSIFICATION Einstufung SUBJECT Thema CUSTOMER’S CODE EvalPAN4570 10.2. SHEET 2 European Technology Center Panasonic Electronic Devices (EUROPE) GmbH EvalBoard PAN4570 PANASONIC’S CODE APPROVED genehmigt REV. DS-Eval4570-2400 PAGE Seite 17 of 20 DATE 06.11.2006 Datum CHECKED DESIGNED geprüft Erstellt... -
Page 18: Pan4570 Carrierboard
CLASSIFICATION Einstufung SUBJECT Thema CUSTOMER’S CODE EvalPAN4570 10.3. PAN4570 CARRIERBOARD European Technology Center Panasonic Electronic Devices (EUROPE) GmbH EvalBoard PAN4570 PANASONIC’S CODE remarks: PAN4570 is programmed per X2. R1, R2 and R4 are not mounted R3 is mounted as pulldown resistor at SIF_MOSI (10k typ.) -
Page 19: Related Documents
SUBJECT Thema CUSTOMER’S CODE EvalPAN4570 RELATED DOCUMENTS Data sheet PAN4570 DS-4570-2400-102-01 19/05/2006 Data Sheet Ember IEEE Std. 802.15.4 The following documentation can be found as part of the installed EmberZNet package: Ember Developer Kit User´s Guide, 23 June 2006, Ember... -
Page 20: General Information
LIFE SUPPORT POLICY This Panasonic Electronic Devices (Europe) GmbH product is not designed for use in life support appliances, devices, or systems where malfunction can reasonably be expected to result in a significant personal injury to the user, or as a critical component in any life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
