PGA26E07BA-SWEVB006

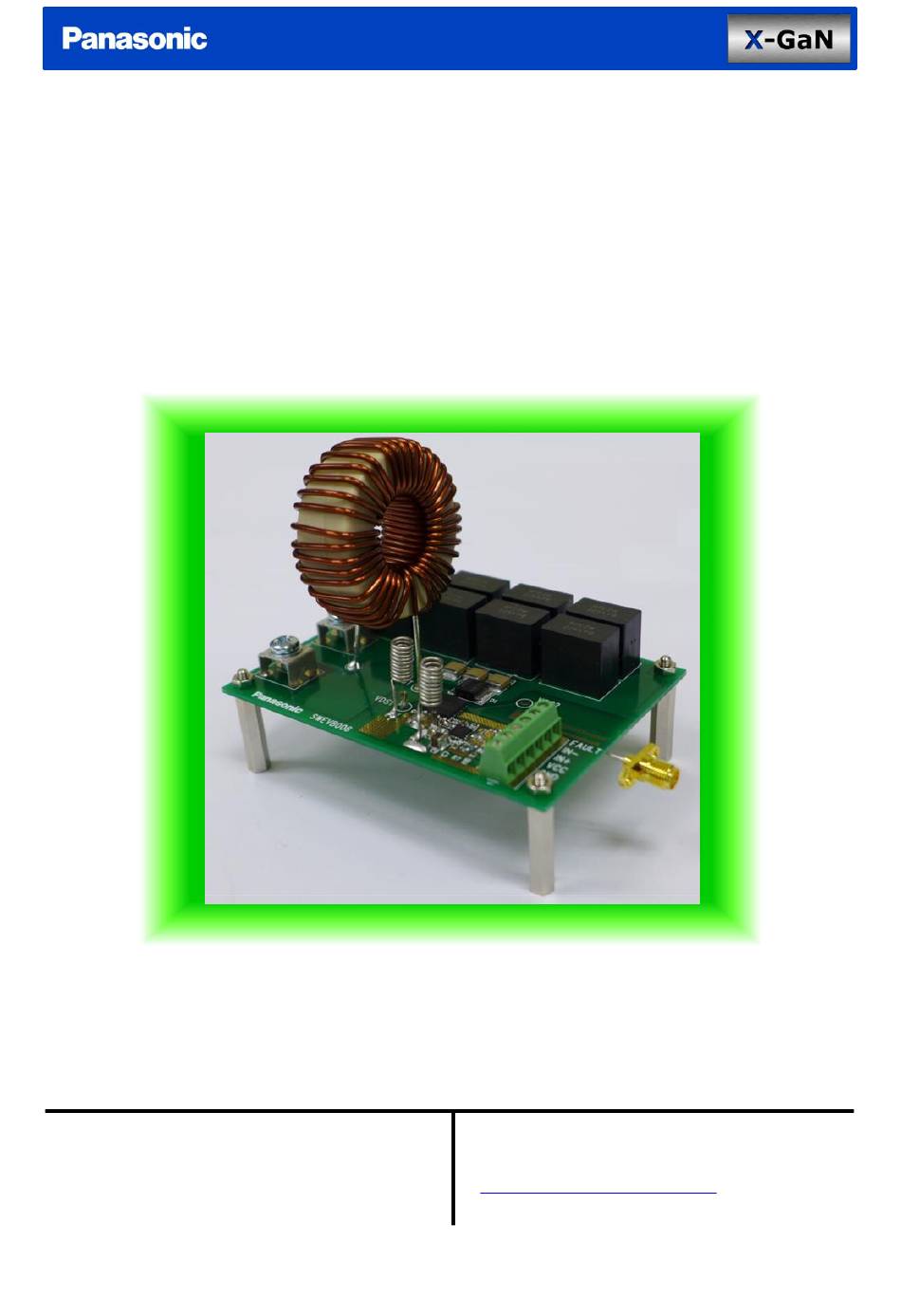

Chopper Evaluation Board consisting:
1. PGA26E07BA 600V 56mΩ X-GaN Power Transistor
2. AN34092B Single channel X-GaN Gate Driver IC
For evaluation of X-GaN Power Transistor and Driver switching characteristics
The products and product specifications described in the
document are subject to change without notice for modification
and/or improvement. At the final stage of your design,
purchasing, or use of the products, please request for the up-
to-date Product Standards in advance to ensure that the latest
specifications meet your requirements.
PGA26E07BA-SWEVB006 Ver. 1.2
Panasonic Semiconductor Solutions Co. Ltd.
1 Kotari-yakemachi, Nagaokakyo, Kyoto 617-8520, Japan
http://www.semicon.panasonic.co.jp/en/
1
Advertisement
Table of Contents
Related Manuals for Panasonic PGA26E07BA-SWEVB006
Summary of Contents for Panasonic PGA26E07BA-SWEVB006
- Page 1 For evaluation of X-GaN Power Transistor and Driver switching characteristics The products and product specifications described in the document are subject to change without notice for modification Panasonic Semiconductor Solutions Co. Ltd. and/or improvement. At the final stage of your design, 1 Kotari-yakemachi, Nagaokakyo, Kyoto 617-8520, Japan purchasing, or use of the products, please request for the up- http://www.semicon.panasonic.co.jp/en/...
-
Page 2: Table Of Contents
Contents Features……………………………………………………………………………………………………………………………………………………….3 Description of the Evaluation Board……………………………………………………………………………………………………………..4 Recommended Operating Conditions…………………………………………………………………………………………………………..4 Schematic Diagram……………………………………………………………………………………………………………………………………….5 Bill of Materials…………………………………………………………………………………………………………………………………………….5 Appearance………………………………………………………………………………………………………………………………………………….7 PCB Layout…………………………………………………………………………………………………………………………………………………..8 Test circuits………………………………………………………………………………………………………………………………………………….9 Equipment………………………………………………………………………………………………………………………………………………….10 Measurement Procedures………………………………………………………………………………………………………………………….11 Measurement Results………………………………………………………………………………………………………………………………..13 Important Notice……………………………………………………………………………………………………………………………………….15 PGA26E07BA-SWEVB006 Ver. 1.2... -
Page 3: Features
█ Normally Off Device AN34092B X-GaN Gate Driver █ Supports high switching frequency (～4MHz) Propagation Delay █ Achieved safe operation 30ns - negative voltage source, active miller clamp █ Facilitate gate drive design - high precision gate current source PGA26E07BA-SWEVB006 Ver. 1.2... -
Page 4: Description Of The Evaluation Board
Description of the Evaluation Board The PGA26E07BA-SWEVB006 is a chopper evaluation board using a dedicated X-GaN driver (AN34092B) for measuring the high speed switching characteristics of turn-on and turn-off of the X- GaN power transistor. The dv/dt and di/dt using an inductive load can be measured by controlling the X-GaN power transistor with an external signal. -
Page 5: Schematic Diagram
2.2uF / 450V ECWFE2W225K Panasonic Radial Thru Hole 0.47uF / 630V C5750X7T2J474K SMD5750 2200pF / 50V GRM1885C1H222JA01 Murata SMD1608 Chip Capacitor 220nF / 25V GRM188R71E224KA88 Murata SMD1608 0.47uF / 16V GRM188R71C474KA88 Murata SMD1608 4.7uF / 16V GRM21BB31E475K Murata SMD1608 PGA26E07BA-SWEVB006 Ver. 1.2... - Page 6 DPAK Inductor 95uH LHDM010101DYBV1E Nippon Chemicon Screw CON1 OP-045-M4 Osada Terminal Terminal CON2 1727052 Phoenix Contact Block Semi-rigid APEX Technology SMA(PJ)－X-UT47-63 600V / 56mΩ PGA26E07BA Panasonic SMD (8x8) Transistor Gate Driver Gate driver AN34092B Panasonic QFN (4x4) PGA26E07BA-SWEVB006 Ver. 1.2...
-
Page 7: Appearance
(Non-inverting input) DC power ② Inductor Input terminal X-GaN Driver IC (AN34092B) Inverting input is connected to GND Figure 2: Top Side View DC power ① Input terminal Q1 Drain current sense resistor Figure 3: Bottom Side View PGA26E07BA-SWEVB006 Ver. 1.2... -
Page 8: Pcb Layout
PCB Layout Pulse generator DC power ① connection points connection points DC power② connection points Figure 4: Top Layer DC power ① Pulse generator connection points connection points DC power② connection points Figure 5: Bottom Layer PGA26E07BA-SWEVB006 Ver. 1.2... -
Page 9: Test Circuits
Measurement Procedures on page 11. Top View Figure 6: Setup of Evaluation Environment Full View DC power ① DC power ② (12V) Pulse Coil wire for Coil wire for Generator VDS monitoring VGS monitoring Figure 7: Connectors of Evaluation Board PGA26E07BA-SWEVB006 Ver. 1.2... -
Page 10: Equipment
*Use only burst mode function from the pulse generator. Do not use continuous pulse mode as this will cause damage to the components and evaluation board. **For VGS and VDS monitoring, use the coil wire mounted on the evaluation board to minimize any ringing in the waveform. PGA26E07BA-SWEVB006 Ver. 1.2... -
Page 11: Measurement Procedures
Observation of waveform will be easier if the trigger is applied at the rising / falling edge of VGS or VDS1 as shown on Figure 9 above. If different inductor value is used other than the one provided, please set the pulse width until the desired IL value is achieved. PGA26E07BA-SWEVB006 Ver. 1.2... - Page 12 320V / Toff VDS at VDS at Turn Off Turn On 400V 360V T-on T-off Figure 10: Measurement of dv/dt Current probe for VDS probe VGS probe IL monitoring connection connection Figure 11: Measurement points PGA26E07BA-SWEVB006 Ver. 1.2...
-
Page 13: Measurement Results
VGS 4V/div Time scale: 10ns/div VDS 100V/div VDS 100V/div Time scale: 10ns/div 5GS/s 5GS/s Turn IL 5A/div IL 5A/div dV/dt=14.9 [V/ns] dV/dt=31.3 [V/ns] [Results are for reference only and measured data maybe different depending on evaluation environment] PGA26E07BA-SWEVB006 Ver. 1.2... - Page 14 VDS 100V/div VDS 100V/div Turn IL 5A/div IL 5A/div dV/dt=-101.9 [V/ns] dV/dt=-92.8 [V/ns] VGS 4V/div VGS 4V/div VDS 100V/div VDS 100V/div Time scale: 10ns/div Turn Time scale: 10ns/div IL 5A/div IL 5A/div 5GS/s 5GS/s dV/dt=62.9 [V/ns] dV/dt=94.3 [V/ns] PGA26E07BA-SWEVB006 Ver. 1.2...
-
Page 15: Important Notice
The user assumes all responsibility and liability for proper and safe handling of this evaluation board. Further, the user indemnifies Panasonic from all claims arising from the handling or use of the evaluation boards. The technical information described in this document is intended only to show the main characteristics and application circuit examples of the products. - Page 16 PGA26E07BA-SWEVB006 Ver. 1.2...
- Page 17 No license is granted in and to any intellectual property right or other right owned by Panasonic Corporation or any other company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any other company which may arise as a result of the use of technical information de-scribed in this book.
