Weslo WCTL41590 User Manual

Hide thumbs

Table Of Contents

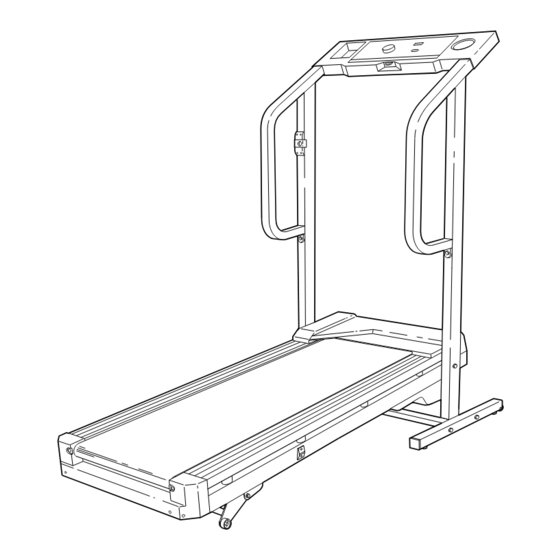

Model No. WCTL41590

Serial No.

Write the serial number in the

space above for future reference.

QUESTIONS?

As a manufacturer, we are

committed to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts, we

will guarantee complete satisfac-

tion through direct assistance

from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

SERVICE DEPARTMENT. The

trained technicians on our hot

line will provide immediate assis-

tance, free of charge to you.

CUSTOMER SERVICE:

1-888-936-4266

Mon.–Fri., 8 a.m.–6:30 p.m. EST

(excluding holidays)

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial

Number

Decal

USER'S MANUAL

Visit our website at

www.weslo.com

new products, prizes,

fitness tips, and much more!

Table of Contents

Summary of Contents for Weslo WCTL41590

Page 1 ® Model No. WCTL41590 Serial No. USER'S MANUAL Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are...
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ............. 3 BEFORE YOU BEGIN .
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure 12. Use only a CUL-listed surge protector, rated that all users of this treadmill are adequately at 15 amps, with a 14-gauge cord of five feet informed of all warnings and precautions.
Page 4 DANGER: the procedures in this manual should be per- Always unplug the power cord formed by an authorized service representa- immediately after use, before cleaning the tive only. and before performing the maintenance and adjustment procedures described in this 24. This treadmill is intended for in-home use manual.
Page 5: Before You Begin
The nience and privacy of your home. And when you’re not model number of the treadmill is WCTL41590. The exercising, the CADENCE DL15 can be folded up, re- serial number can be found on a decal attached to the quiring less than half the floor space of other treadmills.
Page 6: Assembly
ASSEMBLY Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires your own phillips screw- driver , two adjustable wrenches , and scissors 1.
Page 7: Two Turns Into The Upper End Of The Right Upright (31
4. Thread a 1/4” x 1” Bolt (23) with a 1/4” Washer (22) two turns into the upper end of the right Upright (31) and the Right Handrail (32). Do not tighten the Bolt yet. Thread a 1/4” x 1” Bolt (23) with a 1/4” Washer (22) two turns into the lower end of the Right Handrail (32) and the right Upright (31).
Page 8: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a Your treadmill features a walking belt coated with grounding plug. Plug the power cord into a surge PERFORMANT LUBE , a high-performance lubricant.
Page 9 DIAGRAM OF THE CONSOLE Monitor Display On/Reset Button Speed Control Clip STEP BY STEP CONSOLE OPERATION CAUTION: Before operating the Before operating the console, make sure that the console, read the following precautions. power cord is properly plugged in. (See HOW TO PLUG IN THE POWER CORD on page 8.) In addition, •...
Page 10 If desired, reset the Reset the console and start the walking belt. display by pressing the on/reset button. Turn the speed control to the RESET position. Note: Each time Turn off the power. the walking belt is stopped, the To turn off the power, simply wait for about six speed control minutes.
Page 11: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, unplug the power cord. Caution: You must be able to safely lift 45 pounds in order to raise, lower or move the treadmill. 1.
Page 12 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, slide open the storage latch. Pivot the treadmill until the frame guide and the foot rail are past the storage latch. Opened Storage Latch...
Page 13: Maintenance And Trouble-Shooting
MAINTENANCE AND TROUBLE-SHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-888-936-4266, Monday through Friday, 8 a.m. until 6:30 p.m. Eastern Standard Time (excluding holidays).
Page 14 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt has shifted to the left, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn the left rear roller adjust- ment bolt clockwise, and the right bolt counterclock- wise, 1/4 of a turn each.
Page 15: Conditioning Guidelines
CONDITIONING GUIDELINES begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed of the treadmill until WARNING: Before beginning your heart rate is near one of the lower two numbers in this or any exercise program, consult your your training zone.
Page 16 Cooling Down EXERCISE FREQUENCY Finish each workout with 5 to 10 minutes of stretching To maintain or improve your condition, complete three to cool down. This will increase the flexibility of your workouts each week, with at least one day of rest muscles and will help prevent post-exercise problems.
Page 17 NOTES...
Page 18: Customer Record
CUSTOMER RECORD Model No.: Serial No.: Retailer Name: Purchase Date: Retailer Address:...
Page 19: Ordering Replacement Parts
Friday, 8 a.m. until 6:30 p.m. Eastern Standard Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling: • The MODEL NUMBER of the product (WCTL41590) • The NAME of the product (WESLO CADENCE ®...
Page 20: Limited Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from province to province or so specified by the retailer of your equipment. ICON OF/DU CANADA, 900 de l’Industrie, St. Jérôme, QC J7Y 4B8 WESLO is a registered trademark of ICON Health & Fitness, Inc. ™ ®...
Page 21 REMOVE THIS EXPLODED DRAWING AND PART LIST FROM THE MANUAL Save this EXPLODED DRAWING and PART LIST for future reference. Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of the User’s Manual.
Page 22 PART LIST—Model No. WCTL41590 R0302A Key No. Qty. Description Key No. Qty. Description Motor Belt Front Roller Adj. Bolt Motor/Pulley/Flywheel/Fan Hood Anchor Pulley/Flywheel/Fan Circuit Breaker Motor Grommet Motor Pivot Bolt Power Cord Tension Bolt/Leg Bolt Electronics Bracket Motor Tension Washer...
Page 23 EXPLODED DRAWING—Model No. WCTL41590 R0302A...
