Page 1
COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE...

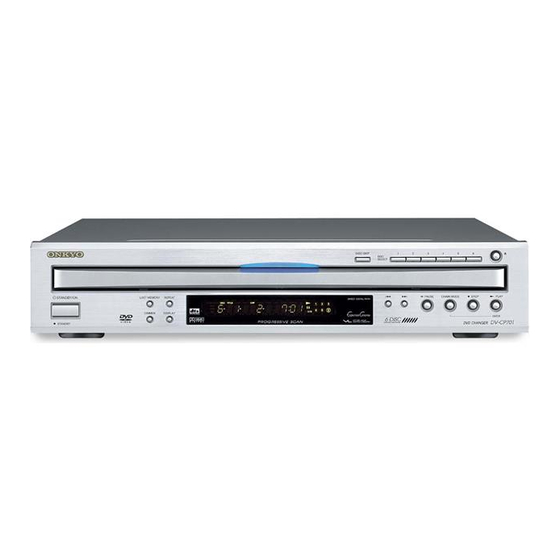

DV-CP701 3 7 63 1515 0 SERVICE PROCEDURES-1 PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to follow carefully the instructions below when servicing. Laser Diode Properties WARNING!! Wavelength: 650/780nm (DVD/CD) SERVICE WARNING : DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY.
Page 4
DV-CP701 3 7 63 1515 0 SERVICE PROCEDURES-2 2. Safety-check out (Only U.S.A. model) After correcting the original service problem perform the following safety check before releasing the set to the customer Connect the insulating-resistance tester between the plug of power supply cord and terminal GND on the back panel.
http://www.xiaoyu163.com 3 7 63 1515 0 BLOCK DIAGRAM P1001 LASER etc DVD MECHA P1101 SPD+,SPD-,SLD+,SLD,LMT-SW NADG-7807 DVD MAIN CIRCUIT PC BOARD P2901 P2501 POWER SUPPLY UNIT EV5V L 13942296513 SW5V P 9 0 1 NGPS-0036 (US) SW3.3V P 7 1 0 A SW8V NGPS-0037( AUS) A+12V...
DV-CP701 3 7 63 1515 0 PRINTED CIRCUIT BOARD VIEW : DVD MAIN CIRCUIT PC BOARD (NADG-7807) L 13942296513 u163 : Side A pattern : Sise B pattern http://www.xiaoyu163.com...
DV-CP701 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q2502: TC7SZ125FU (BUS BUFFER 3-STAGE OUTPUT) PIN ASSIGNMENT IN A Truth table INPUT OUTPUT OUT Y (Top view) X: Don't care Z: High impedance L 13942296513 u163 http://www.xiaoyu163.com...
DV-CP701 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q2301: TC74VCX162373FT 16-BIT D-TYPE LATCH PIN ASSIGNMENT Truth Table Inputs Outputs 1D1-1D8 1Q1-1Q8 SYSTEM DIAGRAM Inputs Outputs 2D1-2D8 2Q1-2Q8 LE Q LE Q LE Q LE Q LE Q...
http://www.xiaoyu163.com E804 S- Cable (S CORD) 2010380 E804 or S- Cable TPX3000 2010360 3 7 63 1515 0 E805 Remote Controller RC-542DV 8912-0036-0 24140542 E810 Instruction Manual E (DVCP701) 4301-7046-0 29343461A <B>: Black color model <S>: Silver color model <MDD>: North American and Canadian area only <MPA>: Australian area only L 13942296513 u163...
DV-CP701 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q2003 : IS24C08-3Z EEPROM (8K-Bit 2-Wire Serial CMOS EEPROM) PIN CONFIGURATION PIN DESCRIPTIONS A0-A2 Address Inputs Serial Address/Data I/O Serial Clock Input Write Protect Input Power Supply Ground This input clock pin is used to synchronize the data transfer to and from the device.
DV-CP701 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q2303 : IC42S16400-7T SYNCHRONOUS DYNAMIC RAM The IC42S16400 are high-speed 67, 108, 864-bit synchronous dynamic ramdam-access memories, organized as 2,097, 152 x 8 x 4 and 1,48, 576 x 16 x 4 (word x bit x bank), respectively.
DV-CP701 3 7 63 1515 0 MICROPROCESSOR TERMINAL DESCRIPTION-1 Sign Functional name I/O Description P15/ANI5 P16/ANI6 P17/ANI7 MCRST O Reset output pin for sub microprocessor. Avss AVSS I To connect VSS. P130/ANO0 P131/ANO1 FL ON/OFF O Power ON/ OFF pin of FL tube.
DV-CP701 3 7 63 1515 0 MICROPROCESSOR TERMINAL DESCRIPTION-2 Sign Functional name Description P64/RD Not used. To connect to GND P65/WR Not used. To connect to GND P66/WAIT Not used. To connect to GND P67/ASTB Not used. To connect to GND...
DV-CP701 3 7 63 1515 0 PART REPLACEMENT-1 1. CABINET REPLACEMENT 1-3. Tray panel and Mechanism assy <Mechanism assy> 1-1. Top cover and front panel 1-3-1. Remove four screws. (1) 1-1-1. Remove the top cover. (six screws) 1-3-2. Remove the mechanism assy.
DV-CP701 3 7 63 1515 0 PART REPLACEMENT-2 Tray panel <Mounting> 1-4-4. Insert the tray panel. 1-4-5. Set the FFC (P707) to mechanism control PC board assy. 1-4-6. The pin of main gear and fiting the position of the slot on the tray.
DV-CP701 3 7 63 1515 0 UPGRADE THE FIRMWARE/ TEST MODES 1 Updating the Firm Ware 1-1 Open the DISC tray and set the Firm Ware Recorded DISC on DISC1 bay. 1-2 Close the DISC tray. Will start the Firm Ware updating automatically.
5-5 Press "STANDBY" key of the DV-CP701 to exit the REGION setting mode. 6 Initialization 6-1 Press the "STOP" & "STANDBY" at the same on the DV-CP701 with NO DISC condition. 6-2 It's display "COMPLETE" on FL tube after initializing for setting and mechanism setting.
http://www.xiaoyu163.com E804 S- Cable (S CORD) 2010380 E804 or S- Cable TPX3000 2010360 3 7 63 1515 0 E805 Remote Controller RC-542DV 8912-0036-0 24140542 E810 Instruction Manual E (DVCP701) 4301-7046-0 29343461A <B>: Black color model <S>: Silver color model <MDD>: North American and Canadian area only <MPA>: Australian area only L 13942296513 u163...
