ALLEN & HEATH XOPE-PX5 Quick Start Manual

Download this manual

Enlarged version

NOTES:



Read the Safety Instructions Sheet and Safety Warning information printed on mixer's rear

and base panels BEFORE operating.



For full details, please refer to the XONE:PX5 User Guide online at: www.allen-heath.com



A limited one year manufacturer's warranty applies to this product, the conditions of which

can be found in the XONE:PX5 User Guide, and online at: www.allen-heath.com/legal



By using software designed for use for and with this Allen & Heath product you agree to be

bound by the terms of the relevant End User Licence Agreement (EULA), a copy of which

can be found at: www.allen-heath.com/legal

Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK

www.allen-heath.com

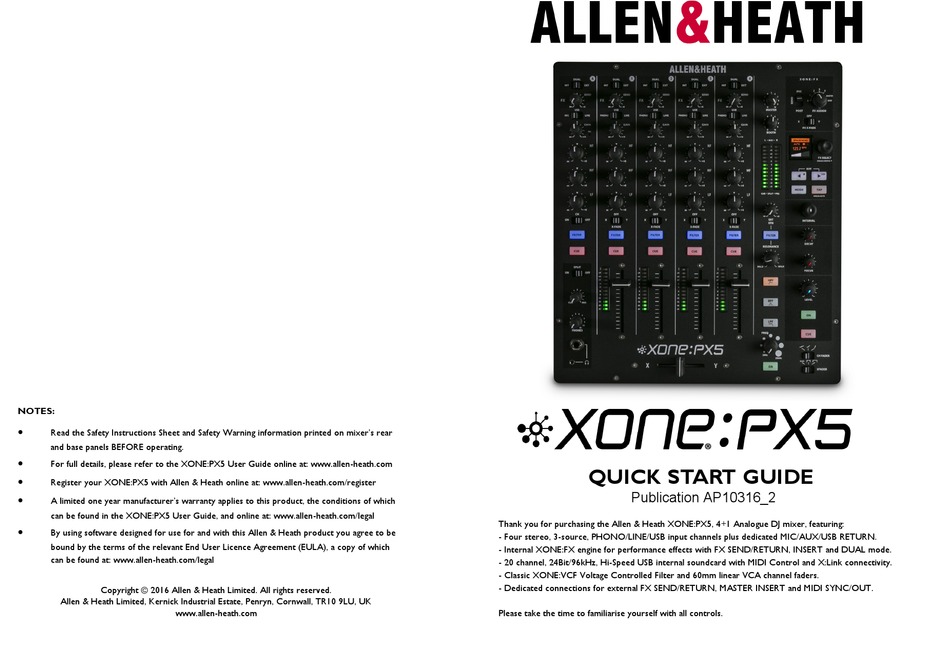

QUICK START GUIDE

Publication AP10316_2

Thank you for purchasing the Allen & Heath XONE:PX5, 4+1 Analogue DJ mixer, featuring:

- Four stereo, 3-source, PHONO/LINE/USB input channels plus dedicated MIC/AUX/USB RETURN.

- Internal XONE:FX engine for performance effects with FX SEND/RETURN, INSERT and DUAL mode.

- 20 channel, 24Bit/96kHz, Hi-Speed USB internal soundcard with MIDI Control and X:Link connectivity.

- Classic XONE:VCF Voltage Controlled Filter and 60mm linear VCA channel faders.

- Dedicated connections for external FX SEND/RETURN, MASTER INSERT and MIDI SYNC/OUT.

Please take the time to familiarise yourself with all controls.

Table of Contents

Need help?

Do you have a question about the XOPE-PX5 and is the answer not in the manual?

Page 1 NOTES:  Read the Safety Instructions Sheet and Safety Warning information printed on mixer’s rear and base panels BEFORE operating.  For full details, please refer to the XONE:PX5 User Guide online at: www.allen-heath.com QUICK START GUIDE  Register your XONE:PX5 with Allen & Heath online at: www.allen-heath.com/register Publication AP10316_2 ...
Page 2: Front Panel Overview
FRONT PANEL OVERVIEW REAR PANEL OVERVIEW cont. MASTER INSERT Provides INSERT points for LR MIX output to connect hardware dynamics processors such as a limiter, compressor, or graphic equaliser. Or, connect FX hardware in-line with MIX output for external MASTER INSERT FX. BOOTH Outputs Balanced LINE level stereo output feed to DJ’s local monitor.
Page 3: Setup Examples
XONE:FX CONTROL SECTION SETUP EXAMPLES STANDARD MIX : ANALOGUE + DIGITAL + MC FX ASSIGN Switch Rotary selector used to assign internal XONE:FX engine routing as VINYL & MEDIA PLAYER (RCA) / LAPTOP (USB) / MIC (XLR) Channel INSERT, Master INSERT, or SEND / RETURN to LR MIX. KEY: FX SEND PRE / POST Switch RCA (PHONO)
