Data Stream™ 4 has an auto-ranging power supply that works with a voltage
AC Power
range of 100–240 VAC, 50/60 Hz.
To eliminate wear and improve its lifespan, during periods of non-use
completely disconnect from power via breaker or by unplugging it.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder from its housing.
4. Remove the blown fuse from the clip on the front of the safety cap and
replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.
Disconnect the product from power before replacing the fuse.
The Data Stream™ 4 works with DMX controllers. For information

DMX Linking

about configuring Data Stream™ 4 for additional DMX operation,
download the User Manual from the Chauvet website:
http://www.chauvetlighting.com/product-manuals-literature/. For information about
DMX download the Chauvet DMX Primer, from the Chauvet website:
http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.
Before mounting the Data Stream™ 4, read the Safety Notes in this QRG. The
Mounting
Data Stream™ 4 conveniently mounts in a single rack space (1U). If mounting
overhead, make sure the mounting clamps (such as CLP-15 clamps from
Chauvet) are capable of supporting the weight of the product. Always use a
mounting point and at least one safety cable per product. For the Chauvet line of
mounting clamps, go to www.chauvetlighting.com/cables-clamps-main.html.
Mounting Clamp
(such as CLP-15 from Chauvet)
Rear View
Safety Cable
(such as CH-05 from Chauvet)

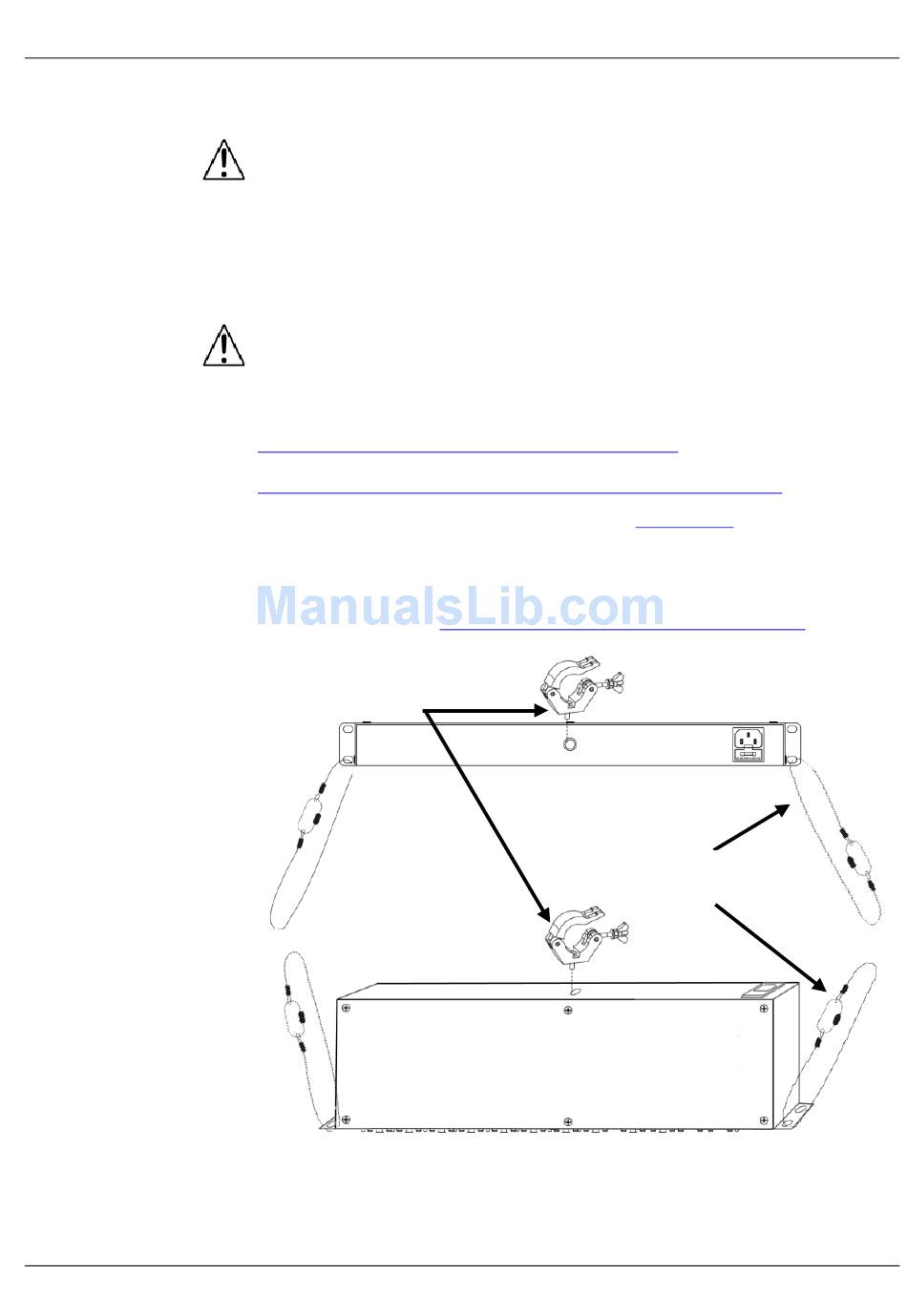

Overhead Mounting
Diagram

Bottom View
