Chauvet 4BAR Manual

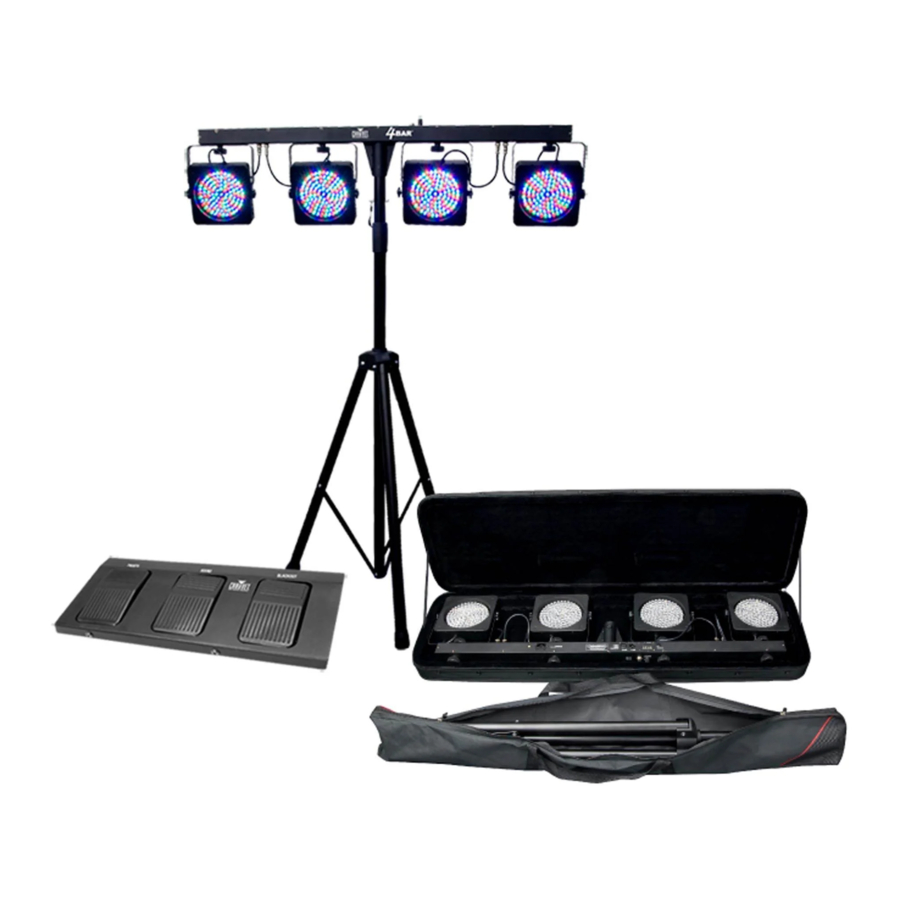

What Is Included

• 4BAR™
• Power Cord
• Carrying Case
• Tripod
• Footswitch
• Warranty Card
• Quick Reference Guide
• Tripod Carrying Case

To Begin

Unpack your 4BAR™ and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not CHAUVET^®.

Product Description

The 4BAR™ is a pack-and-go must have for DJs, bands and other performers who want a complete LED wash light system. Each of the four low-profile lights can be positioned independently. With 108 red, green and blue LEDs per light, the 4BAR™ offers built-in automated and sound-activated programs accessible with or without the foot switch.

Product Overview

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz.

Fuse Replacement

To replace the fuse in the 4BAR™:

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

Product Mounting Diagram

Control Panel Description

Menu Options

DMX Linking

The 4BAR™ can work with a DMX controller when linked by DMX serial connections. Instructions for DMX operation are in the User Manual.
A DMX Primer is available from www.chauvetlighting.com.

Starting Address

To ensure full access to all channels in each DMX mode, the highest recommended DMX address is 498.

Master/Slave Connection

The 4BAR™ uses the DMX data connection for its Master/Slave mode.
Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.

DMX Values

15-CH

Contact

Outside the U.S., United Kingdom, or Ireland, contact your distributor to request support or return a product.
Visit Outside the U.S., United Kingdom, or Ireland, contact your distributor to www.chauvetlighting.com for contact information.

Safety Notes

These Safety Notes include important information about product mounting, use, and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power cord by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product's housing when it is on because it will be hot.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• ONLY carry this product by the hanging/mounting brackets.
• The maximum ambient temperature is 104°F (40°C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
