- Page 1 Installation Instructions 740158-00 Benchmark ® Swing Operator Models: 9130, 9140, & 9150 121 West Railroad Avenue Princeton, IL 61356-0100 800-526-2400 FAX: 800-248-1460 www.lcn.ingersollrand.com 740158-00(1) © 2008 Ingersoll-Rand Company Limited...
-
Page 2: Table Of Contents

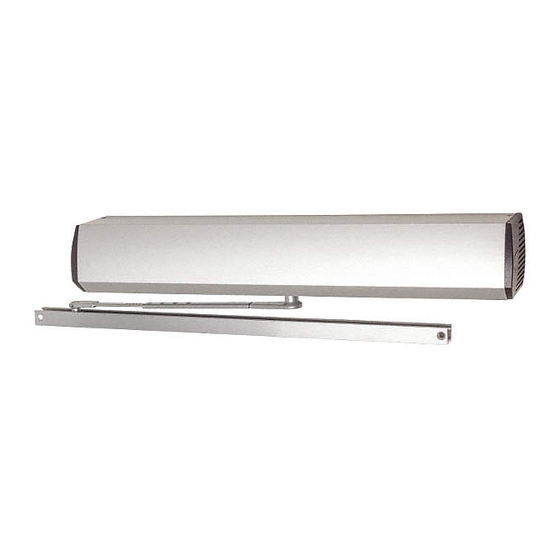

CONTENTS General Replacement Parts and System Components 1. Pre-Installation Site and Product Check 2. Operator Installation 3. Wiring 4. Arm and Cover Installation 5. Operational Check 6. Operator Adjustment 7. Release for Service 8. BenchMark III Software GENERAL The Benchmark is an automatic electromechanical swinging door operator for use on hinged, center pivoted and offset pivoted doors. -
Page 3: Replacement Parts And System Components
REPLACEMENT PARTS & SYSTEM COMPONENTS (CNTD) Page 3 of 19... -
Page 4: Pre-Installation Site And Product Check
1. PRE-INSTALLATION SITE & PRODUCT CHECK Check that the Product Model is correct for the required application. Check that all parts listed on the Bill of Material are in the shipping container. Check the architectural drawings and final approved shop drawings for the position of frame and structural openings. -
Page 5: Operator Installation
2. OPERATOR INSTALLATION Remove Control Box from Operator Mounting Bracket, then remove Motor/Gearbox from Bracket: Prepare Header/Frame and Door: 27” Pull System ......Page 6 Full Length Pull System....Page 6 27” Push System ......Page 7 Full Length Push System ....Page 7 Double Push System......Page 8 Low Ceiling Application ....Page 8 Install Operator Mounting Bracket on Header/Frame. -
Page 6: Prepare Header/Frame And Door: 27" Pull System
2. OPERATOR INSTALLATION (CNTD) 27” Pull System Header/Frame and Door Preparation Full Length Pull System Header/Frame and Door Preparation Center Operator Cover (with End Caps removed) over opening and mark a vertical line at each end. Align ends of Operator Mounting Bracket and Switch Bracket with vertical lines and adjust vertical position per diagram below. -
Page 7: 27" Push System
2. OPERATOR INSTALLATION (CNTD) 27” Push System Header/Frame and Door Preparation Full Length Push System Header/Frame and Door Preparation Center Operator Cover (with End Caps removed) over opening and mark a vertical line at each end. Align ends of Operator Mounting Bracket and Switch Bracket with vertical lines and adjust vertical position per diagram below. -
Page 8: Double Push System
2. OPERATOR INSTALLATION (CNTD) Double Push System Header/Frame and Door Preparation Center Operator Cover (with End Caps removed) over opening and mark a vertical line at each end. Align ends of Operator Mounting Bracket and Switch Bracket with vertical lines and adjust vertical position per diagram below. -
Page 9: Wiring
3. WIRING CAUTION • Make sure all wires are properly dressed and secured to prevent interference • Route all wiring away from moving parts, sharp edges, and heat sources • Use copper conductors only • Do not modify the factory wiring or connect into existing electrical circuits or devices TION Refer to the appropriate wiring diagram for the Control Box (Page 19) or the diagram supplied for custom applications. -
Page 10: Arm And Cover Installation
4. ARM & COVER INSTALLATION WARNING Keep hands, clothing, wires, tools, etc., AWAY FROM Operator Motor when the Operator Motor is turned on Make sure the Operator Powers is turned Off. Install a jumper across the control box Main Act and Main Act. Turn the operator power switch to On. - Page 11 4. ARM & COVER INSTALLATION (CNTD) 4.5.2 For pull systems, slide the pull arm roller into the track, then insert a track cap on each end of the track and attach the track to the door: Pull Arm Adjust arm: 4.6.1 For pull systems, remove the locking screw from the arm.
- Page 12 4. ARM & COVER INSTALLATION (CNTD) Test the operator. (See Chapter 5: Operational Check on Page 13) 4.10 Adjust the operator as required. (See Chapter 6: Operator Adjustment on Page 15) 4.11 Snap the optional end cap insert (in bag of screws) into end cap opposite the On/Off switch.
-
Page 13: Operational Check
5. OPERATIONAL CHECK Set the key switch to Auto (if used) and turn on the operator power switch. Activate the operator using the activation device. The operator will perform one sizing cycle. Sizing Cycle: Occurs after power is turned on and a legitimate activation signal is received. - Page 14 5. OPERATIONAL CHECK (CNTD) 5.7.2 Door Close Safety: When the door is in fully open position, activate the safety device and the door should remain open. When the door is operating properly, continue with Step 4.10 on Page 12. Page 14 of 19...
-
Page 15: Operator Adjustment
6. OPERATOR ADJUSTMENT See table below and diagrams (Page 16) for operator feature adjustment. After adjusting, cycle the door several times to check for proper operation. Then continue with Step 4.11 on Page 12. NOTE Adjust Operator for the SLOWEST operation practical, in accordance with the latest revisions of the Americans with Disabilities Act (ADA);... - Page 16 6. OPERATOR ADJUSTMENT (CNTD) Backcheck Position Less More Latch Position Less More Time Delay Less More Open Speed Less More Backcheck Speed Less More Close Speed Less More Page 16 of 19...
-
Page 17: Release For Service
7. RELEASE FOR SERVICE Remove all tools, installation equipment and debris from the vicinity of the door. MANDATORY: Install all Safety, Traffic Control and Instruction Labels onto the door, as required. Failure to do this will leave the INSTALLER LIABLE for any accidents that occur. Give verbal instruction on how to properly operate the door to the owner or person in charge. -
Page 18: Benchmark Iii Software
8. BENCHMARK III SOFTWARE Operation: 8.1.1 Sizing From start-up (Sizing), the door will activate via: • 1-Way Input (Main Act and Main Act). • 2-Way Input (3-Way ON, 3-Way HO and 3-Way GND) with key switch in the ON position, uses either Main Act or Aux Act input •... - Page 19 8. BENCHMARK III SOFTWARE (CNTD) 8.3 Wiring Page 19 of 19...
