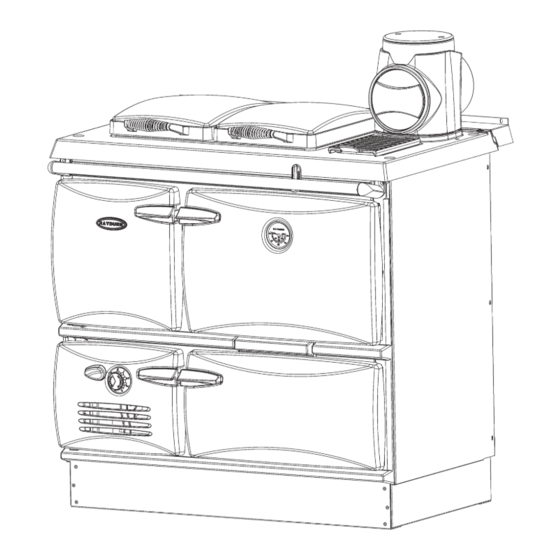

RAYBURN 370 SFW
To ensure safety, satisfaction and maximum service, this Cooker should be installed by a suitably qualified
and competent person. The provision of a Central Heating facility, requires that the hot water systems involved,
conform fully to good plumbing practice and established standards.

INSTALLATION INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 370 SFW and is the answer not in the manual?

Questions and answers

Related Manuals for Rayburn 370 SFW

Summary of Contents for Rayburn 370 SFW

  • Page 1: Installation Instructions

    RAYBURN 370 SFW To ensure safety, satisfaction and maximum service, this Cooker should be installed by a suitably qualified and competent person. The provision of a Central Heating facility, requires that the hot water systems involved, conform fully to good plumbing practice and established standards.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page No. Technical Data ..........................3 Specification ............................4 Site Preparation ..........................5 Cooker Position..........................5 Builders Opening..........................5 The Chimney............................5 Cooker Flue Connection ........................6 Flue Layouts............................6 Ventilation & Combustion Air Requirements ..................7 Flue Box .............................8 Central Heating & Hot Water Systems ....................8 Central Heating Pump Control ......................8 High Up-Draughts ..........................9 Cooker Clearance ..........................9...

  • Page 3: Technical Data

    Consumer Protection Act 1987 Firebricks, Fuel beds, Fuels - when handling use As responsible manufacturers, we take care to make disposable gloves. sure that our products are designed and constructed to meet the required safety standards when properly in- Fire Cement - when handling use disposable gloves. stalled and used.

  • Page 4: Specification

    General Gross Weight: 400kg Flue Outlet Diameter: 150mm Max Water Pressure: 1.79 Bar Minimum Flue Draught: 15 pa Boiler Water Capacity: 20 Litres SPECIFICATION Fig.1 *(Int.) *(Int.) WARNING:- THIS APPLIANCE MUST NOT BE USED WITHOUT WATER CONNECTED, OTHERWISE DAMAGE TO THE BOILER MAY BE CAUSED AND/OR HEAT DAMAGE TO SURROUNDING SURFACES.

  • Page 5: Site Preparation

    Advice on the test method can be obtained from SITE PREPARATION HETAS. The non-combustible hearth must be solid and level When repairing or re-using chimneys its recom- and together with the walls adjacent to the cooker and mended that the building control office be consulted chimney, conform to current Building Regulations.

  • Page 6: Cooker Flue Connection

    COOKER FLUE CONNECTION The position of available types of flue layouts are shown in Figs. 2, 3 and 4, the cooker flue chamber is adaptable to provide either top or back flue outlets, by means of the reversible loose socket. (a) Rear Flue Outlet This must only be used where there is a brick flue immediately behind the cooker.

  • Page 7: Ventilation & Combustion Air Requirements

    There are two Isokern pumice liners which are also An air vent outside the building should not be located less than the dimensions specified within the Building recommended. One is the standard 175mm diameter and the other is a 170mm thin wall. The thin wall has Regulations and B.S.

  • Page 8: Flue Box

    Fig.6 FLUE BOX Apply fire cement to the socket in the hob. Attach a short length of 6” (150mm) I.D. pipe approx. 10” (250mm) long to the outlet of the flue box by means of fire cement. Place the flue box on the hob and the pipe into the wall and consolidate the fluebox and pipe into the fire cement.

  • Page 9: High Updraughts

    HIGH UPDRAUGHTS TESTING & COMMISSIONING After completing the installation, the heating contrac- Tall chimneys may develop excessively high up- tor should demonstrate to the user the operation of draughts which prevent the appliance operating cor- the appliance and the routine cleaning method. rectly.
  • Page 10 EXPLODED VIEW...
  • Page 11 PARTS LIST Description Code Description Code Baffle Q00166BXX Spin Valve B00032AXX Base Plate Q00168BXX Front Cleaning Door B00164BXX Oven Bottom Back Q00169AXX Bonnet Blanking Plate B00296AXX Fire Door B00558AXX Oven Bottom Side (Left) Q00170BXX Oven Bottom Side (Right) Q00171BXX Oven Door B00559AXX Oven Bottom Q00172BXX...
  • Page 12 With AGA Rangemster’s policy of continuous prod- uct improvement, the Company reserves the right to change specifications and make modifications to the appliance described at any time. Manufactured by AGA Rangemaster Station Road Ketley Telford Shropshire TF1 5AQ England www.rayburn-web.co.uk www.agacookshop.co.uk...
