MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 5 on page 6.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left side shield must be removed.

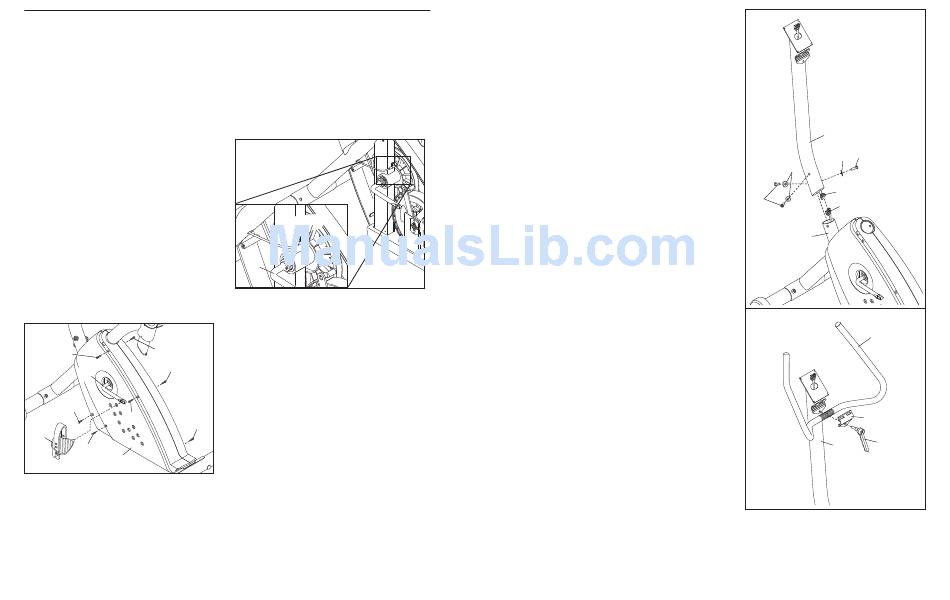

Turn the Crank (21) to the position shown. Using an
adjustable spanner, turn the Left Pedal (24) clockwise
and remove it. Next, remove the indicated M4 x
25mm Screws (42) and the indicated M4 x 16mm
Screws (49). Then, carefully remove the Left Side
Shield (17).
42
49
49
21
42
42
42
24
49
17
Next, locate the Reed Switch (43). Turn the Crank
(21) until the Magnet (38) is aligned with the Reed
Switch. Loosen, but do not remove, the indicated M4 x
16mm Screw (49). Slide the Reed Switch slightly clos-
er to or away from the Magnet, and then retighten the
Screw. Turn the Crank for a moment. Repeat until the
console displays correct feedback. When the Reed
Switch is correctly adjusted, reattach the left side
shield and the left pedal.
38
43
49
21
12
3. Whilst another person holds the Upright (13) in the
position shown, connect the Upper Wire Harness (36)
to the Lower Wire Harness (55).
Carefully pull the excess Upper Wire Harness (36) out
of the top of the Upright (13), and slide the Upright onto
the Frame. Be careful to avoid pinching the Wire
Harnesses. Next, attach the Upright with three M8 x
25mm Button Screws (45) and three M8 Split Washers
(41).
4. Identify the Handlebar Handle (9), which has a longer
threaded shaft than the Seat Bracket Handle (not
shown).
Attach the Handlebar (15) to the Upright (13) with the
Handlebar Bracket (58) and the Handlebar Handle (9).
Note: The Handlebar Handle functions like a spanner.
Turn the Handle clockwise, pull it away from the
Upright, turn it counterclockwise, push it toward the
Upright, and then turn it clockwise again. Repeat this
process until the Handle is tight.
3
Be careful to avoid
pinching the wire
harnesses whilst
attaching the
upright.
13
45
41
41
36
45
55
1
4
15
58
9
13
5
