Summary of Contents for First Data VeriFoneVX820 Duet

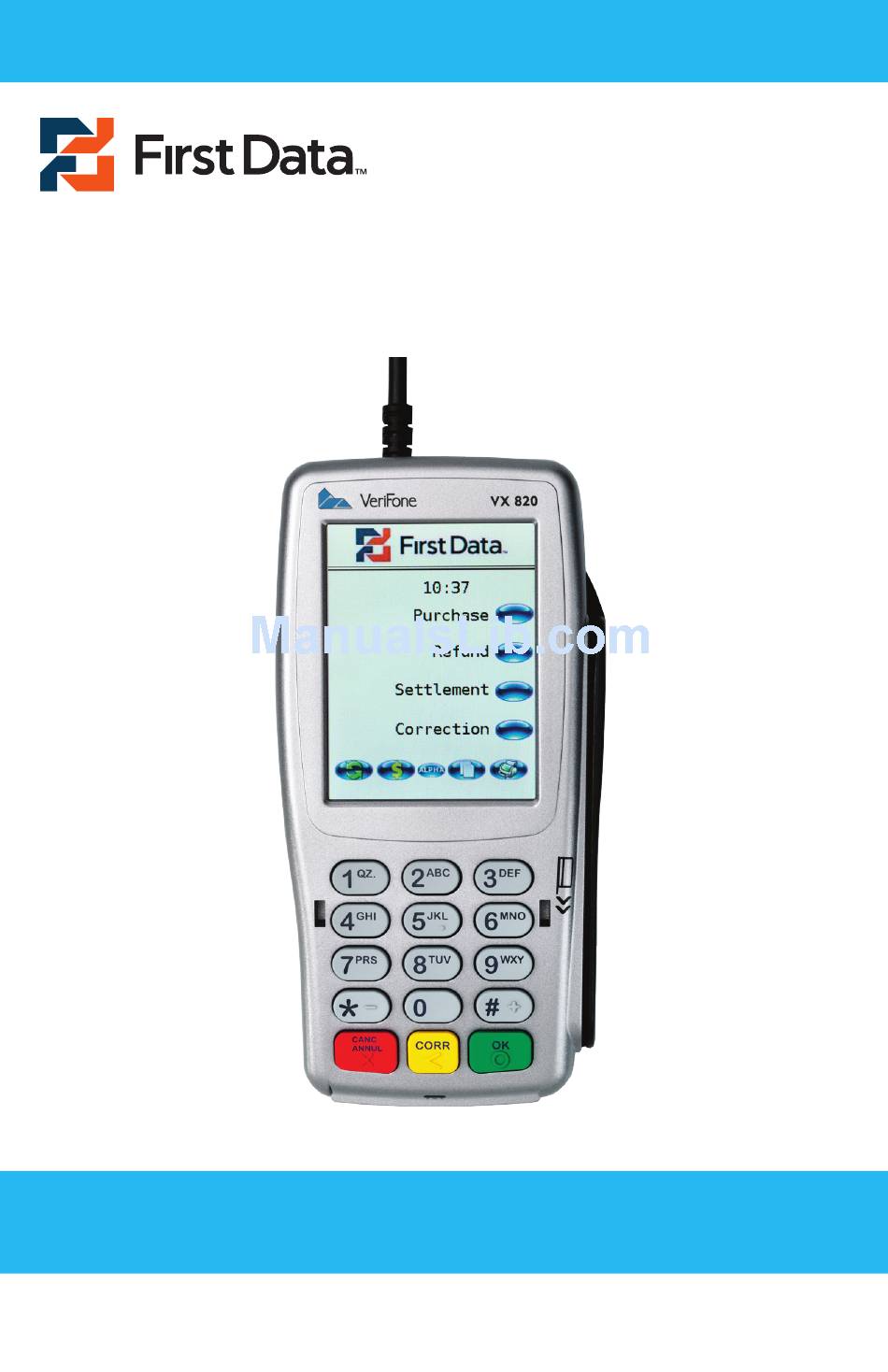

- Page 1 VeriFoneVX820 Duet Quick Setup Guide VX820Duet-QSG-2015-08 (English)
-
Page 2: What's In The Box
VX820Duet-QSG-2015-08 (English) Thank you for choosing a First Data Terminal First Data terminals are some of the fastest, most secure point-of- sale terminals available. Installation is quick and easy. Simply follow the instructions and begin accepting card transactions today. What’s in the box? VeriFone Vx820 Duet base and PIN pad †... -
Page 3: Port Connections
VX820Duet-QSG-2015-08 (English) Getting to know the Vx820 Duet The picture shows a VX820 Duet terminal. Port Connections PHONE: For dial-up transactions using a phone line. USB AND RS232: These ports are not in use, but may be used for future enhancements such as peripheral pin pads, cheque readers, or used for technical intervention or downloads. -
Page 4: Loading The Paper
VX820Duet-QSG-2015-08 (English) Let’s get started... TYPICAL SET-UP TIME: 10-15 minutes Where to put the FD Terminal Place the terminal on a desk or tabletop. Avoid areas with direct sunlight, objects that radiate heat, excessive dust and other electrical devices that can cause excessive voltage. -
Page 5: Get Connected
VX820Duet-QSG-2015-08 (English) Get connected You may choose an IP connection (DSL or cable) or dial-up. If you choose dial-up you must use a dedicated analogue phone line, which may be the same line as that which your fax machine connects to. Telephone line sharing increases risks of communication failures, and additional services such as call waiting, voicemail alerts, and other dial tone interference may cause communication failures. - Page 6 VX820Duet-QSG-2015-08 (English) DiaL DeDicateD Line PHONE JACK pin paD Pin pad cable Page 6...
-
Page 7: Plug In The Power
VX820Duet-QSG-2015-08 (English) Plug in the power Before using the power supply, please connect all peripherals to the terminal. Failure to do so may result in damage to the unit or connected devices. Connect the power cord to the power supply via the three-prong end and receiver. -
Page 8: Using The Card Reader
Quick Reference Guide for details. © 2015 First Data Canada Ltd. is a registered ISO/MSP of Wells Fargo Financial Cor- poration Canada, Toronto, ON, Canada. All Rights Reserved. All trademarks, service marks and trade names referenced in this material are the property of their respective owners.
