ENTERING THE SETUP MENU

Press twice and hold the SETUP key
until the word DAMPER appears on the
LCD. (Figure 2)

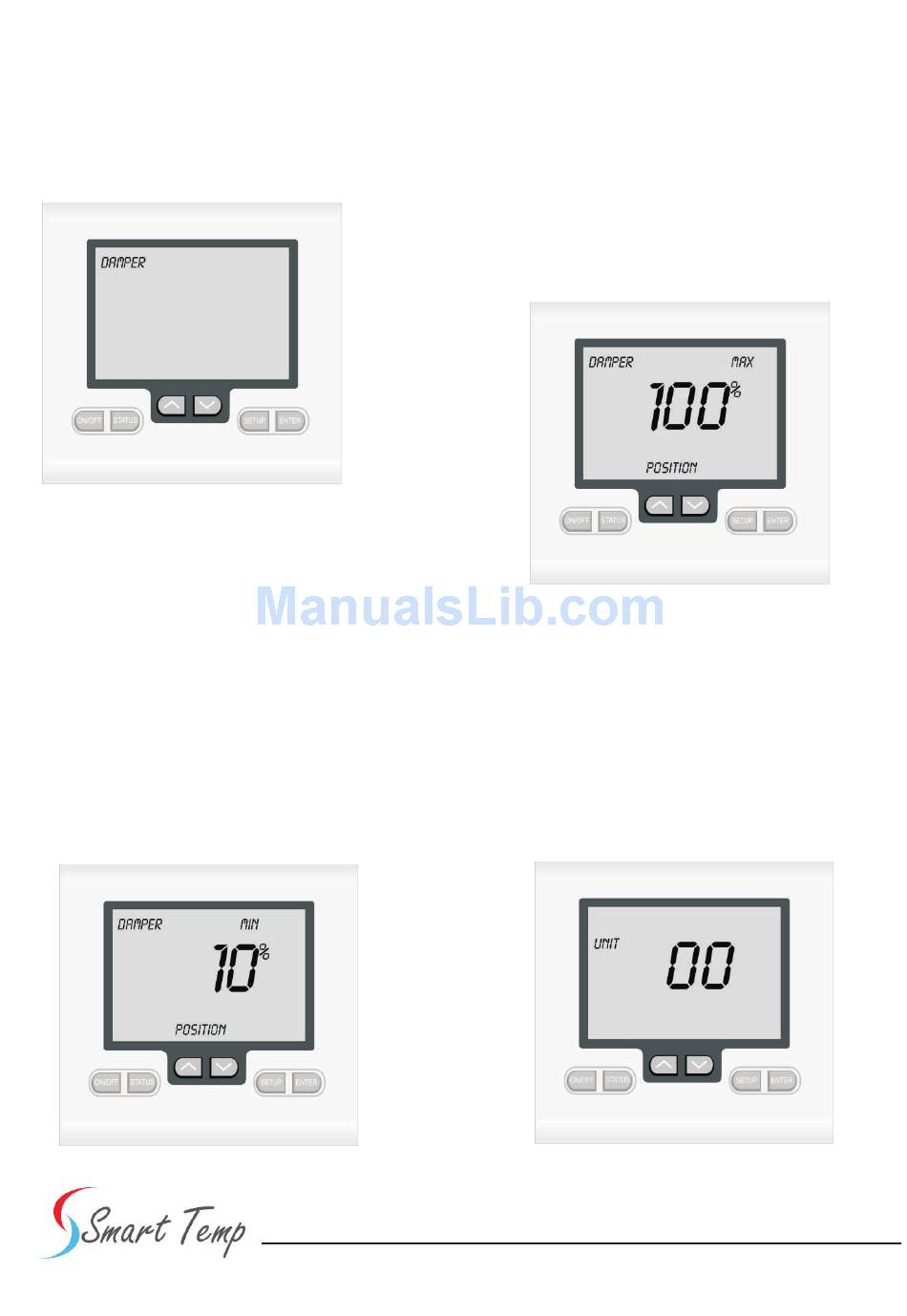

FIGURE 2
SETTING THE MINIMUM DAMPER
POSITION
Press the SETUP key again and the
LCD will display the minimum damper
position. The factory default is 10%
which means the damper is driven 90%
closed after a heating or cooling call is
satisfied. Press the UP and DOWN keys
to change the minimum damper
position. Position may be adjusted in
10% increments. (Figure 3)
FIGURE 3
SETTING THE MAXIMUM DAMPER
POSITION
Press the SETUP key again and the
LCD will display the maximum damper
position for heating and cooling. The
factory default is 100% which means the
damper can drive fully open with a call
for heating or cooling. Position may be
adjusted in 10% increments using the
UP and DOWN keys. (Figure 4)
FIGURE 4
SETTING A UNIT NUMBER
Press the SETUP key again and the
LCD will display the word UNIT. The
factory default is 00. This number can
be used to assign the SMT-AZC to a
particular HVAC unit. Use the UP and
DOWN keys to assign a UNIT number
from 00 to 99. (Figure 5)
FIGURE 5
