Smart temp SMT-AZC Installation & Operation Manual page 11

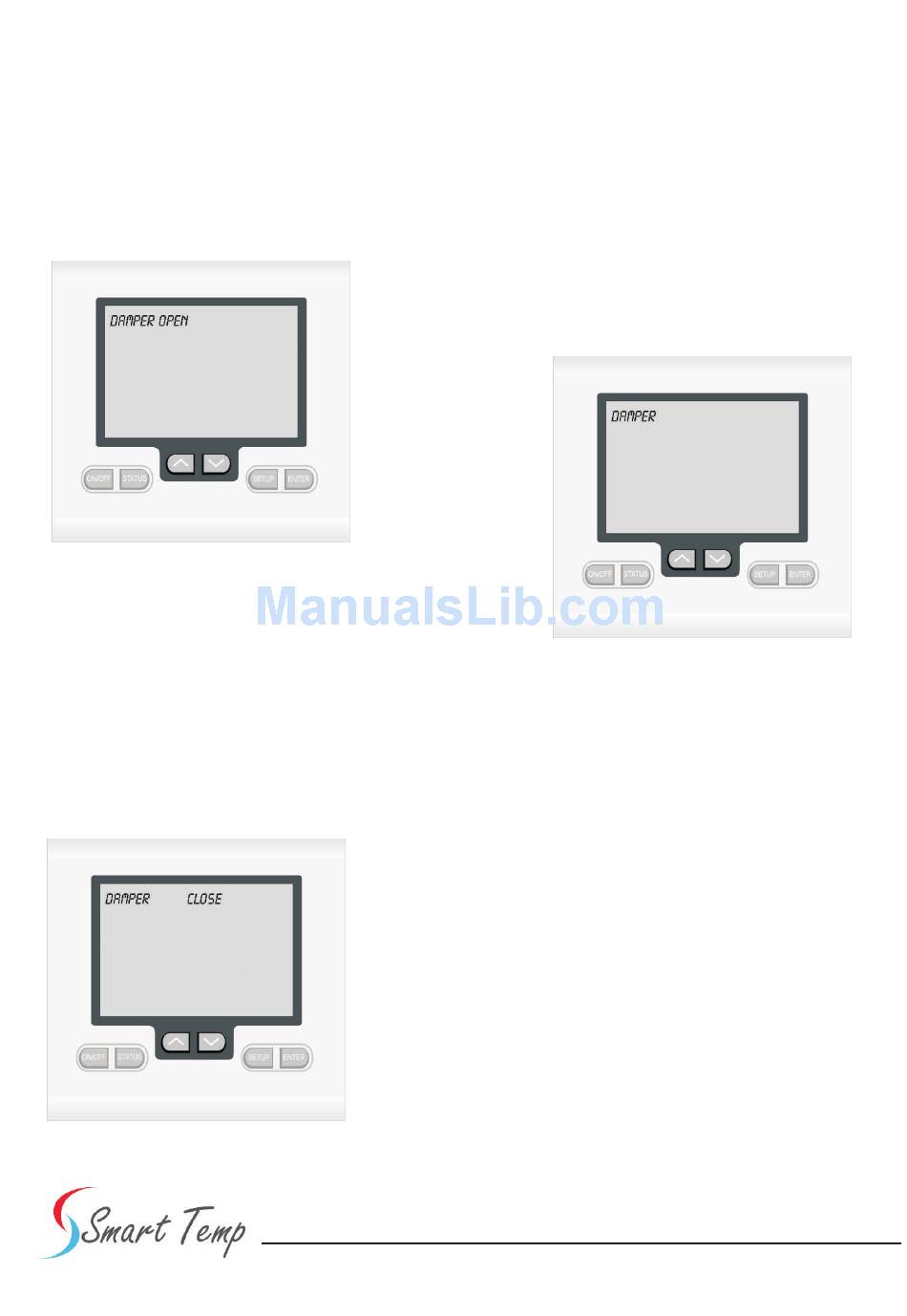

OVERRIDE TO OPEN
Press the UP and DOWN keys until the
word OPEN appears on the LCD and
then press the ENTER key. The damper
will drive open and remain in the open
position until the override is cancelled.
(Figure 16)
FIGURE 16
OVERRIDE TO CLOSE
Press the UP and DOWN keys until the
word CLOSED appears on the LCD and
press the ENTER key. The damper will
drive closed and remain in the closed
position until the override is cancelled.
(Figure 17)
FIGURE 17
CANCELLING THE DAMPER
OVERRIDE
In order for the SMT-AZC to control
normal damper operation, the override
must be cancelled. Press and hold the
SETUP key until the word DAMPER
OPEN or DAMPER CLOSE appears on
the LCD. Use the UP or DOWN key until
only the word DAMPER is displayed and
then press the ENTER key. The
thermostat will then resume normal
operation. Figure 18)
FIGURE 18
SMT-AZC SPECIFICATIONS
Input Voltage
Relay Rating
Operating Temperature
Operating RH
Size
LCD Display Size
Temperature Sensor
Accuracy
Display Resolution
Control Range
Back Light
Back Light Life
Communications Protocol
Approvals
Warranty
24 VAC 50/60 Hz
24 VAC @ 1Amp per relay
23° F to 122° F
0-95% (non-condensing)
4-7/16" W x 4-1/16" H x 7/8" D
2-3/4" W x 1-7/8" H
10K NTC type 3
+/- 1° F @ 77° F
1° F
36° F to 96° F
Blue EL (Electro Luminescent)
3,000 hours to half brightness
Modbus
FCC (Part 15) (Pending) C-tick
3 Years
06-1050-051410
