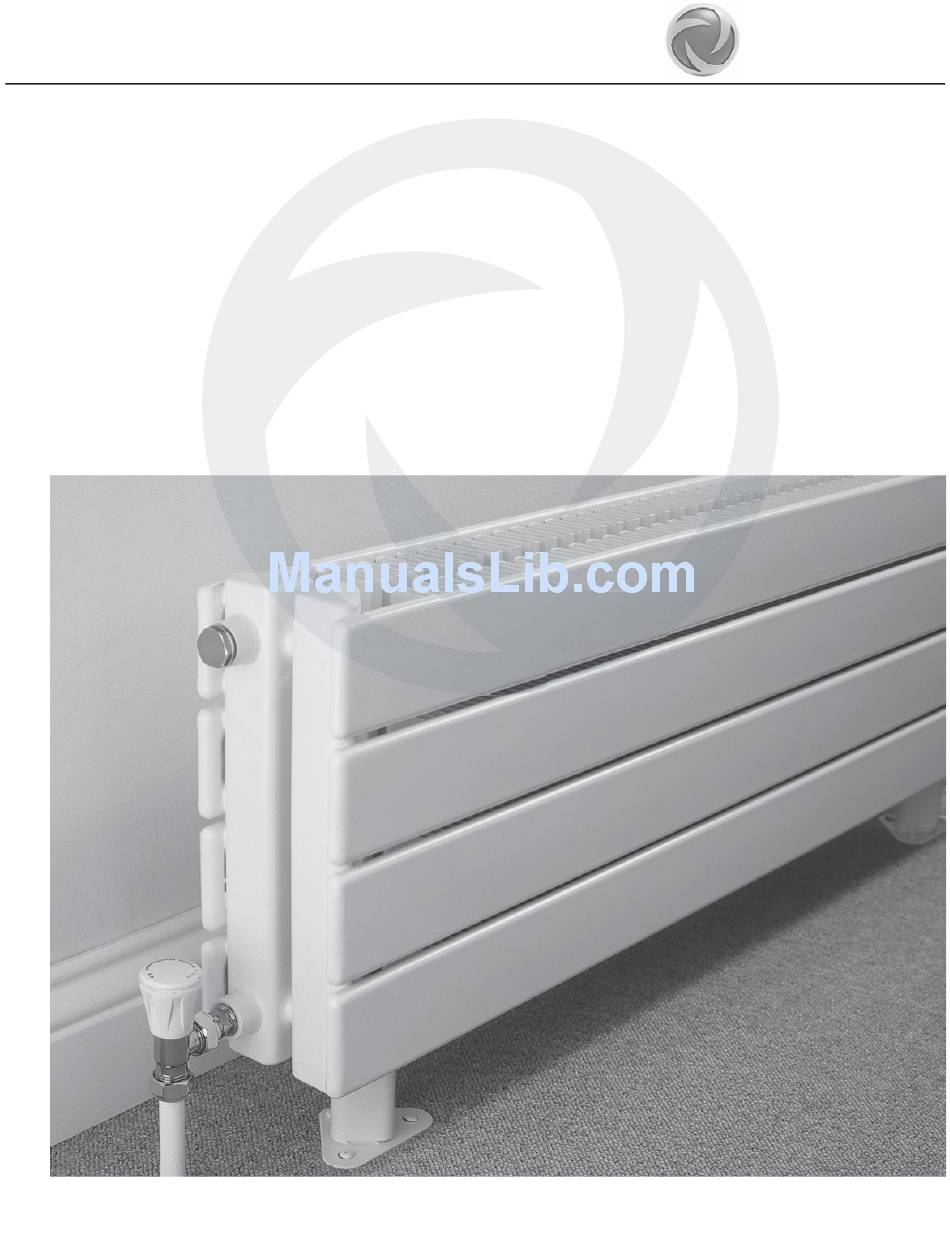

- Page 1 Décor Radiator Series MYSON Installation Guide Revised 2/12...
-
Page 2: Table Of Contents
The remedy in all cases shall be to repair or replace the product at Myson’s discretion upon verification of a factory defect. If replacement is required, and an exact replacement product is no longer available, Myson reserves the right to furnish a similar product of equal value. -
Page 3: Information Symbols
Myson products are designed to be installed by professional tradespeople. Myson instructions are meant to be thorough; however it is assumed that the installer has the appropriate technical knowledge related to building codes, standard trade practices, and proper use of the tools of the trade. Should a... -
Page 4: Before You Begin
• Vent plug INTRODUCTION The Myson Décor Radiator will keep any room in comfort and style. We at Myson Inc. thank you for your purchase of the Décor Radiator. Each radiator combines Myson’s compact design and advanced steel construction with a durable baked epoxy/polyester enamel powder coat finish. -
Page 5: Rough-In
Valves. Prior to committing pipe work behind finish floor or wall materials, consult Myson for assistance at 1-800-698-9690. Dimensions are in inches. All valves are by MYSON and are 1/2” thread engagement in a vertical pattern. For two LKD valves, use LKD and TRV dimensions. -
Page 6: Connection Arrangements
For alternate methods E and F, derate the radiation by 5% NOTE: Myson Radiators have British Standard Pipe Threads. All Myson Radiators are shipped with nylon paint plugs. All plugs must be removed and replaced by the appropriate plug, vent or valve. Failure to use... -
Page 7: Mounting Details
Décor Radiator Series MYSON Mounting Details 51" to 96" H11 Baseboard 24" to 48" Flexible Along All Fins 5-7/8" 5-7/8" 5-7/8" 5-7/8" Extended Bracket Optional OPTIONAL 1-1/8" OFFSET MOUNTING PLATE Part # BBWB-O 2 Tubes 2 Tubes 1-7/8" 5/8" 5-7/8"... -
Page 8: Ts4 Connection Options
2-1/8" 2-3/8" Min. All Myson Radiators are shipped with nylon paint plugs. All plugs must be removed and replaced by the appropriate stainless steel plug, vent or valve. Failure to use Myson supplied plugs may result in significant water damage! -
Page 9: V10 Connection Options
1-3/4" 2-3/8" Min. All Myson Radiators are shipped with nylon paint plugs. All plugs must be removed and replaced by the appropriate stainless steel plug, vent or valve. Failure to use Myson supplied plugs may result in significant water damage! -
Page 10: H11 2,3,4 Tube Connection Options
Décor Radiator Series MYSON H11 2, 3, 4 Tube Connection Options 2TRV1/2ANS LKD 16AN NOTE: See Radiator Range Technical Specifications for Mounting Details of Radiators. TRV head with vertical TRV head with inverted TRV head with angle body head angle body head... -
Page 11: H11 6,8,10 Tube Connection Options
Décor Radiator Series MYSON H11 6, 8, 10 Tube Connection Options 2TRV1/2ANS LKD 16AN NOTE: See Radiator Range Technical Specifications for Mounting Details of Radiators. TRV head with vertical TRV head with inverted TRV head with angle body head angle body head... -
Page 12: Conventional Wall Installation-Radiator
NOTE: Attach the hangers with suitable hardware. Adequate blocking is recommended to support the weight of the radiators. Hanger Mounting Bracket Many MYSON products are in excess of 70 pounds. Care should be taken to have help to lift larger radiators into place to avoid lifting injuries. -
Page 13: Conventional Wall Installation-Baseboard
Wall stud Radiator fins Wall hanging bracket Many MYSON products are in excess of 70 pounds. Care should be taken to have help to lift larger radiators into place to avoid lifting injuries. -
Page 14: Valve Installation
Décor Radiator Series MYSON Valve Installation Nylon shipping plugs are meant solely for keeping paint from radiator threads during the painting process. Failure to remove plastic plugs and install the stainless metal plugs can result in significant property damage if heating system is run with plastic plugs in place. - Page 15 Myson will not be responsible for any damages, injuries or unsatisfactory performance of the Myson product used. NOTE: MYSON products have BSP male and female threads. BSP threads are a straight running thread NOT tapered like NPT. Myson Radiator Valves are designed with BSP threads at radiator side and NPT or compression connections to system piping.
-
Page 16: System Start-Up & Maintenance
System Start-Up & Maintenance Failure to flush system of debris and flux may cause premature radiator failure, which can result in leaks and property damage NOT covered under the Myson Warranty. SYSTEM START-UP Step 1 Fill and vent the system.
