- Page 1 BR-6208ACD Quick Installation Guide 06-2014 / v1.0...
-
Page 2: Package Contents
Package Contents Before you start using this product, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): CD-ROM BR-6208ACD Antenna x 3 Ethernet Cable Quick Installation Guide Power Adapter... -
Page 3: Installation

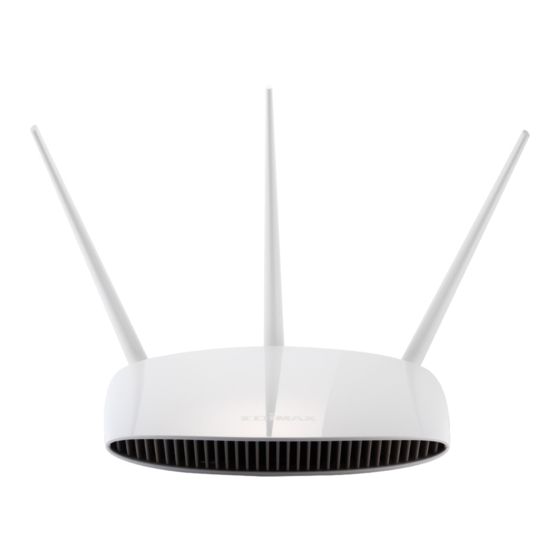

Installation Screw in the included antennas to the back of the BR-6208ACD, taking care to attach the two 2.4GHz antennas to the outside and the 5GHz antenna to the center. Each antenna is labeled on the base with “2.4GHz” or “5GHz”. - Page 4 Use a Wi-Fi device (e.g. computer, tablet, smartphone) to search for a Wi-Fi network with the SSID “edimax.setup” or “edimax.setup5G” and connect to iOS 4 or Android 4 and above are required for setup on a smartphone or tablet. Open a web browser and if you do not automatically arrive at the “Get Started”...
- Page 5 Choose if you want to use your BR-6208ACD in its default Wi-Fi router mode or in a different mode. The BR-6208ACD’s five available modes are outlined below: Wi-Fi Router Mode The device connects to your modem and provides 2.4GHz and/or 5GHz Internet (wireless and Ethernet) access for your network devices.
- Page 6 Follow the on-screen instructions to complete setup. Refer to the user manual if you need more help. Wi-Fi Router: Other Modes:...
-
Page 7: Browser Based Configuration Interface
BR-6208ACD. To access the browser based configuration interface, enter http://edimax.setup into the URL bar of a web browser on a network device which is connected to the BR-6208ACD. If you can not access edimax.setup, connect the BR-6208ACD to a computer using an Ethernet cable and try again. -
Page 8: Troubleshooting
Troubleshooting 1. In range extender mode, is my BR-6208ACD dual-band? a. Yes. The BR-6208ACD can extend 2.4GHz & 5GHz Wi-Fi signals concurrently, but you must connect your BR-6208ACD to each (2.4GHz & 5GHz) network separately during iQ setup. During iQ Setup, you will be asked to select both a 2.4GHz &... - Page 9 SSID (above) +"_2EX". Encryption Select and enter the encryption information for your existing, hidden network. 4. What do the LEDs mean? The LEDs can be identified by icons on the underside of the BR-6208ACD.
- Page 10 Color LED Status Description Power BR-6208ACD is on. White BR-6208ACD is off. Internet connection is ready. Internet Factory default state, or Ethernet Blue Flashing cable not connected, or no Internet connection. 2.4GHz Wi-Fi wireless activity 2.4GHz Wi-Fi (transferring/receiving data). Blue Flashing 2.4GHz WPS is active.
- Page 11 7. How do I reset my device to factory default settings? a. To reset the device back to its factory default settings, press and hold the WPS/Reset button for over 10 seconds, until the white power LED begins to flash. Please wait a few minutes for the product to restart. When the device restarts, all settings will be reset.
- Page 12 BR-6208ACD. If you are too far away from your existing router, then it is difficult for the BR-6208ACD to receive a wireless signal.
-
Page 13: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 14 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2009/125/EC. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 1999/5/CE, 2009/125/CE. Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními Čeština: směrnic 1999/5/ES, 2009/125/ES.
-
Page 15: Declaration Of Conformity
Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: AC750 Multi-Function Dual-Band Wi-Fi Router Model No.: BR-6208ACD The following European standards for essential requirements have been followed:... - Page 16 Notice According to GNU General Public License Version 2 This product includes software that is subject to the GNU General Public License version 2. The program is free software and distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more than the costs of physically performing source distribution, a complete machine-readable copy of the corresponding source code.
- Page 17 intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
- Page 18 6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’...
