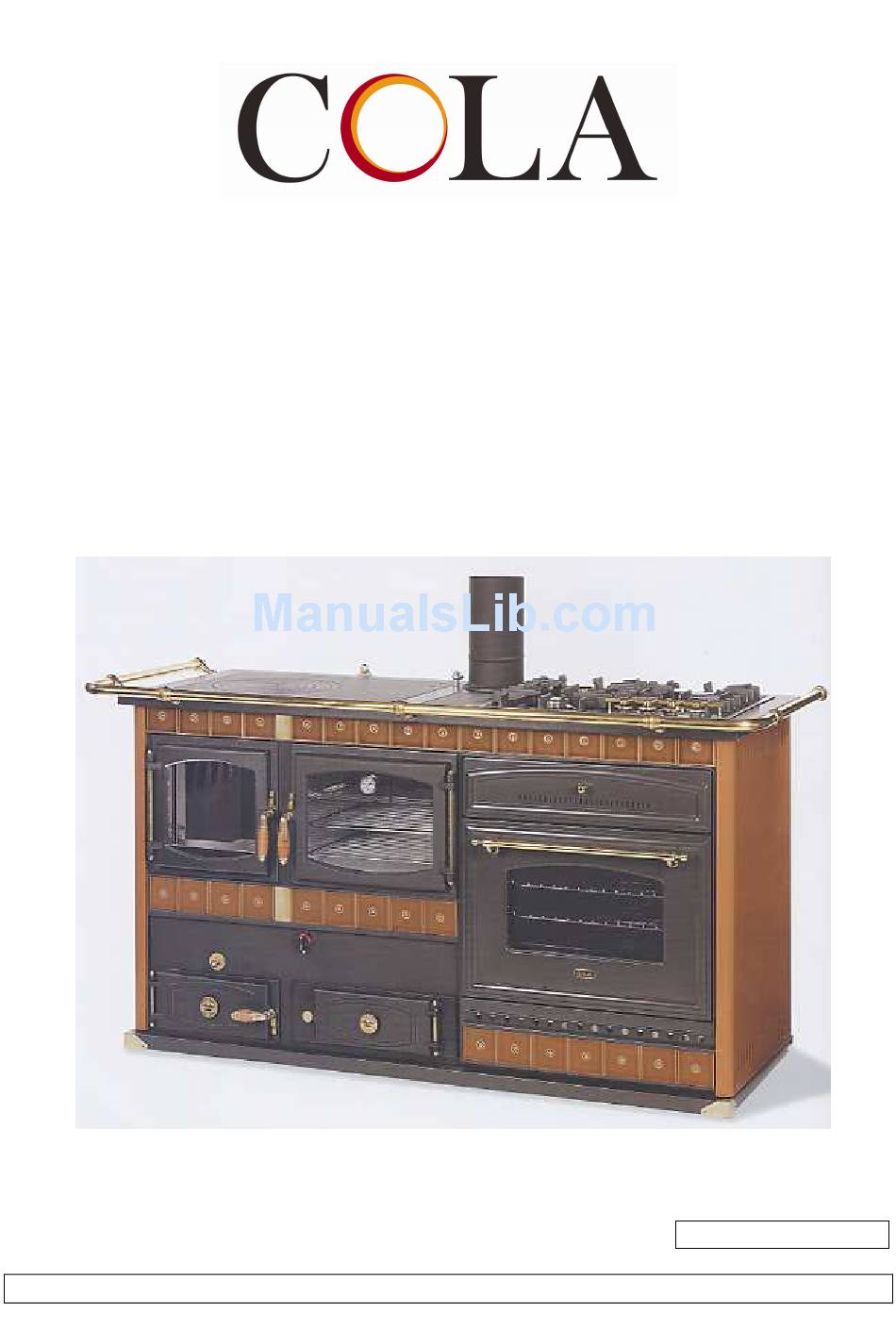

- Page 1 Installation, use and maintenance manual Combined heating stove model TERMO EMMANUELLE 48.41.35.011.EN 07/09 Read the instructions carefully before installation and startup...
-
Page 2: General Information
1 - GENERAL INFORMATION 1.1 Introduction 1.2 Safety rules 1.3 Technical description 1.3.1 Ash and fire door 1.3.2 Primary air controls 1.3.3 Cast iron hotplate 1.3.4 Bypass damper 1.3.5 Oven 1.3.6 Baffle cleaning door 1.3.7 Electric oven and hob: instructions 1.3.8 Thermostat 1.3.9 Grate raising screw 1.4 Fuel... -
Page 3: Safety Rules
Have the flue inspected by a specialised technician; For operation faults, doubts or problems please contact your nearest service centre. Cola s.r.l. declines any liability for problems, breakage or accidents caused by failure to follow or apply the instructions contained in this manual. -
Page 4: Technical Description
1.3 Technical description The EMMANUELLE heating stove is suitable for cooking and heating and is tested for use exclusively with wood. Structure: in steel and cast iron Radiant hotplate: in cast iron Fire door: H x W 225x245 mm in sheet steel Fe 360 int. thick. 4 mm and ext. 3 mm. Combustion chamber: In stainless steel H x W x D 255x320x520 mm Wood-fired oven:... - Page 5 1.3.1 Fire door (C) and ash door (A) The doors are opened by pulling the handles outwards. A protective glove is supplied for opening the stove fire door (the handles become very hot). The ash zone has an adjustable combustion air inlet opening for use during the lighting stage.
-
Page 6: Permissible And Non-Permissible Fuels
1.3.9 Grate raising screw (H) The grate raising device is operated by means of a nut located above the ash door on the front of the heating stove. When the heating stove is used for cooking on the hotplate and in the oven, it is advisable to raise the ash grate by turning the nut using the wrench supplied 1.4 Permissible and non-permissible fuels Permissible fuels are dry and resin-free natural-type logs of wood (beech, oak and birch), 20-25 cm long. - Page 7 For the end-user: Contact the service centre and/or your dealer to request replacement parts. For the dealer: To request any replacement parts contact the Cola s.r.l. service centre and/or send a fax clearly specifying the following data: - stove model;...
-
Page 8: Electrical Connection
2.5 Electrical connection Installation must be carried out in full compliance with the current regulations on electrical installation. Before connecting the hob and electric oven to the power supply, make sure: 1. a differential safety switch is installed; 2. the differential safety switch and the home electrical system are suitable for the loads of the appliances; 3. - Page 9 Wood-fired heating chamber Fig. 3 Example of plumbing system 2nd CIRCUIT 1st CIRCUIT heating C - delivery M ½ ” A - delivery M 1” D - delivery M ½ ” B - delivery M 1” M - delivery F 1” SUPPLY Water system External circuit to be created at the customer's premises R - return F 1”...
-
Page 11: Advice On Flues And Connections
Important: Before lighting: 1- Make sure there is water inside the heating stove; never light the heating stove without water inside it: the irregular stresses could cause breakage of the boiler; 2- Check the power; 3- After a long idle period, make sure the circulating pump works; 4- In summer the heating stove should not be lit, or can be lit only with a moderate flame and only if elimination of the heat is ensured with a storage tank or heat exchanger. -
Page 12: Stove Use
Before connecting a heating stove to an existing chimney, in addition to complying with that described above, make sure there are no openings or cracks where air could enter and cause a temperature decrease affecting the draught. Also make sure there are no hindrances caused by foreign bodies or a build-up of soot. - Page 13 3.3 Lighting and controlling the fire To light the fire, it is advisable to use small sticks of wood and newspaper, or other means available on the market (excluding any flammable liquid substance). During the lighting stage, the air control on the ash door must be fully open and the thermostat in position 5; once the stove is lit it is used to regulate stove heat output.
-
Page 14: Routine Stove Cleaning And Maintenance
4.3 Stove cladding maintenance Clean the cladding only when the stove is cold. COLA ceramics are handicraft production and therefore may have minor surface imperfections such as tiny spots or slight colour differences. It is advisable to use a soft dry cloth to clean the ceramic surfaces; the use of detergents could highlight any imperfections. -
Page 15: Troubleshooting
4.7 Cleaning the flue and baffle. A reduction in heat output is nearly always due to obstruction of the flue. Also, the escaping of burnt gases with odours can be a sign of an obstructed flue. The flue of your heating stove must be cleaned at regular intervals. The amount of soot and the frequency of cleaning will depend largely on the type of fuel and its use (low or high heat output). - Page 16 5.7 Radiators or heating system inefficient Make sure the system shutoff valves are open. - Vent any air from the radiators. - Make sure there is water in the system. - Check the thermostat and its correct position. Check the controller power supply, that the button is ON, the pump works and the activation temperature (50-60)°...
-
Page 17: "Ce" Marking Information
6.2 "CE" marking information INFORMAZIONI MARCATURA CE CE MARKING INFORMATION Cola EN 12815: 2001 + A1: 2004 Termocucine a combustibile solido Residential cooker fired by solid fuels Ref. TERMOJOHANNA COMBY – TERMOJOHANNA - TERMOEMMANUELLE Distanza minima di sicurezza da materiali infiammabili...
