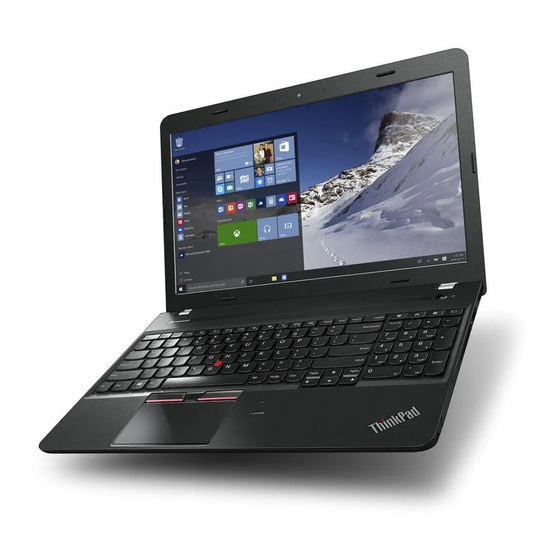

ThinkPad E560 and E565

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E560 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ThinkPad E560

Summary of Contents for ThinkPad E560

  • Page 1 Hardware Maintenance Manual ThinkPad E560 and E565...
  • Page 2 Note: Before using this information and the product it supports, be sure to read the general information under Appendix A “Notices” on page 109. First Edition (November 2015) © Copyright Lenovo 2015. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA”...

  • Page 3: Table Of Contents

    Contents About this manual... Solving recovery problems ..Recovery overview for the Windows 10 operating Chapter 1. Safety information ..1 system .
  • Page 4 Retaining serial numbers... 1150 Audio connector card with cable ..Restoring the serial number of the system 1160 Speaker assembly ... unit .

  • Page 5: About This Manual

    Use this manual along with the advanced diagnostic tests to troubleshoot problems. Important: This manual is intended only for trained service technicians who are familiar with ThinkPad products. Use this manual along with the advanced diagnostic tests to troubleshoot problems effectively.
  • Page 6 Hardware Maintenance Manual...

  • Page 7: Chapter 1. Safety Information

    Chapter 1. Safety information This chapter presents the following safety information that you need to be familiar with before you service a ThinkPad notebook computer. • “General safety” on page 1 • “Electrical safety” on page 2 • “Safety inspection guide” on page 3 •...

  • Page 8: Electrical Safety

    Electrical safety Observe the following rules when working on electrical equipment. Important: • Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents. •...

  • Page 9: Safety Inspection Guide

    This guide addresses only those items. You should use good judgment to identify potential safety hazards due to attachment of non-ThinkPad features or options not covered by this inspection guide. If any unsafe conditions are present, you must determine how serious the apparent hazard could be and whether you can continue without first correcting the problem.

  • Page 10: Grounding Requirements

    Notes: 1. Use product-specific ESD procedures when they exceed the requirements noted here. 2. Ensure that the ESD protective devices you use have been certified (ISO 9000) as fully effective. When handling ESD-sensitive parts: • Keep the parts in protective packages until they are inserted into the product. •...
  • Page 11 DANGER DANGER DANGER DANGER DANGER DANGER Chapter 1 Safety information...
  • Page 12 DANGER Hardware Maintenance Manual...
  • Page 13 PERIGO PERIGO Chapter 1 Safety information...
  • Page 14 PERIGO PERIGO PERIGO PERIGO PERIGO PERIGO Hardware Maintenance Manual...
  • Page 15 DANGER DANGER DANGER DANGER DANGER Chapter 1 Safety information...
  • Page 16 DANGER DANGER DANGER VORSICHT VORSICHT Hardware Maintenance Manual...
  • Page 17 VORSICHT VORSICHT VORSICHT VORSICHT Chapter 1 Safety information...
  • Page 18 VORSICHT VORSICHT Hardware Maintenance Manual...
  • Page 19 Chapter 1 Safety information...
  • Page 20 Hardware Maintenance Manual...
  • Page 21 Chapter 1 Safety information...
  • Page 22 Hardware Maintenance Manual...
  • Page 23 Chapter 1 Safety information...

  • Page 24: Laser Compliance Statement (Multilingual Translations)

    Laser compliance statement (multilingual translations) The laser compliance statements in this section are provided in the following languages: • English • Arabic • Brazilian Portuguese • French • German • Hebrew • Japanese • Korean • Spanish • Traditional Chinese Hardware Maintenance Manual...
  • Page 25 Chapter 1 Safety information...
  • Page 26 Hardware Maintenance Manual...
  • Page 27 Chapter 1 Safety information...
  • Page 28 Hardware Maintenance Manual...
  • Page 29 Chapter 1 Safety information...
  • Page 30 Hardware Maintenance Manual...

  • Page 31: Chapter 2. Important Service Information

    Chapter 2. Important service information This chapter introduces the following important service information that applies to all machine types supported by this manual: • “Strategy for replacing FRUs” on page 25 – “Strategy for replacing a hard disk drive or a solid-state drive” on page 25 –...

  • Page 32: Important Notice For Replacing A System Board

    Attention: The drive startup sequence in the computer you are servicing might have been changed. Be extremely careful during write operations such as copying, saving, or formatting. If you select an incorrect drive, data or programs can be overwritten. Important notice for replacing a system board Some components mounted on a system board are very sensitive.
  • Page 33 To identify the major FRUs for a product, do the following: 1. Go to: http://support.lenovo.com/ibasepartslookup 2. Type the Machine Type and Serial Number in the corresponding fields. 3. Click Submit. eSupport also can be used to view the general FRU list for a product. The FRU list is a general list of components and does not contain specific model information.
  • Page 34 Hardware Maintenance Manual...

  • Page 35: Chapter 3. General Checkout

    Chapter 3. General checkout This chapter presents following information: • “What to do first” on page 29 • “Checkout guide” on page 30 • “Power system checkout” on page 33 Some descriptions in this chapter might not apply to your particular computer. Before you go to the checkout guide, be sure to read the following important notes.

  • Page 36: Checkout Guide

    Checkout guide Use the following procedures as a guide in identifying and correcting problems with the ThinkPad notebook computer. Note: The diagnostic tests are intended to test only ThinkPad products. The use of non-ThinkPad products, prototype cards, or modified options can lead to false indications of errors and invalid system responses.

  • Page 37: Uefi Diagnostic Program

    If an error code is displayed, go to “Symptom-to-FRU index” on page 47 for error code descriptions and troubleshooting hints. 2. When the ThinkPad logo is displayed, repeatedly press and release the F10 key. The main screen of the UEFI diagnostic program is displayed.

  • Page 38: Bootable Diagnostic Programs

    33, and check the power sources. If an error code is displayed, go to “Symptom-to-FRU index” on page 47 for error code descriptions and troubleshooting hints. 3. When the ThinkPad logo is displayed, repeatedly press and release the F12 key. When the Boot Menu window opens, release the F12 key.

  • Page 39: Power System Checkout

    Power system checkout To verify if a battery pack or an ac power adapter is functional, do the following: 1. Turn off the computer. 2. Remove the battery pack. 3. Connect the ac power adapter. 4. Check that power is supplied when you turn on the computer. 5.

  • Page 40: Checking The Battery Pack

    4. Check the battery status icon again. If the same error still exists, replace the system board. Otherwise, check the original battery pack. See “Checking the battery pack” on page 34. Checking the battery pack This system supports only batteries specially designed for this specific system and manufactured by Lenovo or an authorized builder.
  • Page 41 Wire Voltage (V dc) +2.5 to +3.2 Black Ground • If the voltage is correct, replace the system board. • If the voltage is not correct, replace the coin-cell battery. • If the coin-cell battery discharges quickly after replacement, replace the system board. Chapter 3 General checkout...
  • Page 42 Hardware Maintenance Manual...

  • Page 43: Chapter 4. Related Service Information

    Chapter 4. Related service information This chapter presents following information: • “Recovery overview for the Windows 7 operating system” on page 37 • “Recovery overview for the Windows 10 operating system” on page 42 • “Passwords” on page 44 • “Power management”...

  • Page 44: Performing Backup And Recovery Operations

    Creating recovery media This section provides instructions on how to create recovery media. Note: You can create recovery media using discs or external USB storage devices. To create recovery media, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Factory Recovery Disks.

  • Page 45: Using The Rescue And Recovery Workspace

    1. From the Windows desktop, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Enhanced Backup and Restore. The Rescue and Recovery program opens. 2. In the Rescue and Recovery main window, click the Launch advanced Rescue and Recovery arrow. 3.

  • Page 46: Creating And Using A Rescue Medium

    2. Repeatedly press and release the F11 key when turning on the computer. When you hear beeps or see a logo screen, release the F11 key. 3. If you have set a Rescue and Recovery password, type your password when prompted. The Rescue and Recovery workspace opens after a short delay.

  • Page 47: Reinstalling Preinstalled Applications And Device Drivers

    • If you have created a rescue medium using a USB optical drive or a USB hard disk drive, use the following instructions to use the rescue medium: 1. Turn on your computer. When the ThinkPad logo is displayed, press F1. The ThinkPad Setup program starts.

  • Page 48: Solving Recovery Problems

    See “Creating and using a recovery media” on page 37. • Change the USB 3.0 Mode to be Disabled from the ThinkPad Setup menu. See “Creating and using a rescue medium” on page 40.

  • Page 49: Using Advanced Startup Options

    Using advanced startup options With advanced startup options, you can change the firmware settings of the computer, change the startup settings of the Windows operating system, start the computer from an external device, or restore the Windows operating system from a system image. To use advanced startup options, do the following: Note: The GUI items of the operating system might change without notice.

  • Page 50: Passwords

    Supervisor password A supervisor password protects the system information stored in the ThinkPad Setup program. The user must enter the supervisor password in order to get access to the ThinkPad Setup program and change the system configuration. Hardware Maintenance Manual...

  • Page 51: How To Remove The Power-On Password

    To remove a user hard disk password that has been forgotten, when the supervisor password and the master hard disk password are known, do the following: 1. Turn on the computer. 2. When the ThinkPad logo is displayed, immediately press F1 to enter the ThinkPad Setup program. 3. Select Security. 4. Select Password.

  • Page 52: Power Management

    8. Press Fn+F10 to save changes and exit the ThinkPad Setup program. The user hard disk password and the master hard disk password have been removed. Power management To reduce power consumption, the computer has three power management modes: screen blank, sleep, and hibernation.

  • Page 53: Symptom-To-Fru Index

    If no numeric code is displayed, check the narrative descriptions of symptoms. If the symptom is not described there, go to “Intermittent problems” on page 51. Note: For a device not supported by diagnostic codes in the ThinkPad notebooks, see the manual for that device.

  • Page 54: Numeric Error Codes

    EFI Variable Block Data was destroyed. 2. Replace the system board. 0271 1. Run ThinkPad Setup to reset the time and date Real-Time Clock Error. Check Date and Time settings. 2. Replace the coin-cell battery and run the ThinkPad Setup program to reset the time and date.

  • Page 55: Error Messages

    Table 2. Numeric error codes (continued) Symptom or error (beeps, if any) FRU or action, in sequence 2100 1. Reseat the hard disk drive. Detection error on HDD0 (Main HDD) 2. Replace the main hard disk drive. 3. Replace the system board. 2101 1.

  • Page 56: Beep Symptoms

    However, if the LCD has three or more visible defective pixels, it will be deemed as defective by Lenovo and it should be replaced. Notes: • This policy applies to all ThinkPad Notebooks purchased on 1 January, 2008 or later. • Lenovo will not provide warranty replacement if the LCD is within specifications because we cannot guarantee that any replacement LCD will have zero pixel defects.

  • Page 57: Intermittent Problems

    1. Turn off the computer. 2. Visually check each FRU for damage. Replace any damaged FRU. 3. Remove or disconnect all of the following devices: a. Non-ThinkPad devices b. Devices attached to the dock c. Printer, mouse, and other external devices d.
  • Page 58 Hardware Maintenance Manual...

  • Page 59: Chapter 5. Status Indicators

    Chapter 5. Status indicators This chapter introduces the status indicators of the computer. Table 7. Status indicators Indicator Description Speaker-mute indicator On: The speakers are muted. Microphone-mute On: The microphones are muted. indicator Camera-status indicator On: The camera is in use. ©...
  • Page 60 Table 7. Status indicators (continued) Indicator Description Blinks for three times: The computer is initially connected to power. System-status indicators On: The computer is on (in normal mode). Off: The computer is off or in hibernation mode. Blinks slowly: The computer is in sleep mode. Blinks fast: The computer is entering hibernation mode.

  • Page 61: Chapter 6. Special Keys

    1. Go to Control Panel. Change the view of Control Panel from Category to Large icons or Small icons. 2. Click Keyboard. In the Keyboard Properties window, click the Fn and function keys or ThinkPad F1–F12 keys tab. 3. Select the options of your preference. Press Fn+Esc to enable or disable the Fn Lock function.
  • Page 62 Table 8. Special keys (continued) Special key Description Launches the calculator. Locks the operating system. Opens the default browser. Opens Computer. Fn+B Has the same function as the Break key on a conventional keyboard. Fn+K Has the same function as the ScrLK key on a conventional keyboard. Fn+P Has the same function as the Pause key on a conventional keyboard.

  • Page 63: Chapter 7. Locations

    Chapter 7. Locations This chapter introduces the locations of the hardware components on your computer. Locating computer controls, connectors, and indicators This topic introduces the locations of the computer controls, connectors, and indicators. Front view for models with a 2D camera Note: Depending on the model, your computer might look different from the following illustration.

  • Page 64: Front View For Models With A 3D Camera

    Front view for models with a 3D camera 3D camera Infrared camera Color camera Infrared laser projector Microphones Power button ac power connector Lenovo OneLink connector USB 3.0 connector Optical drive or optical-drive bay bezel Audio connector System-status indicator Fingerprint reader (available on some models) Trackpad TrackPoint buttons : For the description of the system-status indicator, see Chapter 5 “Status indicators”...

  • Page 65: Rear View

    Rear view System-status indicator Always On USB 3.0 connector USB 3.0 connector High-Definition Multimedia Interface (HDMI™) connector Video graphics array (VGA) connector Ethernet connector Fan louvers Security-lock slot : For the description of the system-status indicator, see Chapter 5 “Status indicators” on page 53. Bottom view Small bottom cover Battery latches...
  • Page 66 CRU within thirty (30) days of your receipt of the replacement CRU. See your Lenovo Limited Warranty documentation for full details. ThinkPad computers contain the following types of CRUs: – Self-service CRUs: These CRUs unplug or are held by no more than two screws. Examples of these types of CRUs include the ac power adapter, power cord, battery, and hard disk drive or solid-state drive.

  • Page 67: Major Frus And Crus

    Major FRUs and CRUs Chapter 7 Locations...
  • Page 68 Table 9. Major FRUs and CRUs FRU description Self-service CRU Optional-service CRU LCD unit Keyboard bezel assembly Coin-cell battery Battery pack Speaker assembly Lenovo-OneLink-connector cover dc-in/USB-connector board with cable Optical-drive bay bezel Optical drive Optical drive bracket Small bottom cover Large bottom cover Audio connector card with cable Hard disk drive or solid-state drive bracket...

  • Page 69: Lcd Frus And Crus

    LCD FRUs and CRUs For models with a 2D camera Table 10. LCD FRUs and CRUs for models with a 2D camera FRU description Self-service CRU Optional-service CRU LCD bezel LCD hinges Wireless-LAN antenna assembly Chapter 7 Locations...
  • Page 70 Table 10. LCD FRUs and CRUs for models with a 2D camera (continued) FRU description Self-service CRU Optional-service CRU Camera/microphone module LCD cover kit LCD cables LCD panel For models with a 3D camera Hardware Maintenance Manual...

  • Page 71: Miscellaneous Kits And Other Frus

    Table 11. LCD FRUs and CRUs for models with a 3D camera FRU description Self-service CRU Optional-service CRU LCD bezel LCD hinges Wireless-LAN antenna assembly Camera module Microphone module LCD cover kit LCD cables LCD panel Miscellaneous kits and other FRUs Table 12.
  • Page 72 Hardware Maintenance Manual...

  • Page 73: Chapter 8. Fru Replacement Notices

    This chapter presents notices related to removing and replacing parts. Read this chapter carefully before replacing any FRU. Screw notices Loose screws can cause a reliability problem. In the ThinkPad notebook computer, this problem is addressed with special nylon-coated screws that have the following characteristics: • They maintain tight connections.

  • Page 74: Retaining Serial Numbers

    4. When the logo is displayed, press Esc. The ThinkPad Config Information Update Utility interface is displayed. 5. Type 1 under Enter the action desired, then press Enter. The ThinkPad Serial Number Update Utility for Asset ID screen is displayed.

  • Page 75: Retaining The Uuid

    2. When the logo is displayed, press Esc. The ThinkPad Config Information Update Utility interface is displayed. 3. Type 1 under Enter the action desired, then press Enter. The ThinkPad Serial Number Update Utility for Asset ID screen is displayed.
  • Page 76 Hardware Maintenance Manual...

  • Page 77: Chapter 9. Removing Or Replacing A Fru

    Chapter 9. Removing or replacing a FRU This chapter provides instructions on how to remove or replace a FRU. CRU statement for customers: You can resolve some problems with your product with a replacement part you can install yourself, called a “Customer Replaceable Unit”...

  • Page 78: 1010 Lenovo-Onelink-Connector Cover

    1010 Lenovo-OneLink-connector cover Removal steps of the Lenovo-OneLink-connector cover Notes: • Depending on the model, your computer might look different from the illustration above. • Ensure that you reattach the connector cover to the Lenovo OneLink connector after finishing the servicing. 1020 Battery pack Important notice for replacing a battery pack Attention: Lenovo has no responsibility for the performance or safety of unauthorized batteries, and provides no...

  • Page 79: 1030 Large Bottom Cover

    Unlock the battery pack latch . Hold the battery pack lock lever in the unlocked position and remove the battery pack When installing: Install the battery pack into the slot. Ensure that the battery pack latch is in the locked position.

  • Page 80: 1040 Small Bottom Cover

    When installing: Attach the large bottom cover as shown in the following illustration. 1040 Small bottom cover For access, remove this FRU: • “1020 Battery pack” on page 72 Removal steps of the small bottom cover Loosen the screw and then remove the small bottom cover Hardware Maintenance Manual...

  • Page 81: 1050 Optical Drive Or Optical-Drive Bay Bezel

    When installing: Attach the small bottom cover as shown in the following illustration. 1050 Optical drive or optical-drive bay bezel For access, remove these FRUs in order: • “1020 Battery pack” on page 72 • “1030 Large bottom cover” on page 73 Removal steps of the optical drive or optical-drive bay bezel Step Screw (quantity)

  • Page 82: 1060 Memory Module

    Removal steps of the optical drive bracket Step Screw (quantity) Color Torque M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm (1.85 kgf-cm) 1060 Memory module For access, remove these FRUs in order: • “1020 Battery pack” on page 72 •...

  • Page 83: 1070 Hard Disk Drive Assembly Or Solid-State Drive Assembly

    Removal steps of the memory module When installing: Insert the notched end of the memory module into the slot at an angle of about 20 degrees. Press the memory module firmly, and pivot it downwards until it snaps into place. Ensure that the memory module is firmly installed in the slot and does not move easily.
  • Page 84 Removal steps of the hard disk drive assembly or solid-state drive assembly Torque Step Screw (quantity) Color M2 × 4 mm, wafer-head, nylon-coated (4) Silver 0.181 Nm (1.85 kgf-cm) Hardware Maintenance Manual...

  • Page 85: 1080 Wireless Lan Card

    Removal steps of the hard disk drive or solid-state drive bracket Step Screw (quantity) Color Torque 0.294 Nm M3 × 3 mm, flat-head, nylon-coated (4) Silver (3.0 kgf-cm) When installing: Ensure that the hard disk drive assembly or solid-state drive assembly is attached firmly. 1080 Wireless LAN card For access, remove these FRUs in order: •...

  • Page 86: Step Screw (Quantity)

    Removal steps of the wireless LAN card In step , unplug the connectors by using the antenna RF connector removal tool or pick the connectors with your fingers and gently unplug them as shown. Torque Step Screw (quantity) Color M2 × 3 mm, wafer-head, nylon-coated (1) Black 0.181 Nm (1.85 kgf-cm)

  • Page 87: 1090 Coin-Cell Battery

    When installing: Plug the gray cable into the main connector, and the black cable into the auxiliary connector on the card. 1090 Coin-cell battery For access, remove these FRUs in order: • “1020 Battery pack” on page 72 • “1030 Large bottom cover” on page 73 •...

  • Page 88: M3 × 3 Mm, Flat-Head, Nylon-Coated

    Step Screw (quantity) Color Torque M2 × 8 mm, flat-head, nylon-coated (3) Black 0.181 Nm (1.85 kgf-cm) Hardware Maintenance Manual...

  • Page 89: 1120 Keyboard Bezel Assembly

    When installing: Ensure that the connector is attached firmly. 1120 Keyboard bezel assembly For access, remove these FRUs in order: • “1020 Battery pack” on page 72 • “1030 Large bottom cover” on page 73 • “1050 Optical drive or optical-drive bay bezel” on page 75 •...

  • Page 90: Color

    Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 8 mm, wafer-head, nylon-coated (15) (1.85 kgf-cm) M2 × 3 mm, wafer-head, nylon-coated (6) Black 0.181 Nm (1.85 kgf-cm) Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 5 mm, wafer-head, nylon-coated (4) (1.85 kgf-cm) Hardware Maintenance Manual...
  • Page 91 When installing: Ensure that the connectors are attached firmly to the system board. In step , release the keyboard bezel assembly from the frame using a plastic pry tool. When installing: Ensure that all the latches are attached firmly. Chapter 9 Removing or replacing a FRU...

  • Page 92: 1130 System Board And Thermal Fan

    1130 System board and thermal fan Important notices for handling the system board: When handling the system board, read the following: • The system board has an accelerometer, which can be broken when several thousands of G-forces are applied. Note: Dropping a system board from a height of as little as 6 inches so that it falls flat on a hard bench can subject the accelerometer to as much as 6000 G's of shock.
  • Page 93 For models with a discrete thermal module Accelerated Processing Unit (APU) Graphics Processing Unit (GPU) For models with an integrated thermal module Accelerated Processing Unit (APU) ThinkPad E560 For models with a discrete thermal module Microprocessor Graphics Processing Unit (GPU) Chapter 9...
  • Page 94 For models with an integrated thermal module Microprocessor Removal steps of the system board Hardware Maintenance Manual...
  • Page 95 Torque Step Screw (quantity) Color M2 × 5 mm, flat-head, nylon-coated (4) Black 0.181 Nm (1.85 kgf-cm) When installing: Ensure that the connectors are attached firmly. Removal steps of the thermal fan Chapter 9 Removing or replacing a FRU...
  • Page 96 When installing: • Ensure that the connector is attached firmly. • Do not press the top of the fan cover and the fan hub. • Before you attach the fan assembly to the computer, apply thermal grease, at an amount of 0.2 grams, on the part marked as shown in the following illustrations.

  • Page 97: 1140 Dc-In/Usb-Connector Board With Cable

    For models with an integrated thermal pipe 1140 dc-in/USB-connector board with cable For access, remove these FRUs in order: • “1020 Battery pack” on page 72 • “1030 Large bottom cover” on page 73 • “1050 Optical drive or optical-drive bay bezel” on page 75 •...

  • Page 98: 1150 Audio Connector Card With Cable

    When installing: Ensure that the connector is attached firmly to the system board. Torque Step Screw (quantity) Color M2 × 5 mm, wafer-head, nylon-coated (1) Black 0.181 Nm (1.85 kgf-cm) 1150 Audio connector card with cable For access, remove these FRUs in order: •...

  • Page 99: 1160 Speaker Assembly

    Removal steps of the audio connector card with cable Note: The system board of the computer that you are servicing might be different from the one in the following illustrations. Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 5 mm, wafer-head, nylon-coated (1) (1.85 kgf-cm) 1160 Speaker assembly For access, remove these FRUs in order:...

  • Page 100: 1170 Lcd Unit

    Removal steps of the speaker assembly Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 2.4 mm, wafer-head, nylon-coated, big head (4) (1.85 kgf-cm) Cable routing: When you install the speaker assembly, route the cables as shown in the following illustration. 1170 LCD unit For access, remove these FRUs in order: •...
  • Page 101 • “1040 Small bottom cover” on page 74 • “1050 Optical drive or optical-drive bay bezel” on page 75 • “1070 Hard disk drive assembly or solid-state drive assembly” on page 77 • “1080 Wireless LAN card” on page 79 •...
  • Page 102 In step , release the cables from the cable guides. Hardware Maintenance Manual...

  • Page 103: 1180 Base Cover Assembly

    Step Screw (quantity) Color Torque M 2.5 × 5 mm, wafer-head, nylon-coated (4) Black 0.294 Nm (3 kgf-cm) 1180 Base cover assembly For access, remove these FRUs in order: • “1010 Lenovo-OneLink-connector cover” on page 72 • “1020 Battery pack” on page 72 •...
  • Page 104 • “1110 Keyboard” on page 81 • “1120 Keyboard bezel assembly” on page 83 • “1130 System board and thermal fan” on page 86 • “1140 dc-in/USB-connector board with cable” on page 91 • “1150 Audio connector card with cable” on page 92 •...
  • Page 105 Applying labels to the base cover assembly The new base cover FRU is shipped with a kit containing labels of several kinds. Apply those labels when you replace the base cover. For the labels that are not shipped with the new base cover, peel them from the old base cover, and adhere them to the new one.

  • Page 106: 2010 Lcd Bezel

    2010 LCD bezel For access, remove these FRUs in order: • “1010 Lenovo-OneLink-connector cover” on page 72 • “1020 Battery pack” on page 72 • “1030 Large bottom cover” on page 73 • “1040 Small bottom cover” on page 74 •...
  • Page 107 • “1120 Keyboard bezel assembly” on page 83 • “1130 System board and thermal fan” on page 86 • “1140 dc-in/USB-connector board with cable” on page 91 • “1150 Audio connector card with cable” on page 92 • “1170 LCD unit” on page 94 •...

  • Page 108: 2030 Lcd Hinges

    2030 LCD hinges For access, remove these FRUs in order: • “1010 Lenovo-OneLink-connector cover” on page 72 • “1020 Battery pack” on page 72 • “1030 Large bottom cover” on page 73 • “1040 Small bottom cover” on page 74 •...

  • Page 109: 2040 Camera/Microphone Module For Models With A 2D Camera

    2040 Camera/microphone module for models with a 2D camera For access, remove these FRUs in order: • “1010 Lenovo-OneLink-connector cover” on page 72 • “1020 Battery pack” on page 72 • “1030 Large bottom cover” on page 73 • “1040 Small bottom cover” on page 74 •...

  • Page 110: 2050 Camera And Microphone Modules For Models With A 3D Camera

    Removal steps of the camera/microphone module When installing: Ensure that the connector is attached firmly. 2050 Camera and microphone modules for models with a 3D camera For access, remove these FRUs in order: • “1010 Lenovo-OneLink-connector cover” on page 72 •...

  • Page 111: 2060 Lcd Cables

    Removal steps of the camera and microphone modules When installing: Ensure that the connector is attached firmly. 2060 LCD cables For access, remove these FRUs in order: • “1010 Lenovo-OneLink-connector cover” on page 72 • “1020 Battery pack” on page 72 •...

  • Page 112: 2070 Wireless Lan Assembly And Lcd Rear Cover

    Removal steps of LCD cables 2070 Wireless LAN assembly and LCD rear cover For access, remove these FRUs in order: • “1010 Lenovo-OneLink-connector cover” on page 72 • “1020 Battery pack” on page 72 • “1030 Large bottom cover” on page 73 •...
  • Page 113 Attention: When you route the cables, ensure that they are not subject to any tension. Tension could cause the cables to be damaged by the cable guides, or a wire to be broken. Antenna locations Wireless-LAN auxiliary antenna (black) Wireless-LAN main antenna (gray) Chapter 9 Removing or replacing a FRU...
  • Page 114 Hardware Maintenance Manual...

  • Page 115: Appendix A. Notices

    Appendix A. Notices Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used.

  • Page 116: Electronic Emission Notices

    The following terms are trademarks of Lenovo in the United States, other countries or both: Lenovo Lenovo logo ThinkPad ThinkPad logo TrackPoint Ultrabay Cortana, Microsoft, Windows, and Windows Server are trademarks of the Microsoft group of companies. Intel is a trademark or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

  • Page 117: Appendix B. Abbreviation And Acronym Table

    Appendix B. Abbreviation and acronym table The following table lists some abbreviations and acronyms which might be used in this manual. Abbreviation Term third generation of mobile telecommunications technology Ball Grid Array BIOS basic input/output system CMOS complementary metal-oxide semiconductor Certificate of Authentication cyclic redundancy check cathode ray tube...
  • Page 118 Abbreviation Term radio frequency RFID radio-frequency identification ring indicator registered jack SATA Serial Advanced Technology Attachment subscriber identity module supervisor password TFTs thin-film transistors UEFI Unified Extensible Firmware Interface Universal Serial Bus UUID universally unique identifier video graphics array VRAM video random-access memory wide area network Hardware Maintenance Manual...
  • Page 120 Part Number: SP40K22695 Printed in China (1P) P/N: SP40K22695 *1PSP40K22695*...
