  • Page 1 WMF COFFEE MACHINES Operating instructions WMF Chocolate Dispenser Series 9410/9420 Edition 6 - Stand 03.08 Item-No. 33 2000 0000...
  • Page 2 You will happy with its advanced technology, long service life, economical price. You will get the most out of your WMF chocolate dispenser by reading through this Operator’s Manual. In your own interest, please follow all safety and cautionary instructions and pay attention to the warning labels placed on the machine.
  • Page 3: Table Of Contents

    8.1 Setting the dispensing quantities....................37 9 Care of the machine........................... 38 9.1 Daily cleaning ..........................38 9.2 Weekly cleaning........................... 40 9.3 General cleaning .......................... 41 10 Error messages and displays ......................42 11 WMF Customer-Service ........................42 12 Warranty claims ..........................43...
  • Page 5: Machine Features And Components

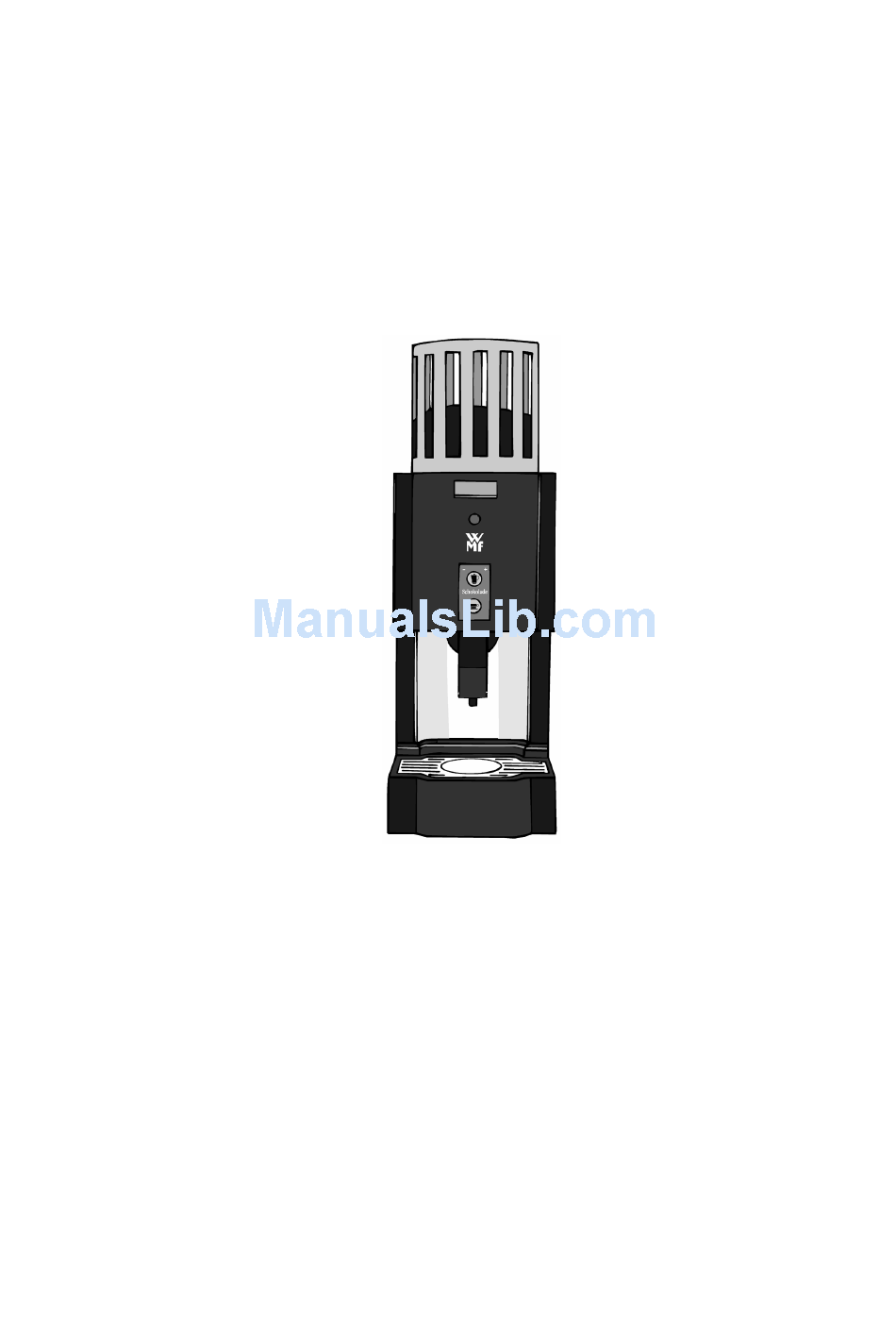

    1 Machine features and components Reservoir Display Waiter lock (optional) Setting buttons (- / +) Product buttons Beverage outlet Drip tray Front door Outlet cap Rinse button Mixing beaker Door lock (optional) ”On/Off“ switch...
  • Page 6: General Description

    At the push of a button a cup or a mug of hot chocolate will be dispensed. 3 Warnings Greatest possible safety is one of the features of WMF products to which we pay very particular attention.
  • Page 7: Safety Instructions

    3. Do not use the machine outdoors. 4. The machine must never be hosed down with a jet of water or steam. The surface may be cleaned with a damp cloth or one of the products from the range of WMF care products. Shutdown 1.
  • Page 8: Technical Data

    This device is subject of the directive on waste electrical and electronic equipment (WEEE/EU directive) and may not be disposed of as domestic waste. 5 Technical data Rated power* 2.2 kW Capacity per hour** 140 cups Hot water capacity, total approx.
  • Page 9: Conditions For Installation And Operation

    The machine operator must arrange for the site preparatory work. This should be carried out by approved contractors in accordance with general and local regulations. WMF customer service technicians are only permitted to connect up the machine to the prepared connections. They are...
  • Page 10: Operation

    Starting the machine Note: The connection and installation of the machine must only be carried out by WMF customer service. WMF customer service sets the dispensing and hot water quantities to the required volumes and trains your operating personnel. Daily starting up...
  • Page 11: Beverage Preparation

    Display: Rinse! Caution! Risk of scalding! Hot water flows out of the beverage outlet 6. Caution! Risk of crushing! Close the front door with care. 6. On completion of rinsing, your machine is ready to READY Pre-Selection I operate. The display shows: „Ready“...
  • Page 12 Depending on ist design, your machine has one or two product buttons Chocolate Two different quantities can thus be prepared. With the swivelling beverage outlet 6, you can fill cups, pots or beakers as required. By pressing button the automatic preparation of drinking chocolate begins.
  • Page 13: Displaying Quantities

    Waiter accounting system (optional) In combination with an accounting system (e.g. WMF HOGATRON), your WMF chocolate dispenser can be fitted with a WMF waiter system. For this, the chocolate dispenser can be equipped with a waiter lock and connected to the accounting unit.
  • Page 14: Switching The Machine Off

    8 Settings Setting the dispensing quantities You can change or set the product and water quantities on your WMF chocolate dispenser. 1. Open the door lock (optional) and lift the front door 2. Switch the machine off using the “On/Off“ switch 13.
  • Page 15: Care Of The Machine

    If your machine has a second product button 5, you can, by pressing button “ “, also change the setting values. The product quantity to be set flashes first (prod:xxx): Choc Prod: Water: 160 “+/-“change flashing value 6. With the “rinse button“ you reach the next setting value.
  • Page 16 Rinsing takes approx. seconds. The display shows: Rinse! Note: Rinsing can be interrupted by opening the front door 8. If your machine is not firmly connected to a drainage, the drip tray can be removed for cleaning and emptying. For this they are simply pulled out at the front.
  • Page 17: Weekly Cleaning

    6. Remove the beverage outlet by turning to the right (bayonet fitting). After thoroughly cleaning the parts (with cleaner) and the underlying whisk (with a damp cloth) the unit is reassembled in reverse order. 7. Close the front door 8. Weekly cleaning Caution! Risk of injury! Only operate the machine with the beverage outlet...
  • Page 18: General Cleaning

    Do not scour with abrasive cleaning powder so that scratches and scuffing do not occur. Order numbers for the WMF care product range: Special Descaling Powder Special cleaner for milk frother Order no. 33 0680 8000 Order no.
  • Page 19: Error Messages And Displays

    Please bear in mind that this is a professional commercial choc dispenser. A machine of this type requires regular maintenance by our WMF Customer Service. The maintenance interval depends on how heavily the machine is used, but maintenance should be carried out at least once a year.
  • Page 20: Warranty Claims

    Any products delivered or any services rendered showing a defect as to quality within the period of limitation shall be, at WMF’s reasonable discretion, repaired or rendered again, if the cause of the defect as to quality had already been present when the risk was passed.
