WMF coffeemachines

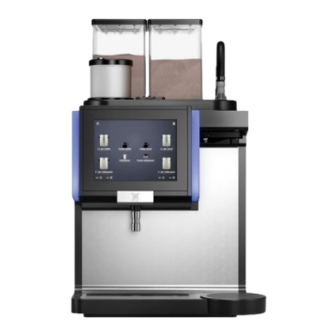

WMF 9000 F planning information
Optional:
Area for counter cut out water,
waste water, electrical connection
8.4 –10.1 kW minimum Ø70
12.4 –14.7 kW minimum Ø80
http://www.wmf-kaffeemaschinen.de/fachplaner
WMF Group GmbH | Eberhardstraße 35 | 73312 Geislingen (Steige)
On site
5x2,5 mm
, length
2
appr. 2.2 m
On site
µ
Optional feet
100 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 F and is the answer not in the manual?

Questions and answers

Summary of Contents for WMF 9000 F

  • Page 1 Area for counter cut out water, waste water, electrical connection 8.4 –10.1 kW minimum Ø70 12.4 –14.7 kW minimum Ø80 On site 5x2,5 mm , length appr. 2.2 m On site http://www.wmf-kaffeemaschinen.de/fachplaner WMF Group GmbH | Eberhardstraße 35 | 73312 Geislingen (Steige)
  • Page 2 For operating, service, and safety reasons the machine should be installed with a clearance Clearance from the building or non-WMF components of not less than 50 mm at the sides and 60 mm at the back. A minimum working space of 800 mm in front of the coffee machine is recommended.
  • Page 3 For connection from below through the counter a cut-out must be made in the hatched area on-site according to drawing (see top view). For drinking water with carbonate hardness above 5°dKH (carbonate hardness), a WMF water filter should be fitted upstream.
  • Page 4 For more information as the instruction manual , safety data sheets and certificates , see: http://www.servicecenter.wmf.de/ All information refers to coffee machines/ equipment as standard version. Individual solutions can differ from the standard version. http://www.wmf-kaffeemaschinen.de/fachplaner WMF Group GmbH | Eberhardstraße 35 | 73312 Geislingen (Steige)
