Summary of Contents for Convair MASTERCOOL

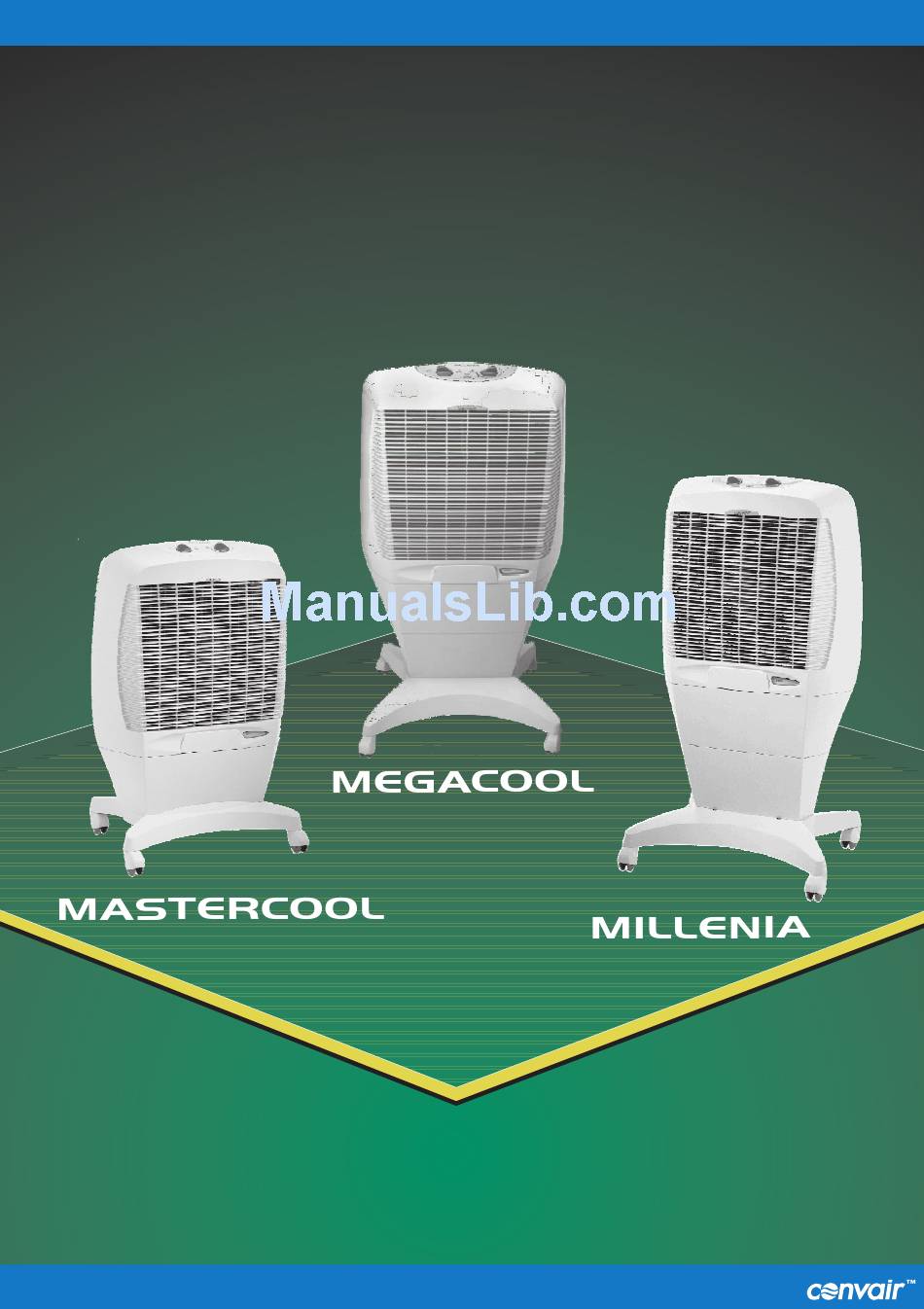

- Page 1 N A T U R A L P O R T A B L E A I R C O N D I T I O N E R S OWNERS INSTRUCTION MANUAL C O O L A I R A N Y W H E R E !
- Page 2 I L L 8 6 3 - A I L L 8 6 3 - A (MIC) MASTERCOOL ILL1222-A Waste electrical products must not be disposed of with household waste. This product should be taken to your local recycling centre for safe treatment.
- Page 3 CONTENTS KEY (Figs 4&5) ASSEMBLY........3-4 Controls Caution - Check Voltage Front grille To assemble the cooler Water filling door Water reservoir DIRECTIONS FOR USE....4-6 Castors How to get the best cooling Water level indicator performance Front pillar (Millenia, Filling with water Megacool) Using the cooler- Low fan speed...
- Page 4 CAUTION! - Check Voltage Before connecting your electrical power cord to a power outlet, check that the cooler voltage is the same as your power supply. The cooler voltage will be stated on the rating label at the rear of the cooler (Fig 6). I L L 8 6 6 - A TO ASSEMBLE THE COOLER Push the four castors into their locating...
- Page 5 MODEL MASTERCOOL ONLY Place the reservoir onto the base and press down to engage the four clips in the base (Fig 10). To remove the cooler from the base, tip it upside down and release the clips in the base. A screwdriver may be necessary.
- Page 6 I L L 8 7 7 - C The cooler is provided with air guide vanes MILLENIA / MASTERCOOL which can be adjusted as required to direct the air flow. Models Millenia and Mastercool are adjusted manually by sliding the levers on the front panel (Fig 17).
- Page 7 AIR DIRECTION CONTROL MEGACOOL Model Megacool has motor driven vanes that are switched on and off by the fan control switch on the control panel (Fig 18). Set the control to the “sweep / fan” speed ILL1436-A setting to operate the sweep vanes (shown).
- Page 8 MAINTENANCE At least once a year at the end of summer it is advisable to do some simple maintenance on your cooler to maintain its high efficiency. This involves cleaning the water system and the Aspen cooling pad. TO DRAIN WATER Drain the water from the cooler by moving ILL879-A the cooler to a drain and removing the drain...
-
Page 9: Troubleshooting
TROUBLESHOOTING CONDITION POSSIBLE CAUSE REMEDY 1. Cooler will not operate 1.1 Power outlet or supply 1.1.1 Switch on power outlet. at first. faulty. 1.1.2 Check power supply. 1.1.3 Check power outlet. 1.2.1 Check that power supply is the same as specified on the rating label. - Page 10 When ordering spare parts, please specify the model / serial number and colour of your cooler.
- Page 11 ILL1432-A 0609 As the policy of this company is one of continuous improvement, all specifications are subject to change without notice.
