SOMFY V400 RTS Installation Instructions Manual

Hide thumbs Also See for V400 RTS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
1 2 3 4

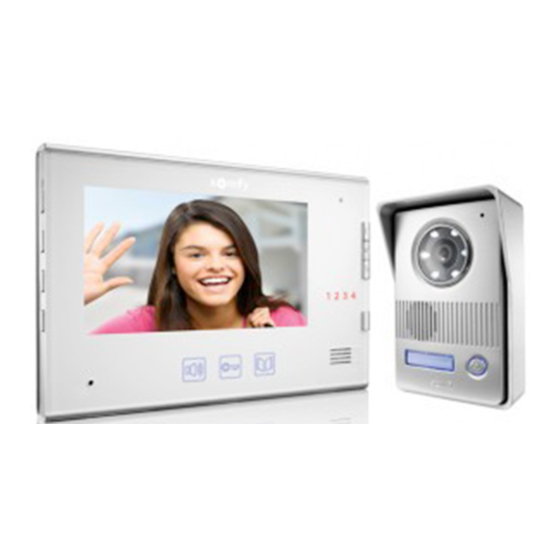

Video door phone - V400 RTS
Installation instructions
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V400 RTS and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY V400 RTS

Summary of Contents for SOMFY V400 RTS

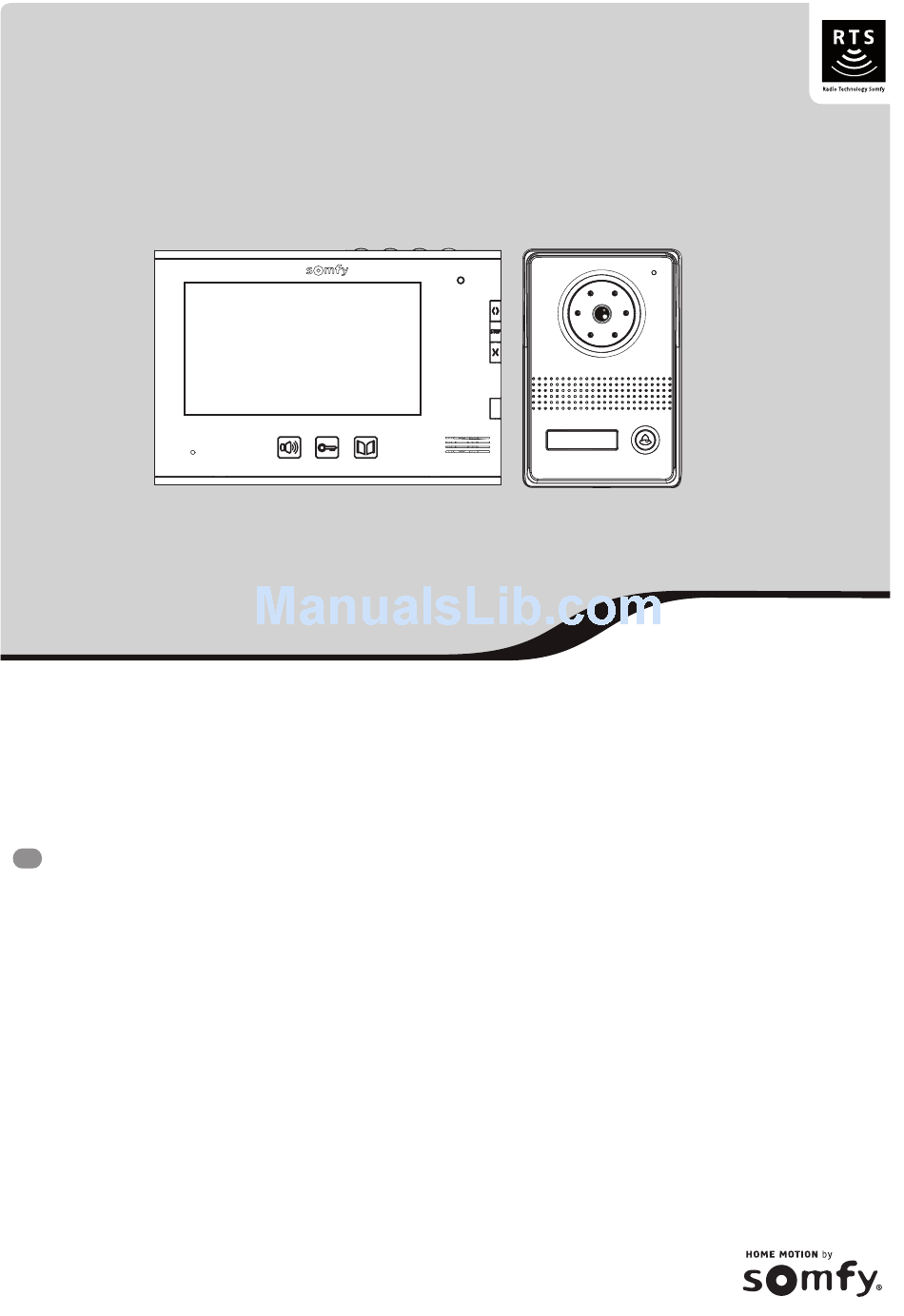

  • Page 1 1 2 3 4 Video door phone - V400 RTS Installation instructions...

  • Page 2: Table Of Contents

    This guide describes the installation of this product. Any installation or use outside the sphere of application specified by Somfy is forbidden. This invalidates the warranty and discharges Somfy of all liability, as does any failure to comply with the instructions given herein.

  • Page 3: Conditions For Use

    Composition of the kit description quantity Indoor monitor Monitor mounting bracket Monitor power plug Door station Rain shield Screws + plugs for mounting the monitor and door station 5 + 5 Torx key Copyright © 2013 Somfy SAS. All rights reserved.

  • Page 4: Product Description

    The indoor monitor is also fitted with an RTS (Radio Technology Somfy) radio transmitter. This wireless control is used to operate a garage door, lighting, roller shutters or even a Somfy gate.

  • Page 5: Dimensions (Mm)

    Used to connect the monitor station to a gate motorisation or an electric door-opener/lock. Speaker volume adjustment button This is used to adjust the volume of the door station speaker. dimensions (mm) 1 2 3 4 (thickness with (thickness with metal bracket) rain shield) Copyright © 2013 Somfy SAS. All rights reserved.

  • Page 6: Standard Installation

    2 monitors = 30 m Note: We recommend that, if possible, the video entry phone cables should not be routed through the same sheath as the electric cables. The cables are not supplied. Copyright © 2013 Somfy SAS. All rights reserved.

  • Page 7: Installing The Monitor

    [4]. Clip the monitor onto its mounting bracket by first positioning the top of the monitor on the station, then the bottom. Note: Position the power plug wires between the mounting bracket and the monitor. monitor To a second monitor (optional) To the door station power plug wires Copyright © 2013 Somfy SAS. All rights reserved.

  • Page 8: Installing The Door Station And Adjusting The Camera's Viewing Angle

    [5]. Install the door station in the rain shield by first positioning the top and then the bottom of the station. [6]. Screw the door station to the rain shield using the torx key. Electric door- monitor cable opener/lock cable gate motorisation cable Copyright © 2013 Somfy SAS. All rights reserved.

  • Page 9: Connecting The Door Station

    Once installation is complete, reconnect the gate motorisation to the power supply. Next connect the monitor power plug to an electrical socket. Important: The power plug must be installed close to the monitor and must be easily accessible. Copyright © 2013 Somfy SAS. All rights reserved.

  • Page 10: Video Entry Phone Settings

    CoNTRollINg Somfy RTS wIRElESS EquIpmENT programming the monitor on a Somfy RTS unit The monitor is equipped with a Somfy Radio Technology (RTS) transmitter. It is only compatible with devices equipped with Somfy Radio Technology (RTS). It is used to control the following Somfy equipment, individually or simultaneously: •...
  • Page 11 1 2 3 4 PROG DEXXO COMPACT RTS DEXXO COMPACT RTS Note: To clear the programming on the video entry phone on a Somfy garage door motorisation, repeat all the steps detailed above. Copyright © 2013 Somfy SAS. All rights reserved.
  • Page 12 2 mn RTS outdoor lighting receiver RTS indoor lighting receiver 1 2 3 4 Note: To clear the video entry phone programming on a Somfy lighting receiver, repeat all the steps detailed above. Copyright © 2013 Somfy SAS. All rights reserved.
  • Page 13 [1]. Identify the original control of the roller shutter, i.e. the remote control or the control point which only controls this roller shutter. Note: - If the original control is lost or broken, and it is the only one to control the roller shutter, contact one of our Somfy advisors.
  • Page 14 PROG < 0,5s 1 2 3 4 CONTROL BOX 3S RTS Note: To clear the video entry phone programming on a Somfy gate motorisation, see the motorisation guide. ELIXO 500 3S RTS < 0,5s 1 2 3 4 Copyright © 2013 Somfy SAS. All rights reserved.

  • Page 15: Technical Data

    3 V type CR2430 Range 200 m (in open space) door station Power supply 14.5 V DC Camera 1/3 CCD 72° Night vision 0.05 LUX visible LEDs Operating temperature -20°C to +55°C Copyright © 2013 Somfy SAS. All rights reserved.
  • Page 16 +60 (0) 3 228 74743 +971 (0) 4 88 32 808 denmark : Somfy Nordic aB denmark +45 65 32 57 93 mexico : Somfy mexico Sa de CV united Kingdom : Somfy lTd +52(0) 55 5576 3421 finland : Somfy Nordic aB finland...
